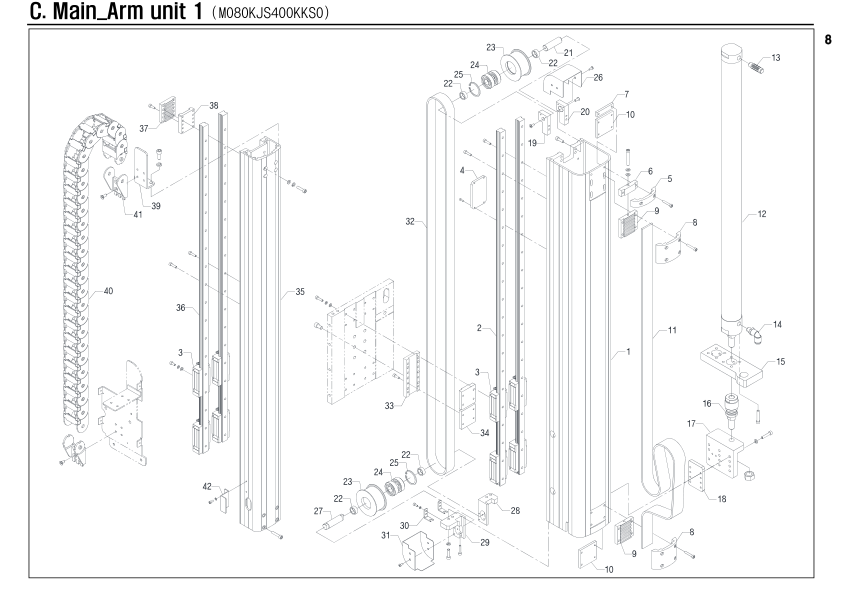

Main_Arm unit

Unit Number: M080KJS400KKS0

Robot: EPIK-800SYCT 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
C-1	M080HJA4006MC0	VER_FILE-1	1
C-2	PLMBSHS20VKZ18	LM block	8
C-3	PLMRSHS201180L	LM rail	2
C-4	M060HFA4048ZZ0	Gripper block	1
C-5	M060HFA4011MC0	Gripper block	1
C-6	M060HFA4012ZZ0	Gripper block	1
C-7	M060HFA4013ZZ0	Nut	1
C-8	M060HFA4008MC0	Gripper block	2
C-9	M060HFA4009MC0	Gripper	2
C-10	M060HFA4010ZZ0	Gripper nut	2
C-11	PBLTA104088888	Timing belt	1690
C-12	PAXA3474508218	CYLINDER	1
C-13	PAXZSILENCER14	Silincer	1
C-14	PAXFEL12140888	Fitting	1
C-15	M060HFA4026MC0	Block	1
C-16	PAXFKM16X15888	Ploating joint	1
C-17	M060HFA4027ZZ0	Cylinder block	1
C-18	M060HFA4028ZZ0	Nut	1
C-19	M060HFA4020ZZ0	Bearing block	1
C-20	M060HFA4019ZZ0	Bearing block	1
C-21	M060HFA4021ZZ0	Shaft	1
C-22	M060HFA4036ZZ0	Collar	4
C-23	M060HFA4025ZZ0	Roller	2
C-24	PBRA6203ZZ8888	Bearing	4
C-25	PRGH040H888888	Snap ring	2
C-26	M060HFA4044ZZ0	Cover	1
C-27	M060HFA4024ZZ0	Shaft	1
C-28	M060HFA4023ZZ0	Pulley block	1
C-29	M060HFA4022ZZ0	Pulley block	1
C-30	M060HFA4065ZZ0	Bracket	2
C-31	M060HFA4045ZZ0	Cover	1
C-32	PBLTA103088888	Timing belt	2770
C-33	M060HFA4016ZZ0	Gripper block	1
C-34	M060HFA4046MC0	Gripper	2
C-35	M080HJS4007MC0	VER_FILE-2	1
C-36	PLMRSHS201090L	LM rail	2
C-37	M060HFA4014MC0	Gripper	1
C-38	M060HFA4017ZZ0	Gripper block	1
C-39	M060HFA4047ZZ0	C/V_BRACKET	1
C-40	PCVE4501300088	Cableveyor end bracket	1
C-41	PCVH4501B07526	C/V_LINK	26
C-42	M060HFA4040ZZ0	Plate	1
C-43	M060HFA4001ZZ0	Plate A	1
C-44	M060HFA4002ZZ0	Plate C	1
C-45	M060HFA4003ZZ0	Plate	1
C-46	M060HFA4005ZZ0	Plate	1
C-47	M060HFA4015ZZ0	Shaft	4
C-48	PRGS020S888888	Snap ring	6
C-49	PRGH047H888888	Snap ring	3
C-50	PBRA6204ZZ8888	Bearing	9
C-51	M060HFA4033ZZ0	Roller	3
C-52	M060HFA4034ZZ0	Tention shaft	1
C-53	M060HFA4035ZZ0	Plate	1
C-54	PRESSFS9DPB088	Reducer	1
C-55	PMTBEMJ08APB24	Servo motor	1
C-56	M060HFA4032ZZ0	Timing pully	1
C-57	PPLMMA24428888	Power lock	1
C-58	M040HFA4024ZZ0	Bracket	1
C-59	M060FFA4030ZZ0	Block	1
C-60	PAXAIDF32AS25T	Cylinder	1
C-61	PAXFEL04180888	Fitting	1
C-62	PSSRHYP18S5NAF	Sensor	1
C-63	M035HAA4032ZZ0	Cylinder bracket	1
C-64	M035HAA4031MC0	Belt gripper	1
C-65	M015MAB4040ZZ0	Bracket	1
C-66	PSSMRS52SH8888	Magnet sensor	1
C-67	M060HFA4018ZZ0	Bracket	1
C-68	M035HAA4045ZZ0	Bracket	1
C-69	M060HFA4039MD0	Cover	1
C-70	M060HFA4055ZZ0	Cover plate	1
C-71	M060HFA4042MD0	Cover	1
