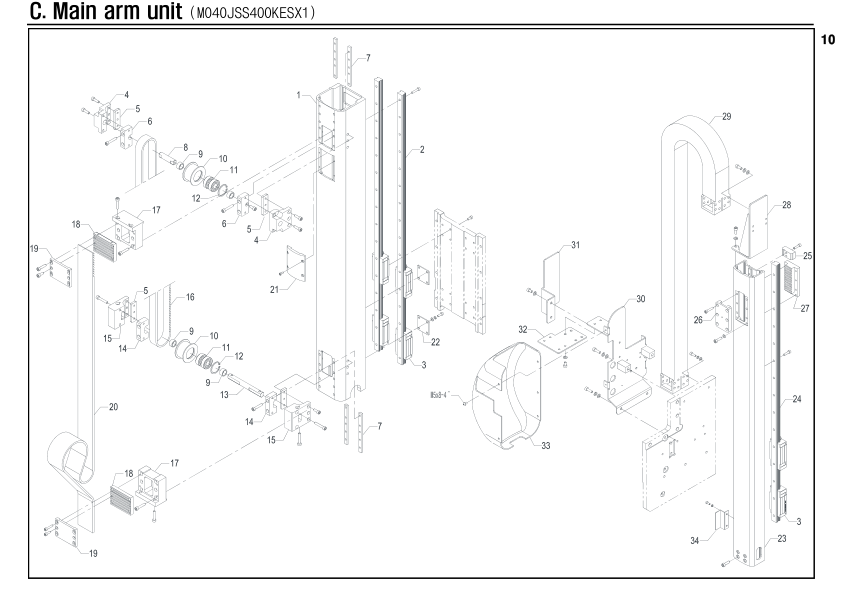

Main arm unit

Unit Number: M040JSS400KESX1

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity
C-1	M030KHS4006MCX1	File	1
C-2	PLMRSHS200940L	LM rail	2
C-3	PLMBSHS20VKZ18	LM block	6
C-4	M030SBB4058ZZ0	Block	2
C-5	M035HAA4022ZZ0	Plate	4
C-6	M030SBB4050ZZ0	Holder	2
C-7	M030SBB4023ZZ0	Nut	4
C-8	M030SBB4012ZZ0	Shaft	1
C-9	M030SBB4018ZZ0	Collar	4
C-10	M030SBB4021ZZ0	Roller	2
C-11	PBRA6202ZZ8888	Bearing	4
C-12	PRGH035H888888	Snap ring	2
C-13	M040JSS4008ZZ0	Shaft	1
C-14	M030SBB4051ZZ0	Holder	2
C-15	M040JSS4057ZZ0	Block	2
C-16	PBLTU8M2588888	Timing belt	1752
C-17	M030SBB4044ZZ0	Block	2
C-18	M030SBB4033MC0	Belt gripper	2
C-19	M030SBB4016ZZ0	Gripper block	2
C-20	PBLTU8M6088888	Timing belt	1432
C-21	M080QLS4048MC0	Gripper block	1
C-22	M030SBB4059ZZ0	Plate	2
C-23	M040JSS4007MCX1	File	1
C-24	PLMRSHS200895L	LM rail	1
C-25	M030KHS4061ZZ0	Block	1
C-26	M080QLS4017ZZ0	Gripper block	1
C-27	M080QLS4014MC0	Belt gripper	1
C-28	M040YFS4060ZZ0	Bracket	1
C-29	PCVH3503507531	Cableveyor	1
C-30	M080QLS4037ZZ0	Cableveyor bracket	1
C-31	M080QLS4045ZZ0	Bracket	1
C-32	M040YFS4037ZZ0	Plate	1
C-33	M040HFA4039MD0	Cover	1
C-34	M030SBB4040ZZ0	Plate	1
C-35	M030SBB4002ZZ0	Plate	1
C-36	M080QLS4003ZZXA	Plate	1
C-37	M030KHS4001ZZXA	Plate	1
C-38	M030SBB4004MC0	Belt gripper	1
C-39	M030SBB4042ZZ0	Gripper block	1
C-40	M040JSS4009ZZ0	Shaft	2
C-41	PRGS020S888888	Snap ring	4
C-42	M030SBC4011ZZ0	Roller	2
C-43	PBRA6904ZZ8888	Bearing	10
C-44	PRGH037H888888	Snap ring	2
C-45	M030SBB4009ZZ0	Shaft	1
C-46	PSSRHYP18S5NAF	Sensor	1
C-47	M080QLS4013ZZ0	Housing	1
C-48	PBRA6913ZZ8888	Bearing	1
C-49	PPLMMA32508888	Power lock	1
C-50	M030SBB4045ZZ0	Timing pulley	1
C-51	M080QLS4062ZZXA	Collar	1
C-52	PRESB11505PD40	Reducer	1
C-53	PMTBMSME402GCH	Servo motor	1
C-54	M080QLS4032ZZ0	Belt gripper	1
C-55	M035HAA4031MC0	Belt gripper	1
C-56	PSSMRS52SH8888	Magnet sensor	1
C-57	M080QLS4040ZZ0	Bracket	1
C-58	M030SBB4053ZZ0	Bolt	1
C-59	M030SBB4005ZZ0	Plate	1
C-60	M030SBB4056ZZ0	Plate	1
C-61	M030SBB4052ZZ0	Bracket	4
C-62	M030SBB4055ZZ0	Plate	1
C-63	M030SBB4042MD0	Cover	1
C-1		Servo motor	1
C-53		Servo motor	1
