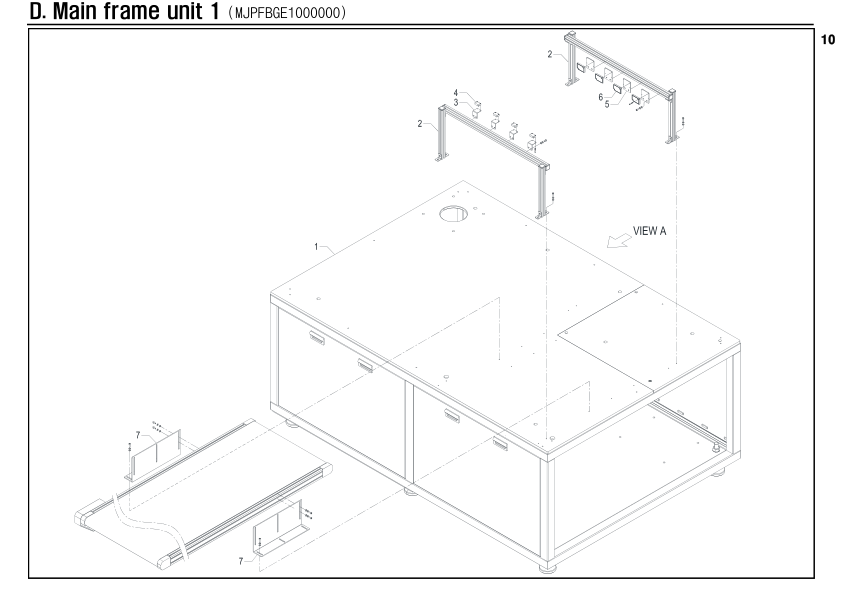

Main frame unit
Unit Number: MJPFBGE1000000
Robot: SRPF-300 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| D-1 | MJPFBEE1100ZZ0 | Frame | 1 | |
| D-2 | MJPFCBA1600000 | Guide | 2 | |
| D-3 | MJPFCBA1603ZZ0 | Bracket | 4 | |
| D-4 | PSSRE3ZB628888 | Sensor | 4 | |
| D-5 | MJPFCBA1604ZZ0 | Bracket | 4 | |
| D-6 | PSSRE39R1S8888 | Sensor mirror | 4 | |
| D-7 | MJPFBEE1126ZZ0 | Bracket | 2 | |
| D-8 | PAXVHRB900MH88 | Pump | 1 | |
| D-9 | PAXBDU21228888 | Busing | 2 | |
| D-10 | PAXFDOUBLPT288 | Nipple | 2 | |
| D-11 | PAXFSERVICT288 | Fitting | 1 | |
| D-12 | PAXBDU32128888 | Busing | 1 | |
| D-13 | PAXVRELIEFV388 | Valve | 1 | |
| D-14 | PAXFNHOSE28888 | Fitting | 4 | |
| D-15 | MJPFBDA1018MC0 | Pad | 4 | |
| D-16 | PAXVST8511201C | Filter | 1 | |
| D-17 | PAXZVG60A14888 | Gauge | 1 | |
| D-18 | MJPFCBA1020ZZ0 | Plate | 1 | |
| D-19 | MJPFCBA1400000 | Filter regulator | 1 | |
| D-20 | MJPFBAA1008ZZ0 | Block | 1 | |
| D-21 | PAXFSTELLPT348 | Fitting | 2 | |
| D-22 | PAXFSERVICEL34 | Elbow | 4 | |
| D-23 | PAXFNHOSE34888 | Fitting | 4 | |
| D-24 | MJPFBAA1320MC0 | Solenoid valve unit | 1 | |
| D-25 | MJPFCBA1019ZZ0 | Plate | 1 | |
| D-26 | MJPFCBA1018ZZ0 | Piping manifold | 1 | |
| D-27 | PAXFSERVICL288 | Elbow | 1 | |
| D-28 | PAXBREDU141888 | Fitting | 3 | |
| D-29 | PAXFDOUBLPT188 | Fitting | 2 | |
| D-30 | PAXBDU11142888 | Fitting | 2 | |
| D-31 | PAXXVP3165V105 | Valve | 2 | |
| D-32 | PAXZSILENCER14 | Silincer | 2 | |
| D-33 | PAXBREDU134888 | Reducer | 2 | |
| D-34 | PAXFEL12140888 | Fitting | 2 | |
| D-35 | PAXFEL08140888 | Fitting | 2 |
