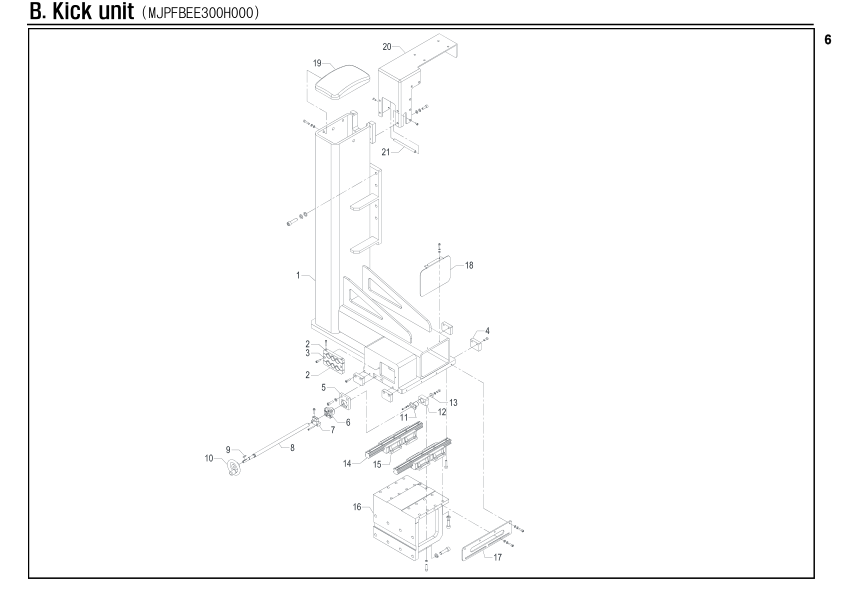

Kick unit
Unit Number: MJPFBEE300H000
Robot: SRPF-300 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| B-1 | MJPFBEE3001PW0 | Support | 1 | |
| B-2 | MJPFCBA3008ZZ0 | Bracket | 2 | |
| B-3 | MJPFCBA3007ZZ0 | Stopper | 1 | |
| B-4 | MJPFCBA4005ZZ0 | Stopper | 4 | |
| B-5 | MJPFCBA3011ZZ0 | Bracket | 1 | |
| B-6 | PLMUBRWN128888 | Support | 1 | |
| B-7 | MS11XVA2015ZZ0 | Block | 1 | |
| B-8 | MJPFCBA3010ZZ0 | TM screw | 1 | |
| B-9 | MS11XVA2010ZZ0 | Key | 1 | |
| B-10 | PMXDPHLK801088 | Handle | 1 | |
| B-11 | PLMTMTSPNR1688 | TM nut | 1 | |
| B-12 | MJPFCBA3009ZZ0 | Joint | 1 | |
| B-13 | MS11XVA2012ZZ0 | Collar | 1 | |
| B-14 | PMLRHGR30R0360 | LM rail | 2 | |
| B-15 | PLMBQHW30CC888 | LM block | 4 | |
| B-16 | MJPFCBA4001ZZ0 | Support | 1 | |
| B-17 | MJPFCBA3012ZZ0 | Stopper | 1 | |
| B-18 | MJPFCBA3013ZZ0 | Cover | 1 | |
| B-19 | M040HFA1011PW0 | Cover | 1 | |
| B-20 | MJPFBBA3003ZZ0 | Cover | 1 | |
| B-21 | MJPFBAA3004ZZ0 | Shaft | 5 |
