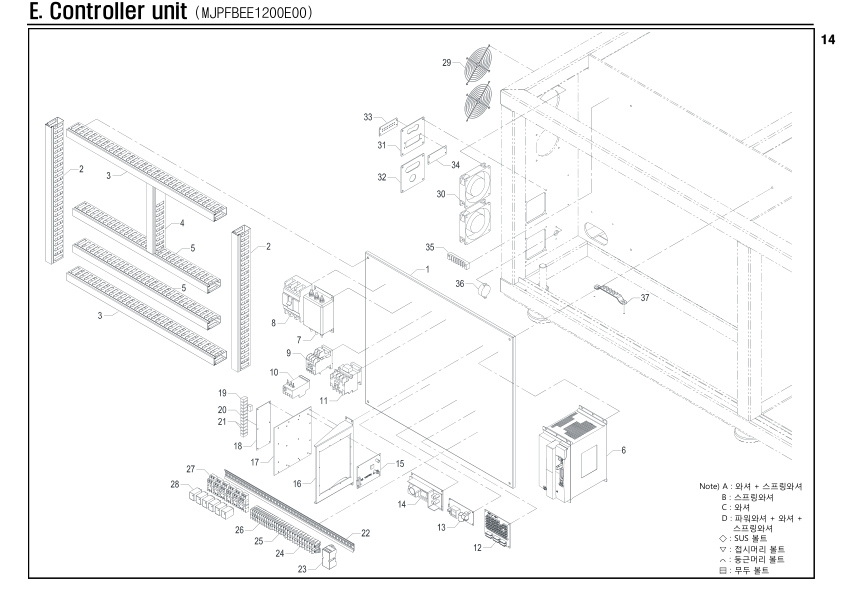

Controller unit

Unit Number: MJPFBEE1200E00

Robot: SRPF-300 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
E-1	MJPFBBA1201ZZ0	Plate	1
E-2	MJPFBBA1221MC0	Duct-30	2
E-3	MJPFBBA1222MC0	Duct-30	2
E-4	MJPFBBA1225MC0	Duct-30	1
E-5	MJPFBBA1223MC0	Duct-30	2
E-6	PMTXMFDHTB3A28	Servo drive	1
E-7	PFTEFTNE20HCM8	Noise filter	1
E-8	PNSCABS33B408	Circuit brake	1
E-9	PNSEGMC2288888	Contactor	1
E-10	PEXGTH22110A88	Relay	1
E-11	PNSEGMC4088888	Contactor	1
E-12	PBDCIFVECT8888	Board	1
E-13	PSMAHN36S24NCE	SMPS	1
E-14	PSMASMPS000188	SMPS	1
E-15	PBDDVECT1X8888	Board	1
E-16	MN20KFA9004ZZ0	Plate	1
E-17	PBDDSC88888888	Board	1
E-18	PBDDIL88888888	Board	1
E-19	PRL1174PFDUS240	Relay	10
E-20	PRL2014PUS2488	Relay	1
E-21	PRL2214PUS2488	Relay	2
E-22	MJPFBBA1211MC0	Terminal channel	1
E-23	PRLKRXTG048888	R elay	1
E-24	PTLD0600035558	Terminal	12
E-25	PTLD0600025558	Terminal	6
E-26	PTLD0600015288	Terminal	12
E-27	PRLKLY28888888	Relay socket	6
E-28	PRLALY2N1DC248	Relay	6
E-29	PEXFS105105888	Fan cover	2
E-30	PEXFSJ1238HA28	Fan	2
E-31	MJPFBBA1014ZZ0	Plate	1
E-32	MJPFBAA1003ZZ0	Plate	1
E-33	M020HFA9023MC0	Plate	1
E-34	PBDCLEDVECT888	Board	1
E-35	PTLA07P8888888	Terminal	1
E-36	PEXZBUZZER8888	Buzzer	1
E-37	PEXELEBAR14588	Earth Bar	1
