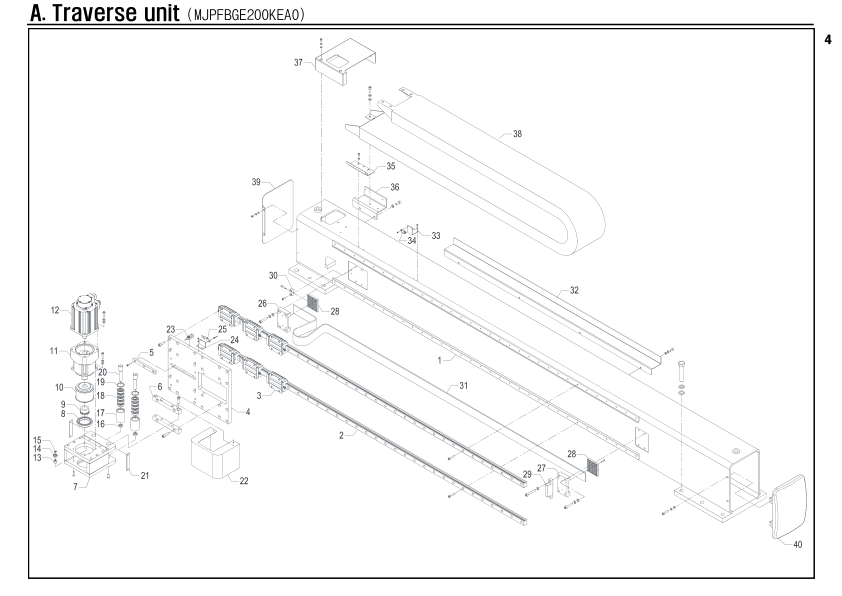

Traverse unit
Unit Number: MJPFBGE200KEA0
Robot: SRPF-300 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| A-1 | MJPFBGE2001PW0 | Body | 1 | |
| A-2 | PLMRSHS352520L | LM rail | 2 | |
| A-3 | PLMBSHS35CKZ18 | LM block | 6 | |
| A-4 | MJPFBBA2002ZZ0 | LM base | 1 | |
| A-5 | MJPFBAA2003ZZ0 | Joint key | 1 | |
| A-6 | MJPFBAA2106ZZ0 | Block | 2 | |
| A-7 | MJPFBBA2102ZZ0 | Block | 1 | |
| A-8 | PBRA6913ZZ8888 | Bearing | 1 | |
| A-9 | PPLMMA32508888 | Power lock | 1 | |
| A-10 | MJPFBBA2101ZZ0 | Timing pulley | 1 | |
| A-11 | PRESAB15092PD40 | Reducer | 1 | |
| A-12 | PMTBMSME402GCG | Servo motor | 1 | |
| A-13 | M130MAA4030ZZ0 | Guide shaft | 1 | |
| A-14 | PBRA6000ZZ8888 | Bearing | 1 | |
| A-15 | PRGS010S888888 | Snap ring | 1 | |
| A-16 | MJPFBBA2105ZZ0 | Collar | 2 | |
| A-17 | MJPFBAA2104ZZ0 | Roller | 2 | |
| A-18 | PBRA6203ZZ8888 | Bearing | 10 | |
| A-19 | PRGH040H888888 | Snap ring | 2 | |
| A-20 | MJPFBAA2103ZZ0 | Shaft | 2 | |
| A-21 | MJPFBAA2107ZZ0 | Plate | 2 | |
| A-22 | MJPFBAA2017ZZ0 | Cover | 1 | |
| A-23 | PSSRHYP18S5NAF | Sensor | 1 | |
| A-24 | M015MAB1017MC0 | Bracket | 1 | |
| A-25 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| A-26 | MJPFBBA2004ZZ0 | Gripper block | 1 | |
| A-27 | MJPFBBA2007ZZ0 | Gripper block | 1 | |
| A-28 | MJPFBBA2005ZZ0 | Gripper | 2 | |
| A-29 | MJPFBAA2009ZZ0 | Stopper | 1 | |
| A-30 | MJPFBAA2006ZZ0 | Tension block | 1 | |
| A-31 | PBLTU8M6088888 | Timing belt | 2808 | |
| A-32 | MJPFBAA2010ZZ0 | Cableveyor plate | 1 | |
| A-33 | M080HFA1018MC0 | Bracket | 1 | |
| A-34 | PSSMRS52SHC888 | Magnet | 1 | |
| A-35 | M080HFA1007ZZ0 | Bracket | 1 | |
| A-36 | MJPFBAA2014ZZ0 | Bracket | 1 | |
| A-37 | MJPFBAA2015ZZ0 | Cover | 1 | |
| A-38 | MJPFBBA2301MC0 | Chain assy | 1 | |
| A-39 | MJPFBGE1011ZZ0 | Cover | 1 | |
| A-40 | M080HFA1011PW0 | Cover | 1 |
