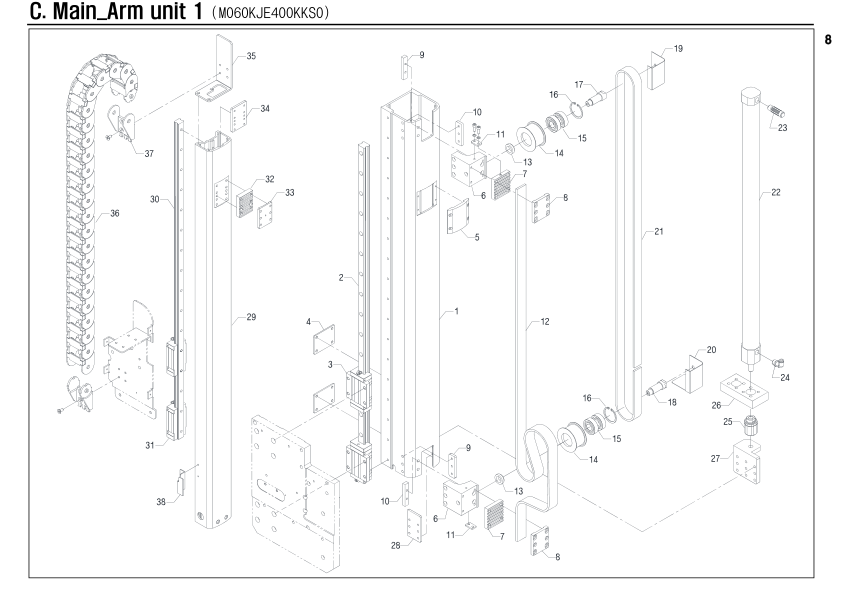

Main_Arm unit

Unit Number: M060KJE400KKS0

Robot: EPIK-600SYCT 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
C-1	M060FJA4006MC0	File	1
C-2	PLMRSHS251060L	LM rail	1
C-3	PLMBSHS25CKZ18	LM block	2
C-4	M035HAA4041ZZ0	Plate	2
C-5	M040HFA4048MC0	Gripper block	1
C-6	M035HAA4019ZZ0	Plate	2
C-7	M040HFA4033MC0	Belt gripper	2
C-8	M035HAA4016ZZ0	Gripper block	2
C-9	M035HAA4023ZZ0	Nut	2
C-10	M035HAA4022ZZ0	Plate	2
C-11	M035HAA4035ZZ0	Plate	2
C-12	PBLTU8M3088888	Timing belt	1544
C-13	M035HAA4018ZZ0	Collar	2
C-14	M035HAA4021ZZ0	Roller	2
C-15	PBRA6203ZZ8888	Bearing	10
C-16	PRGH040H888888	Snap ring	5
C-17	M035HAA4020ZZ0	Shaft	1
C-18	M035HAA4047ZZ0	Shaft	1
C-19	M035HAA4025ZZ0	Cover	1
C-20	M035HAA4024ZZ0	Cover	1
C-21	PBLTA102588888	Timing belt	2160
C-22	PAXA3528506788	Cylinder	1
C-23	PAXZSILENCER14	Silincer	1
C-24	PAXFEL08140888	Fitting	1
C-25	PAXFKM12X12588	Floating joint	1
C-26	M035HAA4026MC0	Block	1
C-27	M035HAA4027ZZ0	Block	1
C-28	M035HAA4028ZZ0	Block	1
C-29	M060FJB4007MC0	File	1
C-30	PLMRSHS200940L	LM rail	1
C-31	PLMBSHS20CKZ18	LM block	2
C-32	M035HAA4014MC0	Belt gripper	1
C-33	M035HAA4017ZZ0	Gripper block	1
C-34	M035HAA4010ZZ0	Gripper nut	1
C-35	M040HFA4056ZZ0	Bracket	1
C-36	PCVH4501B07588	Cableveyor link	23
C-37	PCVE4501300088	Cableveyor end bracket	1
C-38	M035HAA4040ZZ0	Plate	1
C-39	M040HFA4001ZZ0	Plate A	1
C-40	M035HAA4009ZZ0	Shaft	5
C-41	PRGS017S888888	Snap ring	6
C-42	M035HAA4011ZZ0	Roller	3
C-43	M040HFA4003ZZ0	Plate	1
C-44	M040HFA4004MC0	Belt gripper	1
C-45	M040HFA4014MC0	Belt gripper	1
C-46	M040HFA4015MC0	Belt gripper	1
C-47	M040HFA4044ZZ0	Gripper block	2
C-48	M035HAA4013ZZ0	Plate	1
C-49	PRESSFS9DPB088	Reducer	1
C-50	PMTBEMJ08APB24	Servo motor	1
C-51	M040HFB4012ZZ0	Timing pulley	1
C-52	PPLMMA24428888	Power lock	1
C-53	M040HFA4024ZZ0	Bracket	1
C-54	M035HAA4005ZZ0	Plate A	1
C-55	PSSRHYP18S5NAF	Sensor	1
C-56	M035HAA4032ZZ0	Cylinder bracket	1
C-57	M035HAA4031MC0	Belt gripper	1
C-58	M015MAB4040ZZ0	Bracket	1
C-59	PSSMRS52SH8888	Magnet sensor	1
C-60	M040HFA4037ZZ0	Bracket	1
C-61	M035HAA4045ZZ0	Bracket	1
C-62	M040HFA4039MD0	Cover	1
C-63	M035HAA4043ZZ0	Cover	1
C-64	M040HFA4055ZZ0	Cover plate	1
C-65	M040HFA4042MD0	Cover	1
