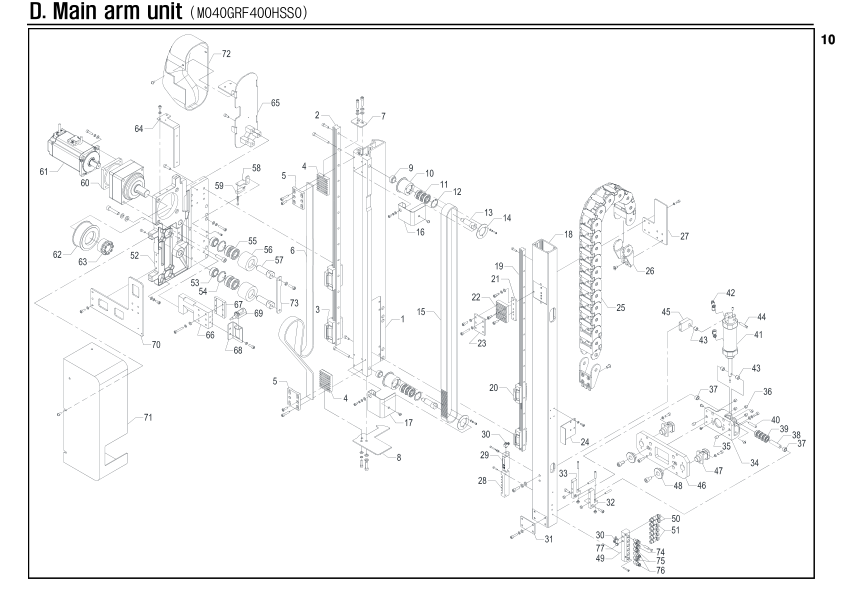

Main arm unit
Unit Number: M040GRF400HSS0
Robot: ZEST-II-400D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| D-1 | M040KJG4006MC0 | File | 1 | |
| D-2 | PMLRHGR20R0870 | LM rail | 1 | |
| D-3 | PLMBQHW20CC888 | LM block | 2 | |
| D-4 | M020KFC4033MC0 | Belt gripper | 2 | |
| D-5 | M015MAB4016ZZ0 | Gripper block | 2 | |
| D-6 | PBLTU8M2588888 | Timing belt | 1290 | |
| D-7 | M015MAB3044ZZ0 | Plate | 1 | |
| D-8 | M035HAA3037ZZ0 | Plate | 1 | |
| D-9 | M035HAA3018ZZ0 | Collar | 2 | |
| D-10 | M035HAA3021ZZ0 | Roller | 2 | |
| D-11 | PBRA6902ZZ8888 | Bearing | 6 | |
| D-12 | PRGH028H888888 | Snap ring | 2 | |
| D-13 | M035HAA3019ZZ0 | Shaft | 2 | |
| D-14 | M035HAA3015ZZ0 | Timing pulley | 2 | |
| D-15 | PBLTU5M2588888 | Timing belt | 1770 | |
| D-16 | M040KJG4036ZZ0 | Belt cover | 1 | |
| D-17 | M040KJG4038ZZ0 | Belt cover | 1 | |
| D-18 | M040KJG4007MC0 | File | 1 | |
| D-19 | PMLRHGR15R0820 | LM rail | 1 | |
| D-20 | PLMBQHW15CC888 | LM block | 2 | |
| D-21 | M035HAA3010ZZ0 | Gripper nut | 1 | |
| D-22 | M035HAA3014MC0 | Belt gripper | 1 | |
| D-23 | M035HAA3017ZZ0 | Gripper block | 1 | |
| D-24 | M015MAB4039ZZ0 | Bracket | 1 | |
| D-25 | PCVH4501B07588 | Cableveyor link | 20 | |
| D-26 | PCVE4501300088 | Cableveyor end bracket | 1 | |
| D-27 | M015MAB4023ZZ0 | Bracket | 1 | |
| D-28 | PTLA07P8888888 | Terminal | 1 | |
| D-29 | PAXVPS6102VNAM | Sensor | 1 | |
| D-30 | PAXFBUVLM56888 | Nipple | 2 | |
| D-31 | M040KJG4041ZZ0 | Plate | 1 | |
| D-32 | MN20DAA5003ZB0 | Plate fix block | 1 | |
| D-33 | MN20DAA5004ZB0 | Plate fix block | 1 | |
| D-34 | MN20KFG4003MC0 | Plate | 1 | |
| D-35 | M035HAA5012ZZ0 | Pin | 2 | |
| D-36 | MN20KFG4047ZZ0 | Pin | 4 | |
| D-37 | MN20KFG4006ZZ0 | Collar | 2 | |
| D-38 | MN20KFG4007ZZ0 | Pin | 1 | |
| D-39 | PBRA6900ZZ8888 | Bearing | 4 | |
| D-40 | PMXPSFJ6328888 | Shaft | 1 | |
| D-41 | PAXA3548400588 | Cylinder | 1 | |
| D-42 | PAXFESC04M5888 | Speed controller | 2 | |
| D-43 | PBRNFJ69ZZ8888 | Roller bearing | 3 | |
| D-44 | M035HAA5009MC0 | Pin | 1 | |
| D-45 | M040KJG5016ZZ0 | Plate | 1 | |
| D-46 | M060HFA5007ZZ0 | Jig plate | 1 | |
| D-47 | M060HFA5100000 | Fix pin set | 2 | |
| D-48 | M060HFA5008ZZ0 | Pin | 2 | |
| D-49 | M020HFB5018ZZ0 | Air Block | 1 | |
| D-50 | PAXFEL06180888 | Fitting | 2 | |
| D-51 | PAXFEL04180888 | Fitting | 4 | |
| D-52 | M040KJS4001MCXB | LM Plate | 1 | |
| D-53 | M020KJG4036ZZXB | Collar | 2 | |
| D-54 | PRGH035H888888 | Snap ring | 2 | |
| D-55 | PBRA6003ZZ8888 | Bearing | 4 | |
| D-56 | M060HRE4011ZZ0 | Roller | 2 | |
| D-57 | M040KJG3035ZZXB | Bearing holder | 2 | |
| D-58 | M040KJG4040ZZ0 | Bracket | 1 | |
| D-59 | PSSMRS1SH88888 | Sensor | 1 | |
| D-60 | PRESSFS9DPB088 | Reducer | 1 | |
| D-61 | PMTBMA751A2TN6 | Servo motor | 1 | |
| D-62 | M020KFA4012ZZ0 | Timing pulley | 1 | |
| D-63 | PPLMMA24428888 | Power lock | 1 | |
| D-64 | M040KJG4024ZZ0 | Bracket | 1 | |
| D-65 | M040KJG4034ZZXA | Cableveyor fixed bracket | 1 | |
| D-66 | M040KJG4004MC0 | Belt gripper | 1 | |
| D-67 | M035HAA3042ZZ0 | Gripper block | 1 | |
| D-68 | M040KJG4015ZZ0 | Bracket | 1 | |
| D-69 | PSSRHYP18S5NAF | Sensor | 1 | |
| D-70 | M040KJG4044ZZ0 | Cableveyor fixed bracket | 1 | |
| D-71 | M040KJG4042ZZ0 | Cover | 1 | |
| D-72 | M040GRE3047MD0 | Cover | 1 | |
| D-73 | M020GRE4050ZZ0 | Plate | 1 | |
| D-74 | PAXFEC06180888 | Fitting | 2 | |
| D-75 | PAXFEC04188888 | Fitting | 2 | |
| D-76 | PAXFQSK1804888 | Fitting | 2 | |
| D-77 | PAXFBBPM588888 | Plug | 1 |
