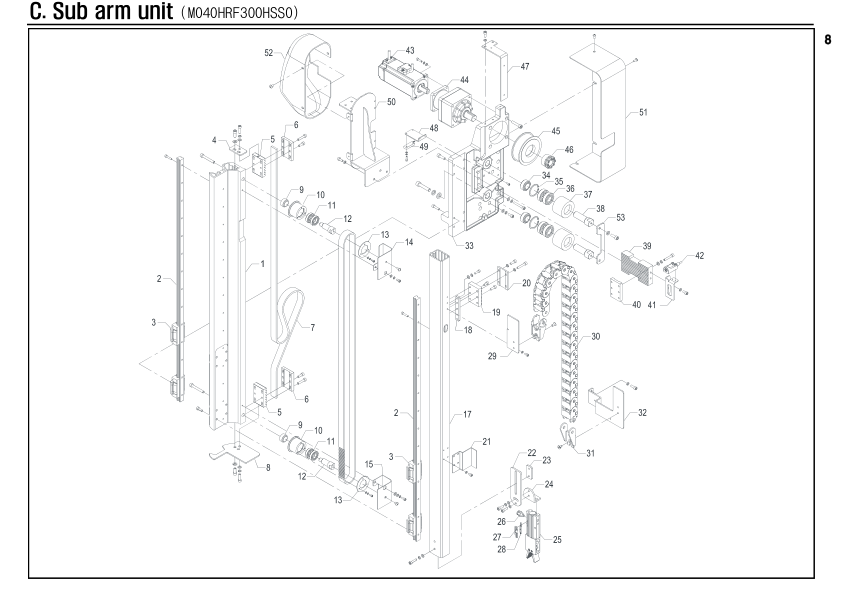

Sub arm unit

Unit Number: M040HRF300HSS0

Robot: ZEST-II-400D 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
C-1	M040KJG3006MC0	File	1
C-2	PMLRHGR15R0820	LM rail	2
C-3	PLMBQHW15CC888	LM block	4
C-4	M015MAB3044ZZ0	Plate	1
C-5	M020KFC3033MC0	Gripper	2
C-6	M015MAB3016ZZ0	Gripper block	2
C-7	PBLTU8M2088888	Timing belt	1250
C-8	M015MAB3037ZZ0	Plate	1
C-9	M015MAB3018ZZ0	Collar	2
C-10	M015MAB3021ZZ0	Roller	2
C-11	PBRA6902ZZ8888	Bearing	4
C-12	M040KJG3019ZZ0	Shaft	2
C-13	M015MAB3015ZZ0	Flange	2
C-14	M040KJG3051ZZ0	Belt cover	1
C-15	M040KJG3038ZZ0	Belt cover	1
C-16	PBLTU5M2088888	Timing belt	1730
C-17	M040KJG3007MC0	File	1
C-18	M015MAB3010ZZ0	Gripper nut	1
C-19	M015MAB3014MC0	Belt gripper	1
C-20	M015MAB3017ZZ0	Gripper block	1
C-21	M040KJG3039ZZ0	Touch plate	1
C-22	M015MAA3902MF0	Gripper bracket	1
C-23	M015MAA3903MF0	Gripper bracket nut	1
C-24	MS55AT34005ZC0	Gripper bracket B	1
C-25	PAXAHYCITYPE88	Hy air chuck(I-type)	1
C-26	PAXFEC06M58888	Fitting	1
C-27	MS55AT44302ZZ0	Sensor bracket	1
C-28	PSSMSHYCDA9388	Auto switch	1
C-29	M040KJG3023ZZ0	Bracket	1
C-30	PCVH3202B05022	Cableveyor link	26
C-31	PCVE3202300088	Cableveyor end bracket	1
C-32	M040KJG3022ZZ0	Cableveyor fixed bracket	1
C-33	M040KJG3001MCXB	LM plate	1
C-34	M020HRF3036ZZXB	Collar	2
C-35	PRGH030H888888	Snap ring	2
C-36	PBRA6903ZZ8888	Bearing	4
C-37	MN20KWH4011ZZ0	Roller	2
C-38	MN20KWH4035ZZXB	Bearing holder	2
C-39	M040KJG3004MC0	Belt gripper	1
C-40	M015MAB3042ZZ0	Gripper block	1
C-41	M040KJG3015ZZ0	Bracket	1
C-42	PSSRHYP18S5NAF	Sensor	1
C-43	PMTBMA401A2TN6	Servo motor	1
C-44	PRESSFS9CPB048	Reducer	1
C-45	M030KFA3012ZZ0	Timing pulley	1
C-46	PPLMMA19338888	Power lock	1
C-47	M040KJG4024ZZ0	Bracket	1
C-48	M040KJG3042ZZ0	Bracket	1
C-49	PSSMRS1SH88888	Sensor	1
C-50	M040KJG3046ZZXA	Cableveyor fixed bracket	1
C-51	M040KJG3041ZZ0	Cover	1
C-52	M040GRE3048MD0	Cover	1
C-53	M020HRF3050ZZ0	Plate	1
