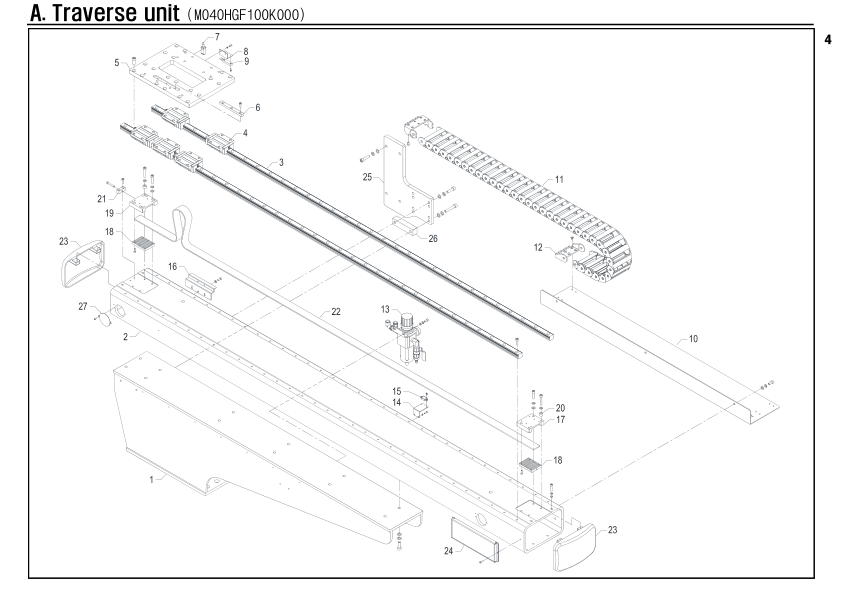

Traverse unit
Unit Number: M040HGF100K000
Robot: EPIK-V-400DL 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| A-1 | M040HGF1002PW0 | Body | 1 | |
| A-2 | M040HGF1001PW0 | Body frame | 1 | |
| A-3 | PLMRSHS302520L | LM rail | 2 | |
| A-4 | PLMBSHS30CKZ18 | LM block | 5 | |
| A-5 | M040HFA1012ZZ0 | LM base | 1 | |
| A-6 | M035HAA1013ZZ0 | Key | 1 | |
| A-7 | PSSRHYP18S5NAF | Sensor | 1 | |
| A-8 | M015MAB1017MC0 | Bracket | 1 | |
| A-9 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| A-10 | M040HGA1011ZZ0 | Cableveyor plate | 1 | |
| A-11 | PCVH4504B09534 | Cableveyor link | 34 | |
| A-12 | PCVE4504300088 | Cableveyor end bracket | 1 | |
| A-13 | PAXSTAW4000AS2 | Filter regulator | 1 | |
| A-14 | M040HFA1018MC0 | Bracket | 1 | |
| A-15 | PSSMRS52SHC888 | Magnet | 1 | |
| A-16 | M040HFA1007ZZ0 | Bracket | 1 | |
| A-17 | M040HFA1005ZZ0 | Gripper block | 1 | |
| A-18 | M040HFA1002MC0 | Gripper | 2 | |
| A-19 | M040HFA1004ZZ0 | Gripper block | 1 | |
| A-20 | M015MAB1016ZZ0 | Block | 4 | |
| A-21 | M055MAA1004NI0 | Tension block | 1 | |
| A-22 | PBLTA104088888 | Timing belt | 2910 | |
| A-23 | M040HFA1011PW0 | Cover | 2 | |
| A-24 | MXAKAAB1000000 | Counter | 1 | |
| A-25 | MN20TEA1021PW0 | Plate | 1 | |
| A-26 | M040HFA1021ZZ0 | Spacer | 1 | |
| A-27 | MXAKAAB1004ZZ0 | Cover | 1 |
