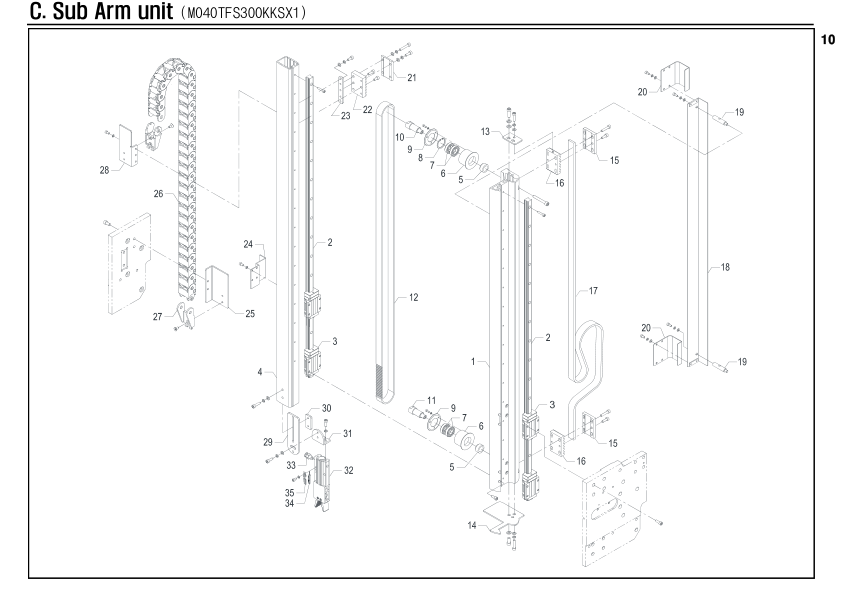

Sub Arm unit
Unit Number: M040TFS300KKSX1
Robot: EPIK-V-400DL 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| C-1 | M060KJB3006MC0 | File | 1 | |
| C-2 | PLMRSHS150940L | LM rail | 2 | |
| C-3 | PLMBSHS15CKZ18 | LM block | 4 | |
| C-4 | M040TFS3007MC0 | File | 1 | |
| C-5 | M015MAB3018ZZ0 | Collar | 2 | |
| C-6 | M015MAB3021ZZ0 | Roller | 2 | |
| C-7 | PBRA6902ZZ8888 | Bearing | 4 | |
| C-8 | PRGH028H888888 | Snap ring | 2 | |
| C-9 | M015MAB3015ZZ0 | Flange | 2 | |
| C-10 | M015MAB3020ZZ0 | Shaft | 1 | |
| C-11 | M015MAB3019ZZ0 | Shaft | 1 | |
| C-12 | PBLTU5M2088888 | Timing belt | 1910 | |
| C-13 | M015MAB3044ZZ0 | Plate | 1 | |
| C-14 | M015MAB3037ZZ0 | Plate | 1 | |
| C-15 | M015MAB3016ZZ0 | Gripper block | 2 | |
| C-16 | M020KFC3033MC0 | Gripper | 2 | |
| C-17 | PBLTU8M2088888 | Timing belt | 1392 | |
| C-18 | M060KJB3051ZZ0 | Belt cover | 1 | |
| C-19 | M015MAB3025ZZ0 | Shaft | 2 | |
| C-20 | M015MAB3038ZZ0 | Belt cover | 2 | |
| C-21 | M015MAB3017ZZ0 | Gripper block | 1 | |
| C-22 | M015MAB3014MC0 | Belt gripper | 1 | |
| C-23 | M015MAB3010ZZ0 | Gripper nut | 1 | |
| C-24 | M015MAB3039ZZ0 | Touch plate | 1 | |
| C-25 | M015MAB3022ZZ0 | Bracket | 1 | |
| C-26 | PCVH3202B05088 | Cableveyor link | 29 | |
| C-27 | PCVE3202300088 | Cableveyor end bracket | 1 | |
| C-28 | M015MAB3023ZZ0 | Bracket | 1 | |
| C-29 | M015MAA3902MF0 | Gripper bracket | 1 | |
| C-30 | M015MAA3903MF0 | Gripper bracket nut | 1 | |
| C-31 | MS55AT34005ZW0 | Gripper bracket | 1 | |
| C-32 | PAXAHYCITYPE88 | Hy air chuck(I-type) | 1 | |
| C-33 | PAXFEC06M58888 | Fitting | 1 | |
| C-34 | PSSMSHYCDA9388 | Auto switch | 1 | |
| C-35 | MS55AT44302ZZ0 | Sensor bracket | 1 | |
| C-36 | M060KJB3001MC0 | Plate | 1 | |
| C-37 | M015MAB3013ZZ0 | Plate | 1 | |
| C-38 | PRESSFS9CPB048 | Reducer | 1 | |
| C-39 | PMTBEMJ04APB24 | Servo motor | 1 | |
| C-40 | M030KFA3012ZZ0 | Timing pulley | 1 | |
| C-41 | PPLMMA19338888 | Power lock | 1 | |
| C-42 | M015MAB4024ZZ0 | Bracket | 1 | |
| C-43 | M015MAB3032ZZ1 | Bracket | 1 | |
| C-44 | M035HAA3031MC0 | Belt gripper | 1 | |
| C-45 | M015MAB4040ZZ0 | Bracket | 1 | |
| C-46 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| C-47 | M060MJA3033ZZ0 | Plate | 1 | |
| C-48 | M060MJA3005ZZ0 | Block | 1 | |
| C-49 | M015MAB3046ZZ0 | Cableveyor fixed bracket | 1 | |
| C-50 | M015MAB3047MD0 | Cover | 1 | |
| C-51 | M015MAB3009ZZ0 | Shaft | 4 | |
| C-52 | PRGS015S888888 | Snap ring | 3 | |
| C-53 | M015MAB3011ZZ0 | Roller | 3 | |
| C-54 | PBRA6002ZZ8888 | Bearing | 6 | |
| C-55 | PRGH032H888888 | Snap ring | 3 | |
| C-56 | M015MAB3004MC0 | Belt gripper | 1 | |
| C-57 | M015MAB3042ZZ0 | Gripper block | 1 | |
| C-58 | PSSRHYP18S5NAF | Sensor | 1 | |
| C-59 | M015MAB3003MC0 | Plate | 1 | |
| C-60 | M015MAB4005ZZ0 | Plate A | 1 | |
| C-61 | M015MAB3049ZZ0 | Cover | 1 | |
| C-62 | M015MAB3048ZZ0 | Cover | 1 |
