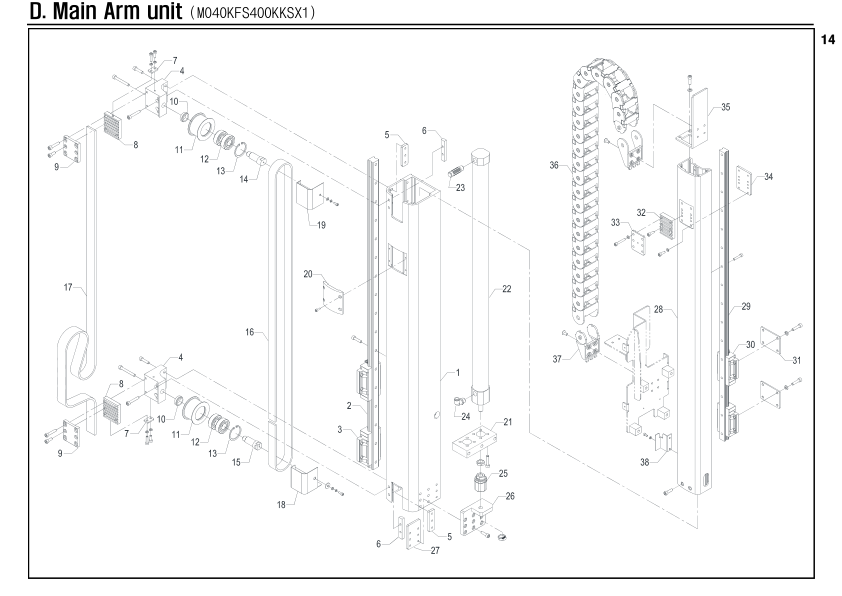

Main Arm unit
Unit Number: M040KFS400KKSX1
Robot: EPIK-V-400DL 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| D-1 | M040KFS4006MCXA | File | 1 | |
| D-2 | PLMRSHS250990L | LM rail | 1 | |
| D-3 | PLMBSHS25CKZ18 | LM block | 2 | |
| D-4 | M035HAA4019ZZ0 | Plate | 2 | |
| D-5 | M035HAA4022ZZ0 | Plate | 2 | |
| D-6 | M035HAA4023ZZ0 | Nut | 2 | |
| D-7 | M035HAA4035ZZ0 | Plate | 2 | |
| D-8 | M040HFA4033MC0 | Belt gripper | 2 | |
| D-9 | M035HAA4016ZZ0 | Gripper block | 2 | |
| D-10 | M035HAA4018ZZ0 | Collar | 2 | |
| D-11 | M035HAA4021ZZ0 | Roller | 2 | |
| D-12 | PBRA6203ZZ8888 | Bearing | 10 | |
| D-13 | PRGH040H888888 | Snap ring | 5 | |
| D-14 | M035HAA4020ZZ0 | Shaft | 1 | |
| D-15 | M035HAA4047ZZ0 | Shaft | 1 | |
| D-16 | PBLTA102588888 | Timing belt | 2020 | |
| D-17 | PBLTU8M3088888 | Timing belt | 1472 | |
| D-18 | M035HAA4024ZZ0 | Cover | 1 | |
| D-19 | M035HAA4025ZZ0 | Cover | 1 | |
| D-20 | M040HFA4048MC0 | Gripper block | 1 | |
| D-21 | M035HAA4026MC0 | Block | 1 | |
| D-22 | PAXA3528506788 | Cylinder | 1 | |
| D-23 | PAXZSILENCER14 | Silincer | 1 | |
| D-24 | PAXFEL08140888 | Fitting | 1 | |
| D-25 | PAXFKM12X12588 | Floating joint | 1 | |
| D-26 | M035HAA4027ZZ0 | Block | 1 | |
| D-27 | M035HAA4028ZZ0 | Block | 1 | |
| D-28 | M040KFS4007MCXA | File | 1 | |
| D-29 | PLMRSHS200930L | LM rail | 1 | |
| D-30 | PLMBSHS20CKZ18 | LM block | 2 | |
| D-31 | M035HAA4041ZZ0 | Plate | 2 | |
| D-32 | M035HAA4014MC0 | Belt gripper | 1 | |
| D-33 | M035HAA4017ZZ0 | Gripper block | 1 | |
| D-34 | M035HAA4010ZZ0 | Gripper nut | 1 | |
| D-35 | M080HRE4056ZZ0 | Bracket | 1 | |
| D-36 | PCVH4501B07588 | Cableveyor link | 23 | |
| D-37 | PCVE4501300088 | Cableveyor end bracket | 1 | |
| D-38 | M035HAA4040ZZ0 | Plate | 1 | |
| D-39 | M040HFA4001ZZ0 | Plate A | 1 | |
| D-40 | M035HAA4009ZZ0 | Shaft | 5 | |
| D-41 | M035HAA4011ZZ0 | Roller | 3 | |
| D-42 | PRGS017S888888 | Snap ring | 6 | |
| D-43 | M040HFA4003ZZ0 | Plate | 1 | |
| D-44 | M040HFA4004MC0 | Belt gripper | 1 | |
| D-45 | M040HFA4014MC0 | Belt gripper | 1 | |
| D-46 | M040HFA4015MC0 | Belt gripper | 1 | |
| D-47 | M040HFA4044ZZ0 | Gripper block | 2 | |
| D-48 | M035HAA4013ZZ0 | Plate | 1 | |
| D-49 | PRESSFS9DPB088 | Reducer | 1 | |
| D-50 | PMTBEMJ10APB24 | Servo motor | 1 | |
| D-51 | M040HFB4012ZZ0 | Timing pulley | 1 | |
| D-52 | PPLMMA24428888 | Power lock | 1 | |
| D-53 | M040HFA4024ZZ0 | Bracket | 1 | |
| D-54 | PSSRHYP18S5NAF | Sensor | 1 | |
| D-55 | M035HAA4005ZZ0 | Plate A | 1 | |
| D-56 | M035HAA4032ZZ0 | Cylinder bracket | 1 | |
| D-57 | M035HAA4031MC0 | Belt gripper | 1 | |
| D-58 | M015MAB4040ZZ0 | Bracket | 1 | |
| D-59 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| D-60 | M040HFA4037ZZXA | Bracket | 1 | |
| D-61 | M040HFA4039MD0 | Cover | 1 | |
| D-62 | M035HAA4043ZZ0 | Cover | 1 | |
| D-63 | M040HFA4055ZZ0 | Cover plate | 1 | |
| D-64 | M040HFA4042MD0 | Cover | 1 | |
| D-1 | Servo motor | 1 | ||
| D-28 | Servo motor | 1 |
