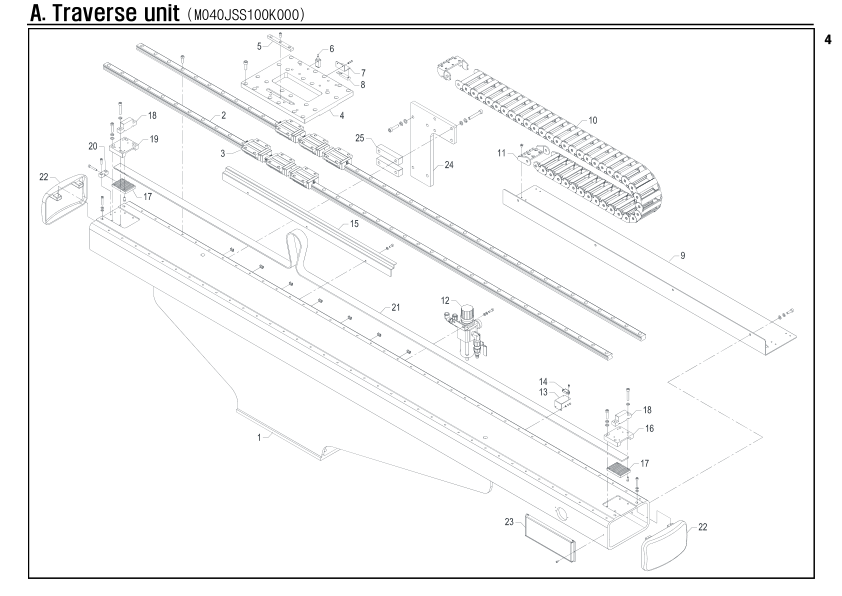

Traverse unit
Unit Number: M040JSS100K000
Robot: NEXIA-V-400SYSA-T 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| A-1 | M040JSS1001PW0 | Body | 1 | |
| A-2 | PLMRSHS303000L | LM rail | 2 | |
| A-3 | PLMBSHS30CKZ18 | LM block | 6 | |
| A-4 | M030SBB1012ZZ0 | LM Base | 1 | |
| A-5 | M035HAA1013ZZ0 | Key | 1 | |
| A-6 | PSSRHYP18S5NAF | Sensor | 1 | |
| A-7 | M015MAB1017MC0 | Bracket | 1 | |
| A-8 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| A-9 | M040JSS1011ZZ0 | Cableveyor plate | 1 | |
| A-10 | PCVH4504B09588 | Cableveyor link | 40 | |
| A-11 | PCVE4504300088 | Cableveyor end bracket | 1 | |
| A-12 | PAXSTAW4000AS2 | Filter regulator | 1 | |
| A-13 | M040HFA1018MC0 | Bracket | 1 | |
| A-14 | PSSMRS52SHC888 | Magnet | 1 | |
| A-15 | M040JSSS1007ZZ0 | Bracket | 1 | |
| A-16 | M040HFA1005ZZ0 | Gripper block | 1 | |
| A-17 | M030BLA1002MC0 | Gripper | 2 | |
| A-18 | M100FLA1016ZZ0 | Stopper | 2 | |
| A-19 | M040HFA1004ZZ0 | Gripper block | 1 | |
| A-20 | M040WFS1005ZZ0 | Block | 1 | |
| A-21 | PBLTU8M4088882 | Timing belt | 3408 | |
| A-22 | M040HFA1011PW0 | Cover | 2 | |
| A-23 | MXAKAAB1000000 | Counter | 1 | |
| A-24 | M060JJS1021ZZ0 | Plate | 1 | |
| A-25 | M040HFA1021ZZ0 | Spacer | 2 |
