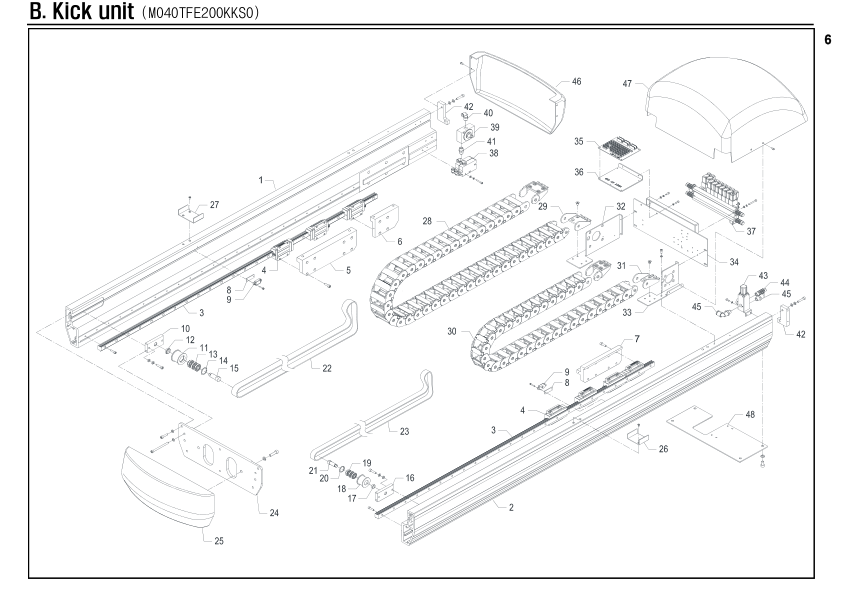

Kick unit
Unit Number: M040TFE200KKS0
Robot: EPIK-V-400DL 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| B-1 | M040HFA2001MC0 | File | 1 | |
| B-2 | M040HFA2002MC0 | File | 1 | |
| B-3 | PLMRSHS201420L | LM rail | 2 | |
| B-4 | PLMBSHS20CKZ18 | LM block | 7 | |
| B-5 | M035HAA4008ZZ0 | Plate A | 1 | |
| B-6 | M015MAB4008ZZ0 | Plate A | 1 | |
| B-7 | M060MJA2008ZZ0 | Plate | 1 | |
| B-8 | M015MAB2035MC0 | Nut key | 2 | |
| B-9 | PSSMRS52SHC888 | Magnet | 2 | |
| B-10 | M035HAA2018ZZ0 | Tension block | 1 | |
| B-11 | M035HAA2019ZZ0 | Idle roller | 3 | |
| B-12 | M035HAA2035ZZ0 | Collar | 3 | |
| B-13 | PBRA6902ZZ8888 | Bearing | 9 | |
| B-14 | PRGH028H888888 | Snap ring | 3 | |
| B-15 | M035HAA2034ZZ0 | Shaft | 3 | |
| B-16 | M035HAA2045ZZ0 | Tention block | 1 | |
| B-17 | M035HAA2044ZZ0 | Collar | 3 | |
| B-18 | M035HAA2043ZZ0 | Idle roller | 3 | |
| B-19 | PBRA6901ZZ8888 | Bearing | 9 | |
| B-20 | PRGH024H888888 | Snap ring | 3 | |
| B-21 | M035HAA2042ZZ0 | Shaft | 3 | |
| B-22 | PBLTU5M2088888 | Timing belt | 3355 | |
| B-23 | PBLTU5M2588888 | Timing belt | 3280 | |
| B-24 | M035HAA2020ZZ0 | Cover | 1 | |
| B-25 | M035HAA2021PW0 | Cover | 1 | |
| B-26 | M015MAB2037MC0 | Bracket | 1 | |
| B-27 | M015MAB2036MC0 | Bracket | 1 | |
| B-28 | PCVH4502B09539 | Cableveyor link | 39 | |
| B-29 | PCVE4502300088 | Cableveyor end bracket | 1 | |
| B-30 | PCVH4501B07532 | Cableveyor link | 32 | |
| B-31 | PCVE4501300088 | Cableveyor end bracket | 1 | |
| B-32 | M040HFA2024ZZ0 | Solenoid valve boxbase B | 1 | |
| B-33 | M040HFA2023ZZ0 | Base | 1 | |
| B-34 | M040HFA2029ZZ0 | Base | 1 | |
| B-35 | PBDCIFKEBA8888 | Board | 1 | |
| B-36 | M040FFA2038ZZ0 | Plate | 1 | |
| B-37 | M040TJA2100000 | Solenoid valve unit | 1 | |
| B-38 | PAXVAV015HS888 | Vacuum pump | 2 | |
| B-39 | PAXVAF05888888 | Air filter | 1 | |
| B-40 | PAXFEL06140888 | Fitting | 1 | |
| B-41 | PAXFDOUBLEPT14 | Fitting | 1 | |
| B-42 | M040HFA2047ZZ0 | Cover block | 2 | |
| B-43 | PAXSVEX113302G | Regulator | 1 | |
| B-44 | PAXZSILENCER14 | Silincer | 1 | |
| B-45 | PAXFEL12140888 | Fitting | 2 | |
| B-46 | M040HFA2046MD0 | Cover | 1 | |
| B-47 | M040HFA2027MD0 | Cover | 1 | |
| B-48 | M040WFA2039ZZ0 | Cableveyor plate | 1 | |
| B-49 | M040HFA2003MC0 | Slide base | 1 | |
| B-50 | M035HAA2014ZZ0 | Nut key | 4 | |
| B-51 | M040HFA2033ZZ0 | Cover | 1 | |
| B-52 | M035HAA2016ZZ0 | Motor plate | 1 | |
| B-53 | PRESSF5BYA0288 | Reducer | 1 | |
| B-54 | PMTBEMJ02APB22 | Servo motor | 1 | |
| B-55 | M030SBA2040ZZ0 | Pulley | 1 | |
| B-56 | PPLMMA12268888 | Power lock | 1 | |
| B-57 | M035HAA2026ZZ0 | Shaft | 3 | |
| B-58 | PBRA6000ZZ8888 | Bearing | 3 | |
| B-59 | M035HAA2015ZZ0 | Motor plate | 1 | |
| B-60 | PRESSFS9CPB048 | Reducer | 1 | |
| B-61 | PMTBEMJ04APB22 | Servo motor | 1 | |
| B-62 | M040HFB2017ZZ0 | Pulley | 1 | |
| B-63 | PPLMMA19338888 | Power lock | 1 | |
| B-64 | M040HFA2004MC0 | Horizontal motor Bracket | 1 | |
| B-65 | M035HAA2005ZZ0 | Block | 2 | |
| B-66 | M035HAA2008ZZ0 | Collar | 2 | |
| B-67 | M035HAA2010ZZ0 | Idle roller | 2 | |
| B-68 | PBRA6004ZZ8888 | Bearing | 6 | |
| B-69 | PRGH042H888888 | Snap ring | 2 | |
| B-70 | M040HFA2007ZZ0 | Idle shaft | 2 | |
| B-71 | M040HFA2028MC0 | Block | 2 | |
| B-72 | PRESSFLS9DPB08 | Reducer | 1 | |
| B-73 | PMTBEMJ10APB22 | Servo motor | 1 | |
| B-74 | M040HFA2006ZZ0 | Timing pulley | 1 | |
| B-75 | PBRA6911ZZ8888 | Bearing | 1 | |
| B-76 | PPLMMA24428888 | Power lock | 1 |
