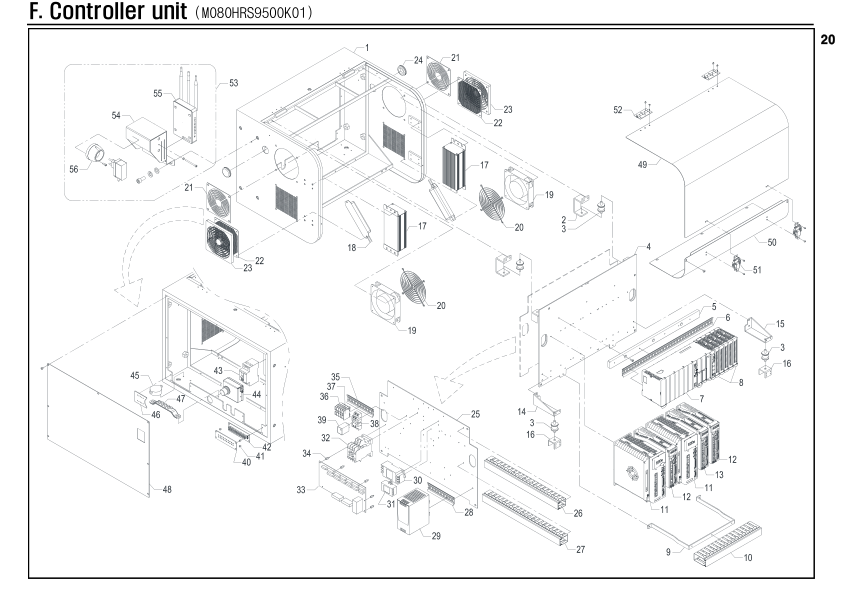

Controller unit

Unit Number: M080HRS9500K01

Robot: EPIK-V-400DL 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
F-1	M080JPE9002ZZ1	Body	1
F-2	M020HFA9004ZZ0	Controller bracket	2
F-3	PMXK25M6888888	Antivibration gels	4
F-4	M080JPE9003ZZ1	Plate	1
F-5	M080JPE9020ZZ0	Base	1
F-6	M020KKA9020MC1	Terminal channel	1
F-7	PBDKBCPUCP2638		1
F-8	PBDIOMODDM276A	I/O modules	5
F-9	M020KKA9009ZZ0	Controller bracket	1
F-10	MN20KFA9026MC0	Duct-30	1
F-11	PMTXPNE10A8888	Servo drive	2
F-12	PMTXPNE04A8888	Servo drive	2
F-13	PMTXPNE02A8888	Servo drive	1
F-14	M020KFE9005ZZ0	Controller bracket	1
F-15	M020KFE9006ZZ0	Controller bracket	1
F-16	M020HFA9007ZZ0	Controller bracket	2
F-17	PEXRS300W25K88	Regenerative resistor	2
F-18	PEXRS017W50K88	Regenerative resistor	2
F-19	PEXFSJ1238HA28	Fan	2
F-20	PEXFS105105888	Fan cover	2
F-21	PEXFSJ12COVER8	Fan cover	2
F-22	PEXFFILTER120S	Fan filter	2
F-23	PEXFFILTER102F	Fan filter	2
F-24	PMXCAPRUBPAK30	Cap	2
F-25	M080JPE9010ZZ2	Plate	1
F-26	MN20KFA9029MC1	Duct-30	1
F-27	M020KKA9025MC1	Duct-30	1
F-28	M020KKA9021MC1	Terminal channel	1
F-29	PSMPPRO1202405	Power supply	1
F-30	PFTEDITTBB20BD	Noise filter	1
F-31	PFTEWYFS03TM88	Noise filter	1
F-32	PNSEGMC2288888	Contactor	1
F-33	PBDINTKEBAV201	Board	1
F-34	PEXSFM31005888	Support	7
F-35	M020KKA9026MC0	Terminal channel	1
F-36	PTLD0600015288	Terminal	5
F-37	PTLD0600015888	Separator	1
F-38	PRLKLY28888888	Relay socket	1
F-39	PRLALY2N1DC248	Relay	1
F-40	M020KKA9023MC0	Plate	1
F-41	PEXSFM30588888	Support	4
F-42	PBDCLEDKEBA888	Board	1
F-43	PNSC32KGRC1588	Circuit breaker	1
F-44	PEXJTBOXJB001A	Ketop handheld terminals	1
F-45	PEXZBUZZER8888	Buzzer	1
F-46	M020KKA9032ZZ0	Cover	1
F-47	PEXELEBAR14588	Earth Bar	1
F-48	M080JPE9012ZZ1	Cover	1
F-49	M080JPE9013ZZ1	Cover	1
F-50	M080JPE9014ZZ1	Cover	1
F-51	PMXBY117888888	Hook	2
F-52	PMXBYHS1560888	Hinge	2
F-53	MXCTKB70000000	Board	1
F-54	M020KFG7003ZZ1	Cover	1
F-55	PNN704BCM88888	Access point	1
F-56	PN1HCON8888888	Concent	1
