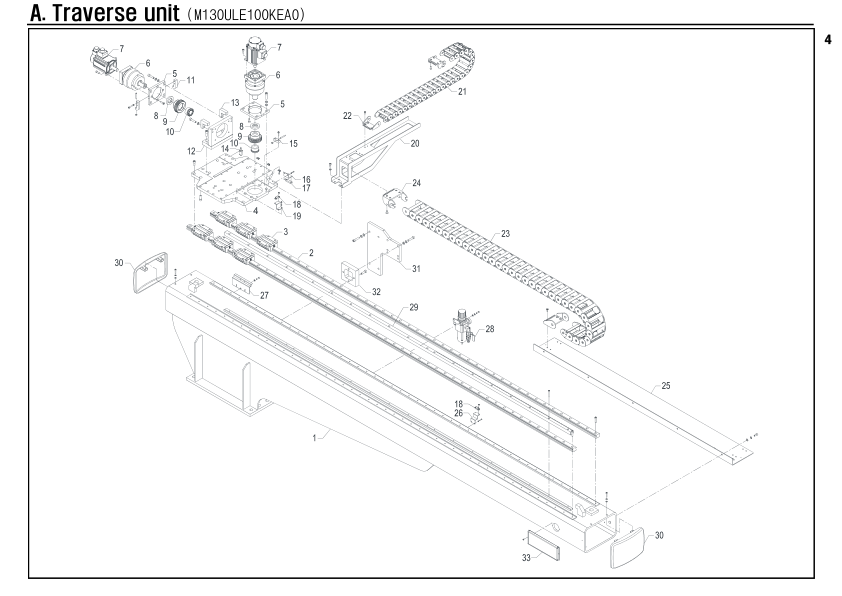

Traverse unit
Unit Number: M130ULE100KEA0
Robot: NEXIA-1300SW 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| A-1 | M130ULE1001PW0 | Body | 1 | |
| A-2 | PLMRSHS353640L | LM rail | 2 | |
| A-3 | PLMBSHS35CKZ18 | LM block | 6 | |
| A-4 | M130ULA1003ZZ0 | LM base | 1 | |
| A-5 | M130ULA1010ZZ0 | Plate | 2 | |
| A-6 | PRESAE12092PD15 | Reducer | 2 | |
| A-7 | PMTBMSME152GCG | Servo motor | 2 | |
| A-8 | M130ULA1011ZZ0 | Plate | 2 | |
| A-9 | M130ULA1008ZZ0 | Helical gear | 2 | |
| A-10 | PPLMMA32508888 | Power lock | 2 | |
| A-11 | M250ULA2014ZZ0 | PLATE | 2 | |
| A-12 | M130ULA2006ZZ0 | Plate | 1 | |
| A-13 | M130ULA2039ZZ0 | Block | 2 | |
| A-14 | PSSRHYP18S5NAF | Sensor | 1 | |
| A-15 | M250ULA4013ZZ0 | Block | 1 | |
| A-16 | M015MAB1017MC0 | Bracket | 1 | |
| A-17 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| A-18 | PSSMRS52SHC888 | Magnet | 2 | |
| A-19 | M250ULA2018MC0 | Bracket | 1 | |
| A-20 | M130ULA2008ZZ0 | Cableveyor bracket | 1 | |
| A-21 | PCVH4503309588 | Cableveyor link | 25 | |
| A-22 | PCVE4503300088 | Cableveyor end bracket | 1 | |
| A-23 | PCVH6252B12588 | Cableveyor link | 34 | |
| A-24 | PCVE6252300088 | Cableveyor end bracket | 1 | |
| A-25 | M080HGA1010ZZ0 | Cableveyor plate | 1 | |
| A-26 | M130ULA1022MC0 | Bracket | 1 | |
| A-27 | M080HFA1007ZZ0 | Bracket | 1 | |
| A-28 | PAXSTAW4000ASY | Filter regulator | 1 | |
| A-29 | M130ULE1050ZZ0 | Helical rack | 1 | |
| A-30 | M060HFA1011PW0 | Cover | 2 | |
| A-31 | MN20TEA1021PW0 | Plate | 1 | |
| A-32 | M130HFA1013PW0 | Spacer | 1 | |
| A-33 | MXAKAAB1000000 | Counter | 1 |
