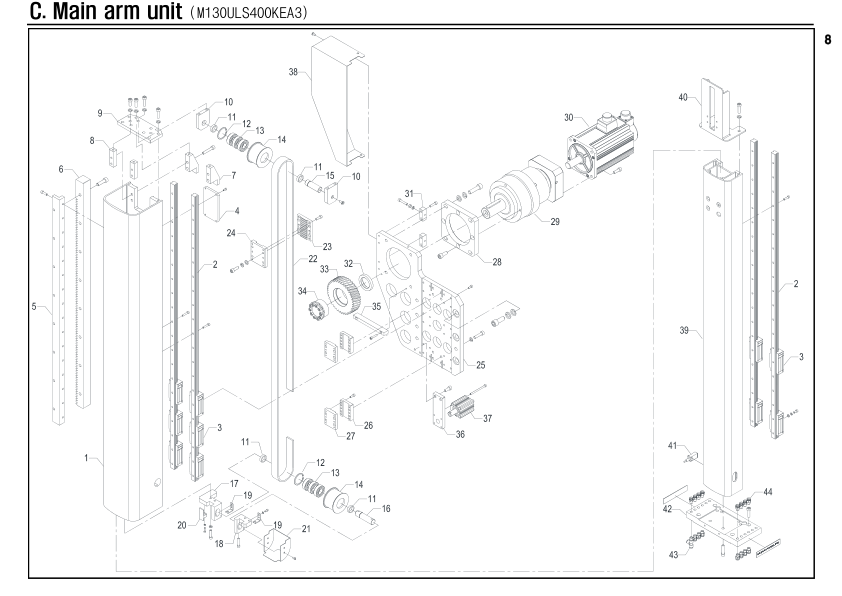

Main arm unit

Unit Number: M130ULS400KEA3

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity
C-1	M130ULS4006MC3	File	1
C-2	PLMRSHS201200L	LM rail	4
C-3	PLMBSHS20VKZ18	LM block	10
C-4	M080HFA4048MC0	Gripper block	1
C-5	M130ULS4021ZZ3	Rack bracket	1
C-6	M130ULS4020MC3	Helical rack	1
C-7	M080HFA4056ZZ0	Block	2
C-8	M080HFA4029ZZ0	Block	2
C-9	M080HFA4019ZZ0	Plate	1
C-10	M080HFA4018ZZ0	Pulley block	2
C-11	M080HFA4038ZZ0	Collar	4
C-12	PRGH042H888888	Snap ring	2
C-13	PBRA6004ZZ8888	Bearing	6
C-14	M080HFA4021ZZ0	Idle roller	2
C-15	M080HFA4020ZZ0	Roller shaft	1
C-16	M080HFA4024ZZ0	Shaft	1
C-17	M130ULA4022ZZ0	Pulley block	1
C-18	M080HFA4023ZZ0	Pulley block	1
C-19	M060HFA4065ZZ0	Bracket	2
C-20	M130HFA4040ZZ0	Plate	1
C-21	M080HFA4045ZZ0	Cover	1
C-22	PBLTU8M3088888	Timing belt	2584
C-23	M130ULA4014MC0	Gripper	1
C-24	M130ULA4017ZZ0	Gripper block	1
C-25	M130ULA4001MC0	Plate	1
C-26	M130ULA4012ZZ0	Belt gripper	2
C-27	M130ULA4046MC0	Gripper	2
C-28	M250ULA4017ZZ0	Plate	1
C-29	PRESAE15152PD40	Reducer	1
C-30	PMTBMSME402GCH	Servo motor	1
C-31	M250ULA4013ZZ0	Block	2
C-32	M200ULA4042ZZ0	Plate	1
C-33	M200ULA4018ZZ0	Helical gear	1
C-34	PPLMMA40628888	Power lock	1
C-35	M200ULA4022ZZ0	Block	1
C-36	M200ULA4030ZZ0	Block	1
C-37	PAXAIDFW32AS25	Cylinder	1
C-38	M130ULA4036ZZ0	Cover	1
C-39	M130ULS4007MC3	File	1
C-40	M130ULA4029ZZ0	Bracket	1
C-41	PSSRHYP18S5NAF	Sensor	1
C-42	M080HFA4052MC0	Plate	1
C-43	PAXFEST0618088	Fitting	1
C-44	PAXFEC06180888	Fitting	15
