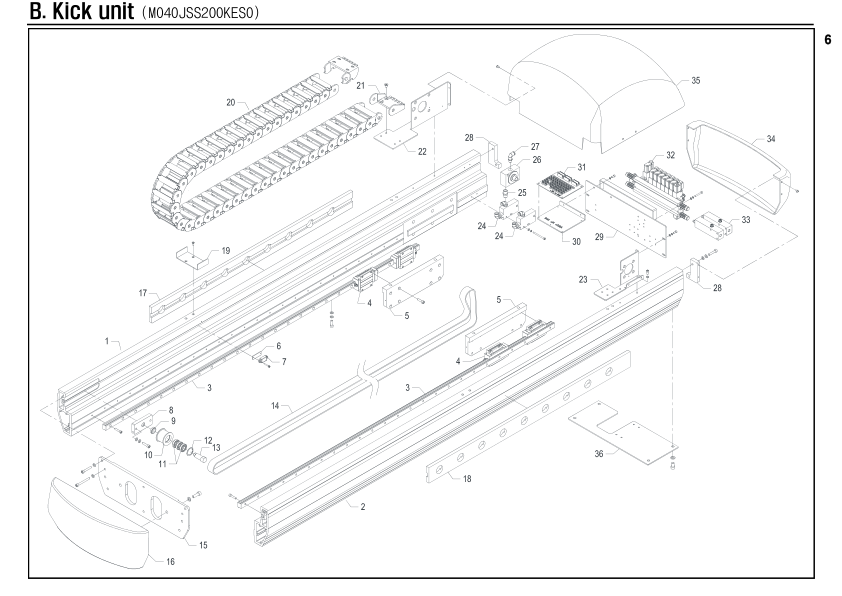

Kick unit
Unit Number: M040JSS200KES0
Robot: NEXIA-V-400SYSA-T 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| B-1 | M040WFS2001MC0 | File | 1 | |
| B-2 | M040JSS2002MC0 | File | 1 | |
| B-3 | PLMRSHS201480L | LM rail | 2 | |
| B-4 | PLMBSHS20CKZ18 | LM block | 4 | |
| B-5 | M030SBB2055ZZ0 | Plate | 2 | |
| B-6 | M015MAB2035MC0 | Nut key | 1 | |
| B-7 | PSSMRS52SHC888 | Magnet | 1 | |
| B-8 | M035HAA2018ZZ0 | Tension block | 1 | |
| B-9 | M035HAA2035ZZ0 | Collar | 3 | |
| B-10 | M035HAA2019ZZ0 | Idle roller | 3 | |
| B-11 | PBRA6902ZZ8888 | Bearing | 9 | |
| B-12 | PRGH028H888888 | Snap ring | 3 | |
| B-13 | M035HAA2034ZZ0 | Shaft | 3 | |
| B-14 | PBLTU5M2588888 | Timing belt | 3510 | |
| B-15 | M035HAA2020ZZ0 | Cover | 1 | |
| B-16 | M035HAA2021PW0 | Cover | 1 | |
| B-17 | M040YFS2058ZZ0 | File bracket | 1 | |
| B-18 | M040YFS2059ZZ0 | File bracket | 1 | |
| B-19 | M040YFS2036MC0 | Bracket | 1 | |
| B-20 | PCVH4503309588 | Cableveyor link | 41 | |
| B-21 | PCVE4503300088 | Cableveyor end bracket | 1 | |
| B-22 | M040WFS2024ZZ0 | Base | 2 | |
| B-23 | M040HFA2023ZZ0 | Base | 1 | |
| B-24 | PAXVAV015HS888 | Vacuum pump | 2 | |
| B-25 | PAXFDOUBLEPT14 | Fitting | 1 | |
| B-26 | PAXVAF05888888 | Air filter | 1 | |
| B-27 | PAXFEL06180888 | Fitting | 1 | |
| B-28 | M040HFA2047ZZ0 | Cover block | 2 | |
| B-29 | M040HFA2029ZZ0 | Base | 1 | |
| B-30 | M040FFA2038ZZ0 | Plate | 1 | |
| B-31 | PBDCIFVECT8888 | Board | 1 | |
| B-32 | M040SJA210000XA | Solenoid valve unit | 1 | |
| B-33 | PAXVDS01AN8888 | Valve | 2 | |
| B-34 | M040HFA2046MD0 | Cover | 1 | |
| B-35 | M040HFA2027MD0 | Cover | 1 | |
| B-36 | M040YFS2039ZZ0 | Cableveyor plate | 1 | |
| B-37 | M030SBB2003MC0 | Slide base | 1 | |
| B-38 | M035HAA2014ZZ0 | Nut key | 4 | |
| B-39 | M040HFA2033ZZ0 | Cover | 1 | |
| B-40 | M035HAA2015ZZ0 | Motor plate | 1 | |
| B-41 | PRESSFS9CPB048 | Reducer | 1 | |
| B-42 | PMTBMSMD042G1S | Servo motor | 1 | |
| B-43 | M030SBA2044ZZ0 | Pulley | 1 | |
| B-44 | PPLMMA19338888 | Power lock | 1 | |
| B-45 | M035HAA2026ZZ0 | Shaft | 2 | |
| B-46 | PBRA6000ZZ8888 | Bearing | 2 | |
| B-47 | M040YFS2004MC0 | Motor base | 1 | |
| B-48 | M035HAA2005ZZ0 | Block | 2 | |
| B-49 | PRESB09009PD15 | Reducer | 1 | |
| B-50 | PMTBMSME152GCG | Servo motor | 1 | |
| B-51 | M030BLA1003ZZ0 | Collar | 1 | |
| B-52 | M030BLA2006ZZ0 | Timing pulley | 1 | |
| B-53 | PPLMMA22408888 | Power lock | 1 | |
| B-54 | PBRA6911ZZ8888 | Bearing | 1 | |
| B-55 | M040HFA2007ZZ0 | Idle shaft | 2 | |
| B-56 | PRGH042H888888 | Snap ring | 2 | |
| B-57 | PBRA6004ZZ8888 | Bearing | 6 | |
| B-58 | M035HAA2010ZZ0 | Idle roller | 2 | |
| B-59 | M035HAA2008ZZ0 | Collar | 2 | |
| B-60 | M040HFA2028MC0 | Block | 2 | |
| B-42 | Servo motor | 1 | ||
| B-50 | Servo motor | 1 |
