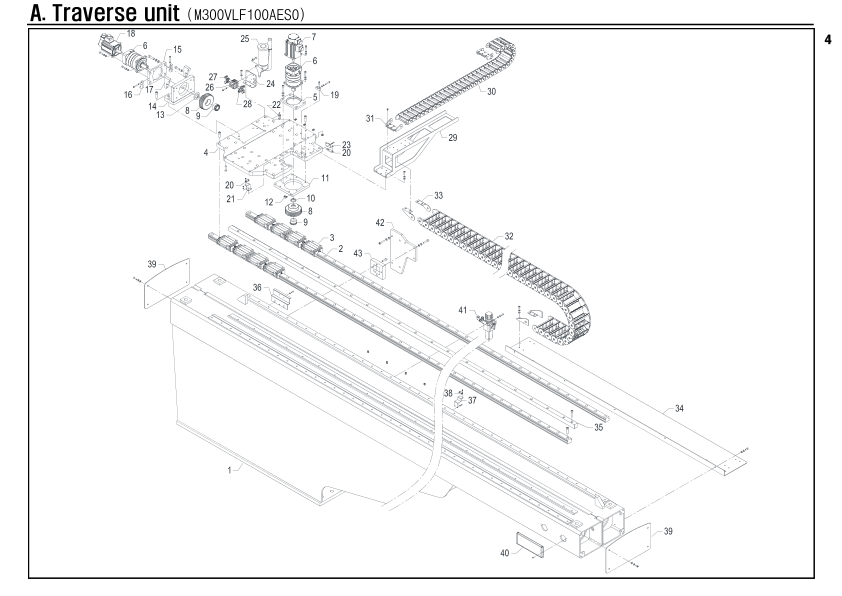

Traverse unit

Unit Number: M300VLF100AES0

Robot: NEXIA-E-3000SW 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
A-1	M300VLF1001PW0	Body	1
A-2	PLMRSAH454875L	LM rail	2
A-3	PLMBSAH45EM888	LM block	8
A-4	M300VLF1003ZZ0	Slide base	1
A-5	M200ULS1010ZZXA	Plate	1
A-6	PRESB11515PD20	Reducer	2
A-7	PMTBMSME202GCG	Servo motor	1
A-8	M200ULS1008ZZ0	Helical gear	2
A-9	PPLMMA32508888	Power lock	2
A-10	M130HFB2005MC2	Collar	1
A-11	M300VLF1007ZZ0	Plate	1
A-12	PAXFEL06180888	Fitting	1
A-13	M200JPB1011ZZ0	Plate	1
A-14	M250ULB2006ZZ0	Plate	1
A-15	M300VLF2024ZZ0	Plate	1
A-16	M250ULA2014ZZ0	PLATE	2
A-17	M250ULB2039ZZ0	PLATE	2
A-18	PMTBMSME152GCG	Servo motor	1
A-19	M200JPB1012ZZ0	PLATE	1
A-20	PSSMRS52SHC888	Magnet	2
A-21	M250ULA2018MC0	Bracket	1
A-22	PSSRHYP18S5NAF	Sensor	1
A-23	M015MAB1017MC0	Bracket	1
A-24	M200ULE1027Z0	Bracket	1
A-25	PMXLMG10888888	Pump	1
A-26	PMXL8UR8888888	Valve	1
A-27	PAXFEL06180888	Fitting	8
A-28	PAXFL4N1065148	Fitting	1
A-29	M300VLF2008ZZ0	Cableveyor Bracket	1
A-30	PCVH070NB15088	Cableveyor link	43
A-31	PCVE070NB15088	Cableveyor end bracket	1
A-32	PCVH4504B09588	Cableveyor link	33
A-33	PCVE4504300088	Cableveyor end bracket	1
A-34	M200GGA1007ZZ0	Cableveyor plate	1
A-35	M300VLF1050ZZ0	Helical rack	1
A-36	M200HFA1021ZZ0	Bracket	1
A-37	M200HFA1022MC0	Bracket	1
A-38	PSSMRS52SH8888	Magnet sensor	1
A-39	M300VLF1011ZZ0	Cover	2
A-40	MXAKAAB1000000	Counter	1
A-41	PAXSTAW4000AS5	Filter regulator	1
A-42	M020HFA1021PW0	Plate	1
A-43	M130HFA1013PW0	Spacer	1
