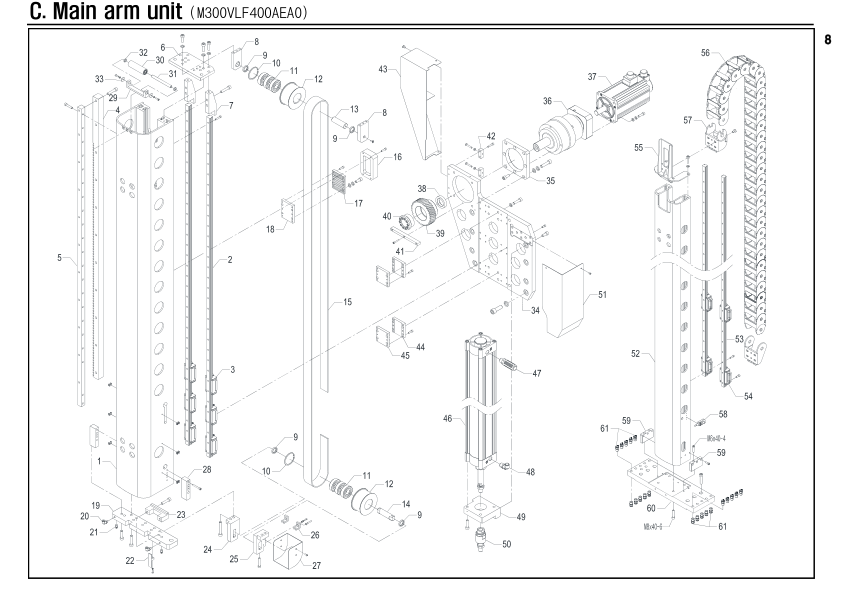

Main arm unit

Unit Number: M300VLF400AEA0

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity
C-1	M300VLF4002MC0	File	1
C-2	PLMRSAH251970A	LM rail	2
C-3	PLMBSAH25AL888	LM block	6
C-4	M300VLF4020MC0	Helical rack	1
C-5	M300VLF4021ZZ0	Rack bracket	1
C-6	M250ULA4004ZZ0	Plate	1
C-7	M200HFA4031ZZ0	Block	2
C-8	M200HFA4005ZZ0	Pulley block	2
C-9	M200HFA4039ZZ0	Collar	4
C-10	PRGH062H888888	Snap ring	1
C-11	PBRA6305ZZ8888	Bearing	6
C-12	M200HFA4007ZZ0	Idle roller	2
C-13	M200HFA4006ZZ0	Roller shaft	1
C-14	M200HFA4040ZZXA	Roller shaft	1
C-15	PBLTA105008888	Timing belt	4330
C-16	M200HFA4048MC0	Block	1
C-17	M200HFA4014MC0	Belt gripper	1
C-18	M200HFA4013ZZ0	Belt gripper	1
C-19	M300VLF4008ZZ0	Plate	1
C-20	PAXFEL06180888	Fitting	2
C-21	PAXFGPA1888888	Grease Nipple	2
C-22	M250ULA4040ZZ1	Plate	1
C-23	M250ULA4053ZZ0	Block	1
C-24	M200HFA4010ZZXA	Block	1
C-25	M200HFA4011ZZXA	Block	1
C-26	M130HFA4065ZZXA	Bracket	2
C-27	M200HFA4034ZZ0	Cover	1
C-28	M250JFS4027ZZ0	Block	2
C-29	M200ULS4056ZZ0	Roller block	1
C-30	PBRORLA3012100	Roller	1
C-31	M200ULS4057ZZ0	Pin	1
C-32	MS55TW45006ZB0	Collar	2
C-33	M080HFB6013ZZ0	Collar	2
C-34	M300VLF4001ZZ0	Plate	1
C-35	M250ULA4017ZZ0	Plate	1
C-36	PRESAE15152PD40	Reducer	1
C-37	PMTBMSME502GCH	Servo motor	1
C-38	M300VLF4011ZZ0	Collar	1
C-39	M300ULE4009ZZ0	Helical gear	1
C-40	PPLMDR133B4065	Power lock	1
C-41	M250ULA4022ZZ0	Block	1
C-42	M250ULA4013ZZ0	Block	2
C-43	M300VLF4036ZZ0	Cover	1
C-44	M250ULA4012ZZ0	Belt Gripper	2
C-45	M130MAA4014MC0	Belt Gripper	2
C-46	PAXADNC1001550	Cylinder	1
C-47	PAXZSILENCER12	Silincer	1
C-48	PAXFEL12120888	Fitting	1
C-49	M300VLF4032ZZ0	Block	1
C-50	PAXFKM20X15888	Floating joing	1
C-51	M300VLF4037ZZ0	Cover	1
C-52	M300VLF4003MC0	File	1
C-53	PLMRSAH201970L	LM rail	2
C-54	PLMBSAH20EM888	LM block	4
C-55	M250ULB4029ZZ2	Bracket	1
C-56	PCVH6251B12588	Cableveyor link	34
C-57	PCVE6251300088	Cableveyor end bracket	1
C-58	PSSRHYP18S5NAF	Sensor	1
C-59	M250QFS4053ZZ0	Block	2
C-60	M300QLA4052ZZ0	Plate	1
C-61	PAXFEC08140888	Fitting	20
