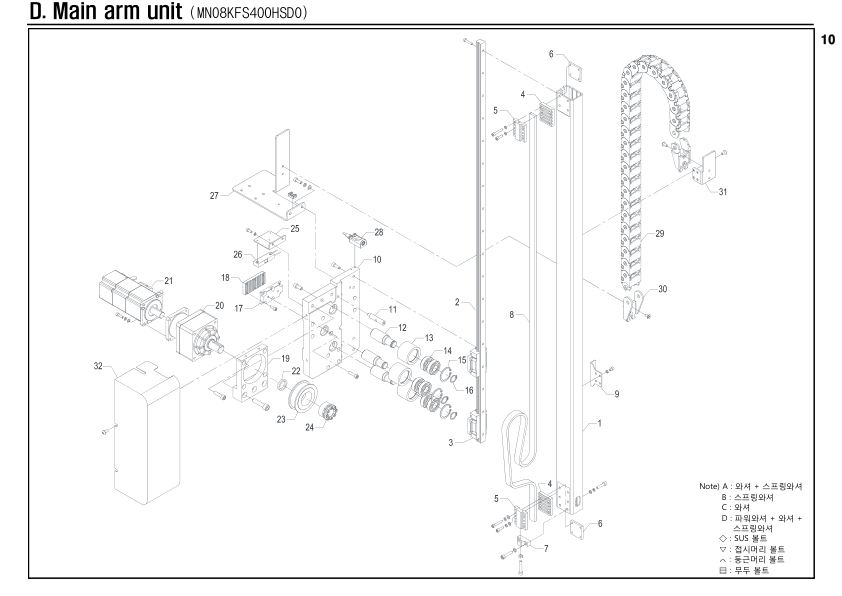

Main arm unit
Unit Number: MN08KFS400HSD0
Robot: ZEST-E-200D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| D-1 | MN08KFS4002MC2 | File | 1 | |
| D-2 | PMLRHGR15R1060 | LM rail | 1 | |
| D-3 | PLMBQHW15CC888 | LM block | 2 | |
| D-4 | MN08KFB4033MC0 | Belt gripper | 2 | |
| D-5 | MN08KFB4016ZZ0 | Gripper block | 2 | |
| D-6 | MN08KFB3053ZZ0 | Nut | 2 | |
| D-7 | MN08KFB4044ZZ0 | Tension block | 1 | |
| D-8 | PBLTU8M1588888 | Timing belt | 1488 | |
| D-9 | MN20KFA4039ZZ0 | Bracket | 1 | |
| D-10 | MN08KFA4001ZZ0 | Plate | 1 | |
| D-11 | M015MAB3025ZZ0 | Shaft | 1 | |
| D-12 | MN20KFA3009ZZ0 | Shaft | 3 | |
| D-13 | M015MAB3011ZZ0 | Roller | 3 | |
| D-14 | PBRA6002ZZ8888 | Bearing | 6 | |
| D-15 | PRGH032H888888 | Snap ring | 3 | |
| D-16 | PRGS015S888888 | Snap ring | 3 | |
| D-17 | MN08KFA4032ZZ0 | Bracket | 1 | |
| D-18 | MN20KFA4031MC0 | Belt gripper | 1 | |
| D-19 | MN08KFA4013ZZ0 | Plate | 1 | |
| D-20 | PRESSF5CPB0488 | Reducer | 1 | |
| D-21 | PMTBMSMD042G1T | Servo motor | 1 | |
| D-22 | MN08KFA4005ZZ0 | Collar | 1 | |
| D-23 | MN08KFA4012ZZ0 | Timing pulley | 1 | |
| D-24 | PPLMMA19338888 | Power lock | 1 | |
| D-25 | MN08KFA4017MC0 | Bracket | 1 | |
| D-26 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| D-27 | MN08KFB4034ZZ0 | Bracket | 1 | |
| D-28 | PSSRHYP18S5NA | Sensor | 1 | |
| D-29 | PCVH3202B07588 | Cableveyor link | 26 | |
| D-30 | PCVE3202300088 | Cableveyor end bracket | 1 | |
| D-31 | MN20BDA4010ZZ0 | Cableveyor bracket | 1 | |
| D-32 | MN08KFA4042ZZ0 | Cover | 1 |
