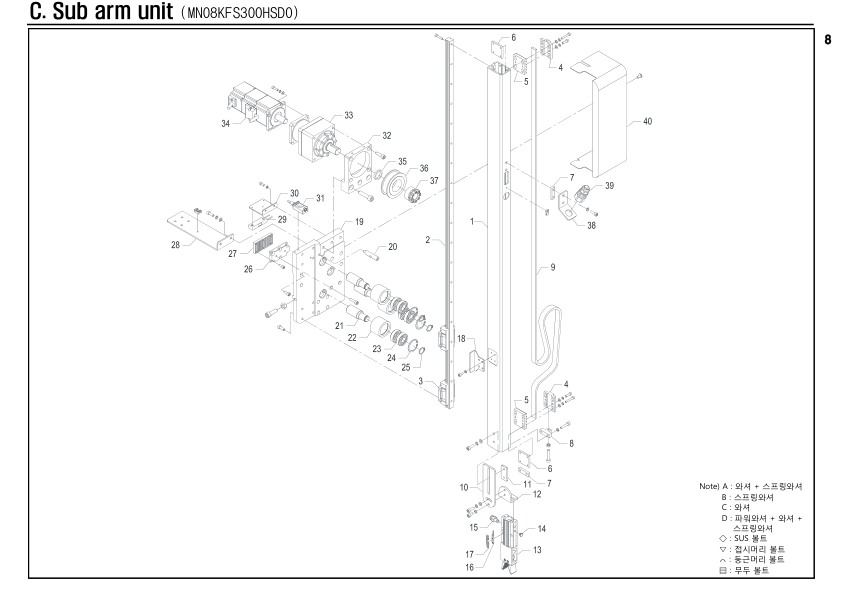

Sub arm unit

Unit Number: MN08KFS300HSD0

Robot: ZEST-E-200D 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
C-1	MN20QLE3002MC0	File	1
C-2	PMLRHGR15R1110	LM rail	1
C-3	PLMBQHW15CC888	LM block	2
C-4	MN08KFB4016ZZ0	Gripper block	2
C-5	MN08KFB4033MC0	Belt gripper	2
C-6	MN08KFB3053ZZ0	Nut	2
C-7	MN08KFA3054ZZ0	Nut	2
C-8	MN08KFB4044ZZ0	Tension block	1
C-9	PBLTU8M1588888	Timing belt	1368
C-10	M015MAA3902MF0	Gripper bracket	1
C-11	M015MAA3903MF0	Gripper bracket nut	1
C-12	MS55AT34005ZC0	Gripper bracket B	1
C-13	PAXAHYCITYPE88	Hy air chuck(I-type)	1
C-14	PAXFBBPM588888	Plug	1
C-15	PAXFEC06M58888	Fitting	1
C-16	PSSMSHYCDA9388	Auto switch	1
C-17	MS55AT44302ZZ0	Sensor bracket	1
C-18	MN20KFA4039ZZ0	Bracket	1
C-19	MN08KFB3001ZZ0	Plate	1
C-20	M015MAB3025ZZ0	Shaft	1
C-21	MN20KFA3009ZZ0	Shaft	3
C-22	M015MAB3011ZZ0	Roller	3
C-23	PBRA6002ZZ8888	Bearing	6
C-24	PRGH032H888888	Snap ring	3
C-25	PRGS015S888888	Snap ring	3
C-26	MN08KFA4032ZZ0	Bracket	1
C-27	MN20KFA4031MC0	Belt gripper	1
C-28	MN08KFB3046ZZ0	Bracket	1
C-29	PSSMRS52SH8888	Magnet sensor	1
C-30	MN08KFA4017MC0	Bracket	1
C-31	PSSRHYP18S5NAF	Sensor	1
C-32	MN08KFA4013ZZ0	Plate	1
C-33	PRESSF5CPB0488	Reducer	1
C-34	PMTBMSMD042G1T	Servo motor	1
C-35	MN08KFA4005ZZ0	Collar	1
C-36	MN08KFA4012ZZ0	Timing pulley	1
C-37	PPLMMA19338888	Power lock	1
C-38	MN08KFA3023ZZ0	Bracket	1
C-39	PAXFKFE12N0388	Fitting	1
C-40	MN08KFA3042ZZ0	Cover	1
