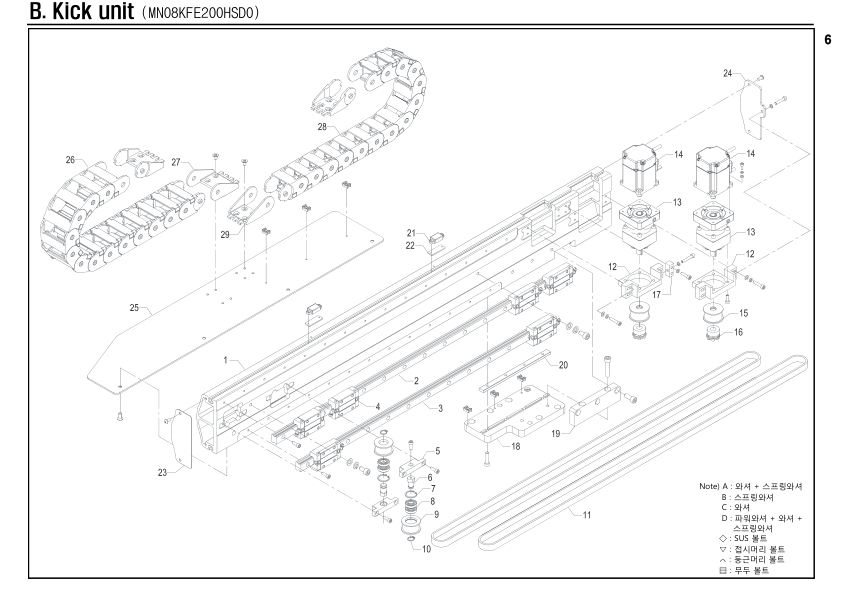

Kick unit
Unit Number: MN08KFE200HSD0
Robot: ZEST-E-200D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| B-1 | MN08KFB2001MC0 | File | 1 | |
| B-2 | PMLREGR20R0880 | LM rail | 1 | |
| B-3 | PMLREGR20R0760 | LM rail | 1 | |
| B-4 | PLMBQEH20CA888 | LM block | 6 | |
| B-5 | MN08KFA2045ZZ0 | Roller block | 2 | |
| B-6 | MN08KFA2042ZZ0 | Shaft | 2 | |
| B-7 | PRGH024H888888 | Snap ring | 2 | |
| B-8 | PBRA6901ZZ8888 | Bearing | 4 | |
| B-9 | MN20KFA2043ZZ0 | Idle roller | 2 | |
| B-10 | PRGS012S888888 | Snap ring | 2 | |
| B-11 | PBLTU5M1588888 | Timing belt | 1970 | |
| B-12 | MN08KFA2015ZZ0 | Motor plate | 2 | |
| B-13 | PRES52Z050SA02 | Reducer | 2 | |
| B-14 | PMTBMA201N2TN5 | Servo motor | 2 | |
| B-15 | MN20KFA2040ZZ1 | Pulley | 2 | |
| B-16 | PPLMMA12268888 | Power lock | 2 | |
| B-17 | MN08KFA2047ZZ0 | Tension block | 1 | |
| B-18 | MN08KFA2005ZZ0 | Base | 1 | |
| B-19 | MN08KFA2020ZZ0 | Plate | 1 | |
| B-20 | MN08KFA2014ZZ0 | Nut | 1 | |
| B-21 | PSSMRS52SHC888 | Magnet | 2 | |
| B-22 | M015MAB2035MC0 | Nut key | 2 | |
| B-23 | MN08KFA2021ZZ0 | Cover | 1 | |
| B-24 | MN08KFA2022ZZ0 | Cover | 1 | |
| B-25 | MN08KFA2008ZZ0 | Bracket | 1 | |
| B-26 | PCVH4502307588 | Cableveyor link | 14 | |
| B-27 | PCVE4502300088 | Cableveyor end bracket | 1 | |
| B-28 | PCVH4501B07588 | Cableveyor link | 14 | |
| B-29 | PCVE4501300088 | Cableveyor end bracket | 1 |
