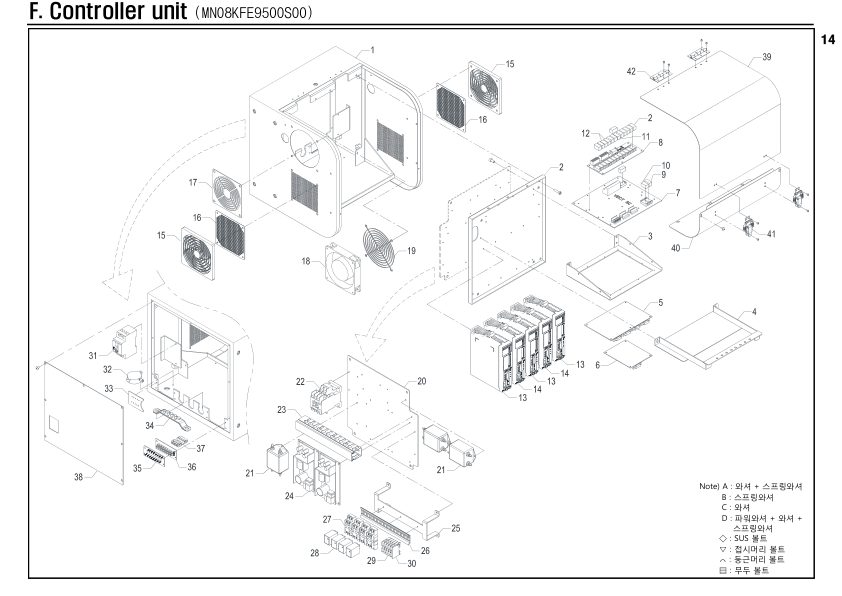

Controller unit

Unit Number: MN08KFE9500S00

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity
F-1	MN08KFA9002ZZ0	Body	1
F-2	MN08KFA9003ZZ0	Plate	1
F-3	M020DFF9005ZZ0	Board bracket	1
F-4	MN20KFA9028ZZ1	Plate	1
F-5	PBDDMOTION8888	Board	1
F-6	PBDDVECT1X8888	Board	1
F-7	PBDDSC88888888	Board	1
F-8	PBDDIL88888888	Board	1
F-9	PRL1174PFDUS242	Relay	12
F-10	PRL2114PUS2488	Relay	1
F-11	PRL2014PUS2488	Relay	1
F-12	PRL2214PUS2488	Relay	2
F-13	PMTXDA22411888	S ervo drive	3
F-14	PMTXDA21211888	S ervo drive	2
F-15	PEXFFILTER102F	Fan filter	2
F-16	PEXFFILTER120S	Fan filter	2
F-17	PEXFSJ12COVER8	Fan cover	1
F-18	PEXFSJ1238HA28	Fan	1
F-19	PEXFS105105888	Fan cover	1
F-20	MN08KFA9010ZZ0	Plate	1
F-21	PFTEDITES1T010	Noise filter	3
F-22	PNSEGMC1288888	Contactor	1
F-23	MN08KFA9025MC0	Duct-30	1
F-24	PSMASMPS000188	SMPS	2
F-25	MN08KFA9005ZZ0	Plate	1
F-26	M020KFA9020MC0	Terminal channel	1
F-27	PRLKLY28888888	Relay socket	4
F-28	PRLALY2N1DC248	Relay	4
F-29	PTLD0600015288	Terminal	5
F-30	PTLD0600015888	Separator	1
F-31	PNSC32KGRC1588	Circuit breaker	1
F-32	ES55TW4610060E	Buzzer cable	1
F-33	M020HFA9032ZZ0	Cover	1
F-34	PEXELEBAR14588	Earth Bar	1
F-35	M020HFA9023MC0	Plate	1
F-36	PBDCLEDVECT888	Board	1
F-37	E020PFA8040060	Cable	1
F-38	MN08KFA9012ZZ0	Cover	1
F-39	MN08KFA9013ZZ0	Cover	1
F-40	MN08KFA9014ZZ0	Cover	1
F-41	PMXBY117888888	Hook	2
F-42	PMXBYHS1560888	Hinge	2
