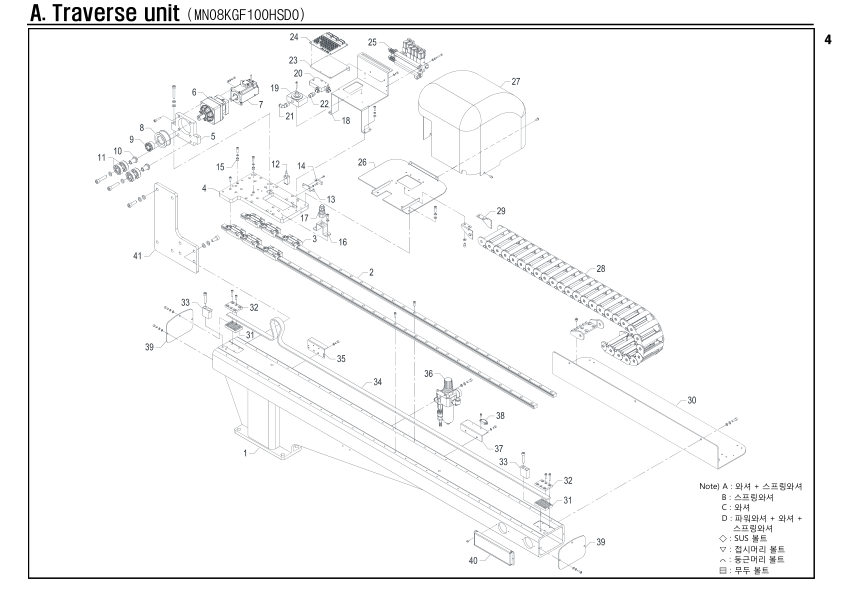

Traverse unit
Unit Number: MN08KGF100HSD0
Robot: ZEST-E-200D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| A-1 | MN08KGF1001PW0 | Body | 1 | |
| A-2 | PMLREGR20R1780 | LM rail | 2 | |
| A-3 | PLMBQEH20CA888 | LM block | 6 | |
| A-4 | MN08KFA1012ZZ0 | Base | 1 | |
| A-5 | MN20BDF1004ZZ0 | Motor bracket | 1 | |
| A-6 | PRES78Z090SA04 | Reducer | 1 | |
| A-7 | PMTBMA401N2TN5 | Servo motor | 1 | |
| A-8 | MN08KFA1005ZZ0 | Timing pulley | 1 | |
| A-9 | PPLMMA19338888 | Power lock | 1 | |
| A-10 | MN20BDA1007ZZ0 | Collar | 2 | |
| A-11 | PBRA6302ZZ8888 | Bearing | 4 | |
| A-12 | PSSRHYP18S5NAF | Sensor | 1 | |
| A-13 | M030SBB1017MC0 | Bracket | 1 | |
| A-14 | PSSMRS1SH88888 | Sensor | 1 | |
| A-15 | PBRNFJ69ZZ8888 | Roller bearing | 2 | |
| A-16 | MN08KFA1028ZZ0 | Bracket | 1 | |
| A-17 | PAXFKFE12N0388 | Fitting | 1 | |
| A-18 | MN08KFB2029ZZ0 | Plate | 1 | |
| A-19 | PAXVAF05888888 | Air filter | 1 | |
| A-20 | PAXVAV015HS888 | Vacuum pump | 1 | |
| A-21 | PAXFEL06140888 | Fitting | 1 | |
| A-22 | PAXFDOUBLEPT14 | Fitting | 1 | |
| A-23 | M040FFA2038ZZ0 | Plate | 1 | |
| A-24 | PBDCIFVECT8888 | Board | 1 | |
| A-25 | MN20KFA2100000 | Solenoid valve unit | 1 | |
| A-26 | MN08KFA1014ZZ0 | Plate | 1 | |
| A-27 | MN08KFA1015MD0 | Cover | 1 | |
| A-28 | PCVH4504B07588 | Cableveyor link | 27 | |
| A-29 | PCVE4504300088 | Cableveyor end bracket | 1 | |
| A-30 | MN08KGA1003ZZ0 | Plate | 1 | |
| A-31 | M020KFC3033MC0 | Gripper | 2 | |
| A-32 | M015MAB3016ZZ0 | Gripper block | 2 | |
| A-33 | M040DAA1002ZZ0 | Stopper | 2 | |
| A-34 | PBLTU8M2088888 | Timing belt | 2048 | |
| A-35 | MN20BDA1017ZZ0 | Plate | 1 | |
| A-36 | PAXSTAW3000AS4 | Filter regulator | 1 | |
| A-37 | MN20BDC1028ZZ0 | Sensor plate | 1 | |
| A-38 | PSSMRS52SHC888 | Magnet | 1 | |
| A-39 | MN08KFA1025ZZ0 | Cover | 2 | |
| A-40 | MXAKAAB6000000 | Counter | 1 | |
| A-41 | MN08KFA1021PW0 | Plate | 1 |
