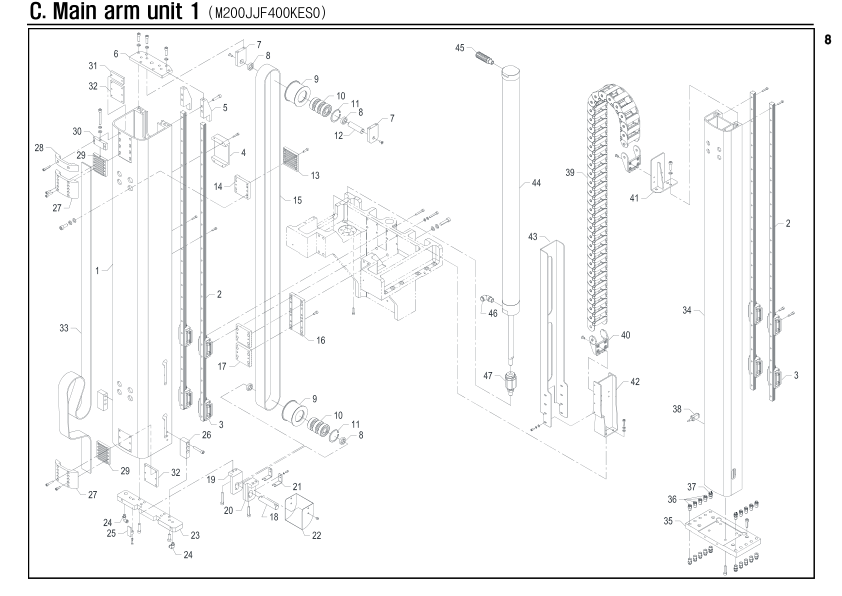

Main arm unit

Unit Number: M200JJF400KES0

Robot: NEXIA-2000S 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
C-1	M200HJA4002MC0	File	1
C-2	PLMRSHS201480L	LM rail	4
C-3	PLMBSHS20CKZ18	LM block	8
C-4	M130HFA4048MC0	Gripper block	1
C-5	M130HFA4031ZZ0	Block	2
C-6	M130MAA4004ZZ0	Plate	1
C-7	M130MAA4005ZZ0	Pulley block	2
C-8	M130HFA4039ZZ0	Collar	4
C-9	M130HFA4007ZZ0	Idle roller	2
C-10	PBRA6304ZZ8888	Bearing	6
C-11	PRGH052H888888	Snap ring	5
C-12	M130HFA4006ZZ0	Roller shaft	1
C-13	M130HFA4014MC0	Belt gripper	1
C-14	M130HFA4013ZZ0	Belt gripper	1
C-15	PBLTA105008888	Timing belt	3510
C-16	M130MAA4012ZZ0	Belt gripper	1
C-17	M130MAA4014MC0	Belt Gripper	2
C-18	M130HFA4026ZZ0	Roller shaft	1
C-19	M130MAA4010ZZ0	Block	1
C-20	M130MAA4011ZZ0	Block	1
C-21	M130HFA4065ZZ0	Bracket	2
C-22	M130MAA4033ZZ0	Pulley cover	1
C-23	M130HFA4008ZZ0	Plate	1
C-24	PAXFEL06180888	Fitting	3
C-25	M130HFA4040ZZ0	Plate	1
C-26	M130MAA4009ZZ0	Block	2
C-27	M130MAA4021MC0	Belt gripper	2
C-28	M130MAA4025MC0	Block	1
C-29	M130MAA4020MC0	Belt gripper	2
C-30	M130MAA4024ZZ0	Tension block	1
C-31	M130MAA4023ZZ0	Plate	1
C-32	M130MAA4022ZZ0	Plate	2
C-33	PBLTA105008888	Timing belt	2170
C-34	M200HJA4003MC0	File	1
C-35	M130GAA4026ZZ0	Plate	1
C-36	PAXFEC06140888	Fitting	16
C-37	PAXFEC08140888	Fitting	4
C-38	PSSRHYP18S5NAF	Sensor	1
C-39	PCVH4502309535	Cableveyor link	1
C-40	PCVE4502300088	Cableveyor end bracket	1
C-41	M130HFA4029ZZ0	Bracket	1
C-42	M130HFB4028ZZ0	Cableveyor bracket	1
C-43	M130HFA4046ZZ0	Plate	1
C-44	PAXA3642010821	Cylinder	1
C-45	PAXZSILENCER38	Silencer	1
C-46	PAXFEL12380888	Fitting	1
C-47	PCPJFK16888888	Floating joing	1
C-48	M130HFA4001MC0	Base	1
C-49	M130MAA4015ZZ0	Block	1
C-50	M130MAA4016ZZ0	Block	1
C-51	M130HFB4017MC0	Motor block	1
C-52	PBRA6913ZZ8888	Bearing	1
C-53	PPLMMA32508888	Power lock	1
C-54	M130MAA4018ZZ0	Timing pulley	1
C-55	M130HFB2005MC0	Collar	1
C-56	PRESB11515PD20	Reducer	1
C-57	PMTBMSME152GCH	Servo motor	1
C-58	M130MAA4030ZZ0	Guide shaft	1
C-59	PBRA6000ZZ8888	Bearing	1
C-60	PRGS010S888888	Snap ring	1
C-61	M130HFA2005ZZ0	Idle shaft	3
C-62	M130MAA4044ZZ0	Roller	3
C-63	PBRA6205ZZ8888	Bearing	9
C-64	M130MAA4042ZZ0	Collar	3
C-65	M130HFA4034ZZ0	Cover	1
C-66	M130FFA4030ZZ0	Block	1
C-67	PAXAIDFW32AS25	Cylinder	1	ISTC IDFW32A-S25
C-68	PAXFESC0618888	Speed controller	1	ESC06PT18-I
C-69	M130HFA4038ZZ0	Cover	1
C-70	PAXFPMM0688888	Fitting	6	SANG_A PMM-06
C-71	PAXFPMM0888888	Fitting	4	SANG_A PMM-08
C-72	M130HFA4027ZZ0	Bracket	1
C-73	M130HFA4035ZZ0	Cover	1
C-74	M130MAA4037ZZ0	Cover	1
C-75	M130MAA4036ZZ0	Cover	1
