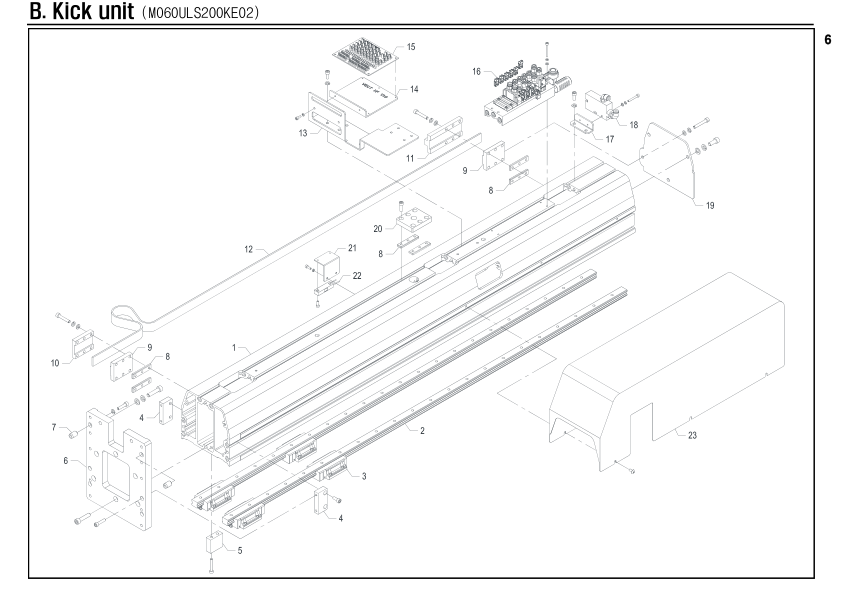

Kick unit
Unit Number: M060ULS200KE02
Robot: NEXIA-600SW 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| B-1 | M060ULA2001MC0 | Frame | 1 | |
| B-2 | PLMRSHS201320L | LM rail | 2 | |
| B-3 | PLMBSHS20CKZ18 | LM block | 4 | |
| B-4 | M060ULA2020ZZ0 | Plate | 2 | |
| B-5 | M060ULS2011ZZ0 | Stopper | 1 | |
| B-6 | M060ULA2002MC0 | Plate | 1 | |
| B-7 | M080ULA2020ZZ0 | Pin | 2 | |
| B-8 | M060ULA2011ZZ0 | Nut | 6 | |
| B-9 | M060ULA2031MC0 | Gripper | 2 | |
| B-10 | M060ULA2032ZZ0 | Gripper block | 1 | |
| B-11 | M060ULA2016ZZ0 | Gripper block | 1 | |
| B-12 | PBLTU5M2588888 | Timing belt | 1510 | |
| B-13 | M060ULA2012ZZ0 | Bracket | 1 | |
| B-14 | M040FFA2038ZZ0 | Plate | 1 | |
| B-15 | PBDCIFVECT8888 | Board | 1 | |
| B-16 | M080ULA2100001 | Solenoid valve unit | 1 | |
| B-17 | M060ULA2024ZZ0 | Bracket | 1 | |
| B-18 | PAXVAV015HS888 | Vacuum pump | 1 | |
| B-19 | M060ULA2009ZZ0 | Cover | 1 | |
| B-20 | M060ULA2030ZZ0 | Plate | 1 | |
| B-21 | M060ULA1017MC0 | Bracket | 1 | |
| B-22 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| B-23 | M060ULA2013ZZ0 | Cover | 1 |
