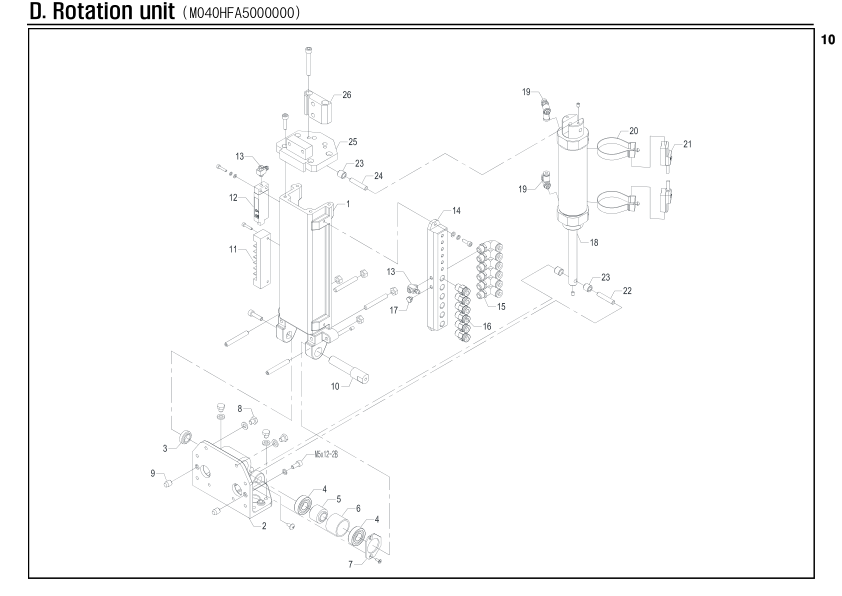

Rotation unit
Unit Number: M040HFA5000000
Robot: NEXIA-600SW 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| D-1 | M040HFA5002PW0 | Block | 1 | |
| D-2 | M040HFA5003ZZ0 | Rot plate | 1 | |
| D-3 | M040HFA5006ZZ0 | Collar | 1 | |
| D-4 | PBRA6001ZZ8888 | Bearing | 2 | |
| D-5 | M035HAA5004ZZ0 | Collar | 1 | |
| D-6 | M035HAA5006ZZ0 | Collar | 1 | |
| D-7 | M035HAA5008ZZ0 | Plate | 1 | |
| D-8 | M040HFA5025ZZ0 | Bolt | 4 | |
| D-9 | M035HAA5012ZZ0 | Pin | 2 | |
| D-10 | M035HAA5003ZZ0 | Pin | 1 | |
| D-11 | PTLA07P8888888 | Terminal | 1 | |
| D-12 | PAXVPS6102VNAM | Sensor | 1 | |
| D-13 | PAXFBUVLM56888 | Nipple | 2 | |
| D-14 | M040HFA5004ZZ1 | Air block | 1 | |
| D-15 | PAXFEL06180888 | Fitting | 6 | |
| D-16 | PAXFEC06180888 | Fitting | 6 | |
| D-17 | PAXFBBPM588888 | Plug | 1 | |
| D-18 | PAXA3548400888 | Cylinder | 1 | |
| D-19 | PAXFESC04M5888 | Speed controller | 2 | |
| D-20 | PSSOROSWBAND88 | Sensor band | 2 | |
| D-21 | PSSOROSW888888 | Sensor | 2 | |
| D-22 | PMXPSFJ6328888 | Shaft | 1 | |
| D-23 | PBRNFJ69ZZ8888 | Roller bearing | 3 | |
| D-24 | M035HAA5009MC0 | Pin | 1 | |
| D-25 | M040HFA5016ZZ0 | Block | 1 | |
| D-26 | M040HFA5005ZZ0 | Block | 1 |
