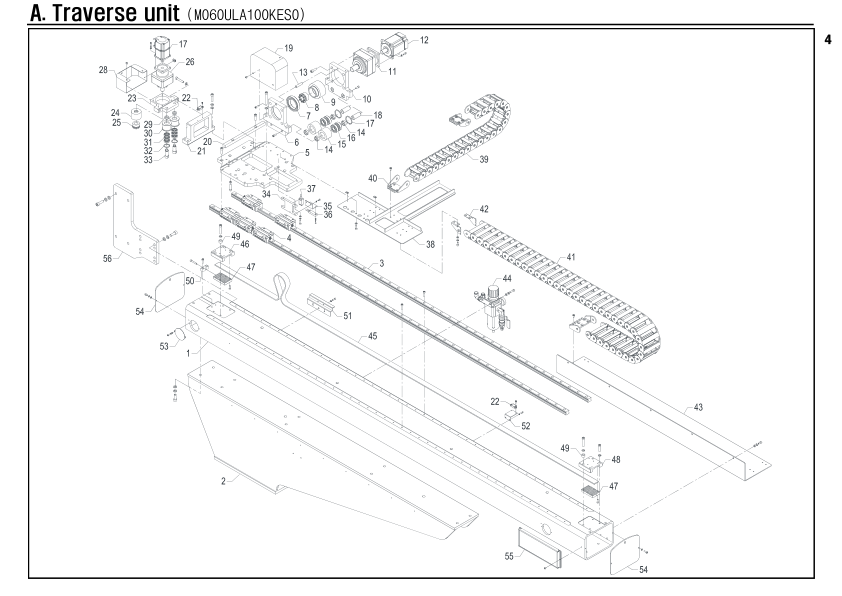

Traverse unit
Unit Number: M060ULA100KES0
Robot: NEXIA-600SW 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| A-1 | M060ULA1001PW0 | Body | 1 | |
| A-2 | M060ULA1002PW0 | Frame | 1 | |
| A-3 | PLMRSHS252500L | LM rail | 2 | |
| A-4 | PLMBSHS25CKZ18 | LM block | 5 | |
| A-5 | M060ULA1012ZZ0 | LM base | 1 | |
| A-6 | M060ULA1006ZZ0 | Bracket | 1 | |
| A-7 | PBRA6911ZZ8888 | Bearing | 1 | |
| A-8 | PPLMMA24428888 | Power lock | 1 | |
| A-9 | M015MAB2006ZZ0 | Timing pulley | 1 | |
| A-10 | M060ULA1004ZZ0 | Bracket | 1 | |
| A-11 | PRESSFS9DPB088 | Reducer | 1 | |
| A-12 | PMTBMSMD082G1S | Servo motor | 1 | |
| A-13 | M060ULA1007ZZ0 | Shaft | 1 | |
| A-14 | M035HAA2008ZZ0 | Collar | 4 | |
| A-15 | M015MAB2010MC0 | Idle roller | 2 | |
| A-16 | PBRA6004ZZ8888 | Bearing | 4 | |
| A-17 | PRGH042H888888 | Snap ring | 2 | |
| A-18 | M060ULA2007ZZ0 | Shaft | 2 | |
| A-19 | M060ULA1020ZZ0 | Cover | 1 | |
| A-20 | M060QLS1024MC0 | Plate | 1 | |
| A-21 | M060ULA2006ZZ0 | Block | 1 | |
| A-22 | PSSMRS52SHC888 | Magnet | 2 | |
| A-23 | M060ULA1005ZZ0 | Bracket | 1 | |
| A-24 | M040HFB2017ZZ0 | Pulley | 1 | |
| A-25 | PPLMMA19338888 | Power lock | 1 | |
| A-26 | PRESSFS9CPB048 | Reducer | 1 | |
| A-27 | PMTBMSMD042G1S | Servo motor | 1 | |
| A-28 | M060ULA1021ZZ0 | Cover | 1 | |
| A-29 | M035HAA2035ZZ0 | Collar | 2 | |
| A-30 | M035HAA2019ZZ0 | Idle roller | 2 | |
| A-31 | PBRA6902ZZ8888 | Bearing | 6 | |
| A-32 | PRGH028H888888 | Snap ring | 2 | |
| A-33 | M035HAA2034ZZ0 | Shaft | 2 | |
| A-34 | M040JJS1004ZZ0 | Block | 1 | |
| A-35 | M015MAB1017MC0 | Bracket | 1 | |
| A-36 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| A-37 | PSSRHYP18S5NAF | Sensor | 1 | |
| A-38 | M060ULA2039ZZ0 | Cableveyor plate | 1 | |
| A-39 | PCVH4502B07588 | Cableveyor link | 21 | |
| A-40 | PCVE4502300088 | Cableveyor end bracket | 1 | |
| A-41 | PCVH4504B09588 | Cableveyor link | 38 | |
| A-42 | PCVE4504300088 | Cableveyor end bracket | 1 | |
| A-43 | M060ULA1010ZZ0 | Cableveyor plate | 1 | |
| A-44 | PAXSTAW4000AS2 | Filter regulator | 1 | |
| A-45 | PBLTA103008888 | Timing belt | 3000 | |
| A-46 | M015MAB1004ZZ0 | Gripper block | 1 | |
| A-47 | M015MAB1002MC0 | Gripper | 2 | |
| A-48 | M015MAB1009ZZ0 | Gripper block | 1 | |
| A-49 | M015MAB1016ZZ0 | Block | 4 | |
| A-50 | M055MAA1004NI0 | Tension block | 1 | |
| A-51 | M060RLA1007ZZ0 | Bracket | 1 | |
| A-52 | M015MAB1018MC0 | Bracket | 1 | |
| A-53 | MXAKAAB1004ZZ0 | Cover | 1 | |
| A-54 | MN20KFG1025ZZ0 | Bracket | 2 | |
| A-55 | MXAKAAB1000000 | Counter | 1 | |
| A-56 | MN20TEA1021PW0 | Plate | 1 |
