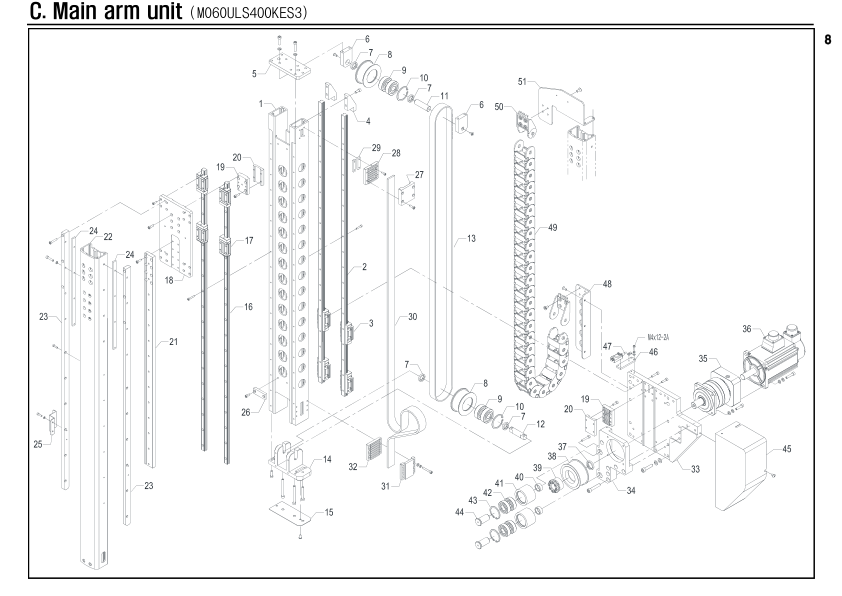

Main arm unit

Unit Number: M060ULS400KES3

Robot: NEXIA-600SW 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
C-1	M060ULS4006MCXA	File	1
C-2	PLMRSHS151090L	LM rail	2
C-3	PLMBSHS15CKZ18	LM block	4
C-4	M060ULS4056ZZ0	Block	2
C-5	M060ULS4010ZZ0	Block	1
C-6	M060ULS4018ZZ0	Block	2
C-7	M060ULS4021ZZ0	Collar	4
C-8	M060ULS4025ZZ0	Roller	2
C-9	PBRA6303ZZ8888	Bearing	4
C-10	PRGH047H888888	Snap ring	2
C-11	M060HFA4021ZZ0	Shaft	1
C-12	M060ULS4008ZZ0	Shaft	1
C-13	PBLTU5M2588888	Timing belt	2380
C-14	MH30ESA4010ZZ0	Block	1
C-15	MH35FAA4028ZZ0	Cover	1
C-16	PLMRSSR151090L	LM rail	2
C-17	PLMBSSR15XWKZ0	LM block	4
C-18	M060ULS4014ZZ0	Plate	1
C-19	MH35FAA4012MC0	Gripper	2
C-20	MH35FAA4013ZZ0	Gripper block	2
C-21	M060ULS4026ZZXA	Block	1
C-22	M060ULS4007MCXC	File	1
C-23	M060ULS4022ZZXA	Block	2
C-24	M060ULS4023ZZ0	Nut	2
C-25	M060ULS4040ZZXB	Plate	1
C-26	MH30ESA4032ZZ0	Stopper	1
C-27	MH35FAA4025ZZ0	Block	1
C-28	MH30ESA4023MC0	Gripper	1
C-29	MH30ESA4016ZZ0	Nut	2
C-30	PBLTU8M3088888	Timing belt	1504
C-31	MH35FAA4015ZZ0	Block	1
C-32	MH30ESA4005MC0	Gripper	1
C-33	M060ULS4001ZZ0	Plate	1
C-34	M060ULS4013ZZ0	Plate	1
C-35	PRESB09009PD15	Reducer	1
C-36	PMTBMSME152GCH	Servo motor	1
C-37	M030BLA4011ZZ0	Collar	1
C-38	M060JJS4012ZZ2	Timing belt	1
C-39	PPLMMA22408888	Power lock	1
C-40	M060ULS4011ZZ0	Collar	2
C-41	M015MAB2010MC0	Idle roller	2
C-42	PBRA6004ZZ8888	Bearing	4
C-43	PRGH042H888888	Snap ring	2
C-44	M060ULS4009ZZ0	Idle shaft	2
C-45	M060ULS4036ZZ0	Cover	1
C-46	M060ULS4004ZZ0	Block	1
C-47	PSSRHYP18S5NAF	Sensor	1
C-48	M060ULS4028ZZ0	Bracket	1
C-49	PCVH4501B07588	Cableveyor link	27
C-50	PCVE4501300088	Cableveyor end bracket	1
C-51	M060ULS4047ZZ0	Bracket	1
