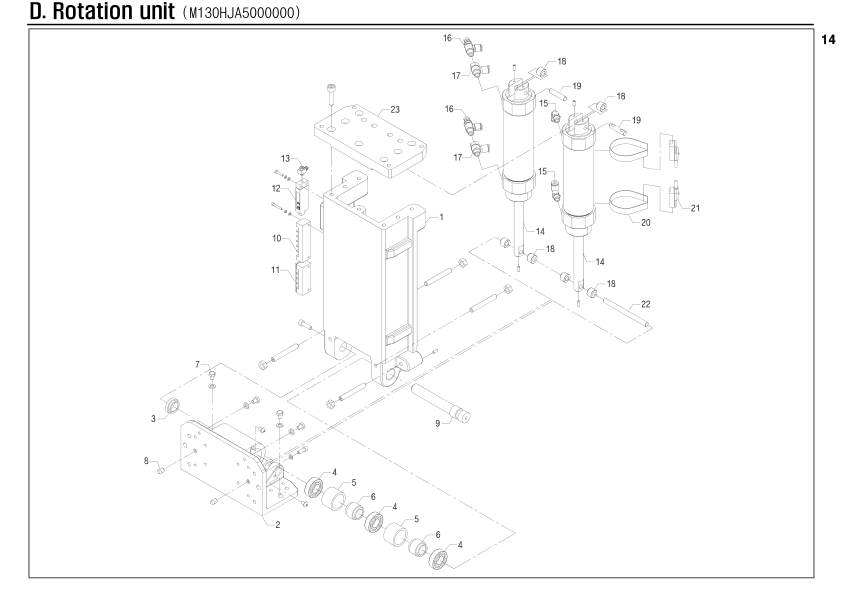

Rotation unit
Unit Number: M130HJA5000000
Robot: NEXIA-E-2000S 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| D-1 | M080HFA5002PW0 | Block | 1 | |
| D-2 | M080HFA5003MC0 | Plate | 1 | |
| D-3 | M080HFA5006ZZ0 | Collar | 1 | |
| D-4 | PBRA6003ZZ8888 | Bearing | 3 | |
| D-5 | M080HFA5010ZZ0 | Collar | 2 | |
| D-6 | M080HFA5011ZZ0 | Collar | 2 | |
| D-7 | PBTSM006008ZC0 | Bolt | 4 | |
| D-8 | M035HAA5012ZZ0 | Pin | 2 | |
| D-9 | M080HFA5004ZZ0 | Rotate pin | 1 | |
| D-10 | PTLA06P8888888 | Terminal | 1 | |
| D-11 | PTLA04P8888888 | Terminal | 1 | |
| D-12 | PAXVPS6102VNAM | Sensor | 1 | |
| D-13 | PAXFBUVLM56888 | Nipple | 1 | |
| D-14 | PAXA3589701088 | Cylinder | 2 | |
| D-15 | PAXFEL06180888 | Fitting | 2 | |
| D-16 | PAXFESC06PT188 | Speed controller | 2 | |
| D-17 | PAXFPHF0618088 | Fitting | 2 | |
| D-18 | PBRNHMK810ZZ88 | Roller bearing | 6 | |
| D-19 | M060HFA5009ZZ0 | Shaft | 2 | |
| D-20 | PSSO63BAND8888 | Sensor band | 2 | |
| D-21 | PSSOROSW888888 | Sensor | 2 | |
| D-22 | M080HFA5009ZZ0 | Linear shaft | 1 | |
| D-23 | M080HFA5016ZZ0 | Block | 1 |
