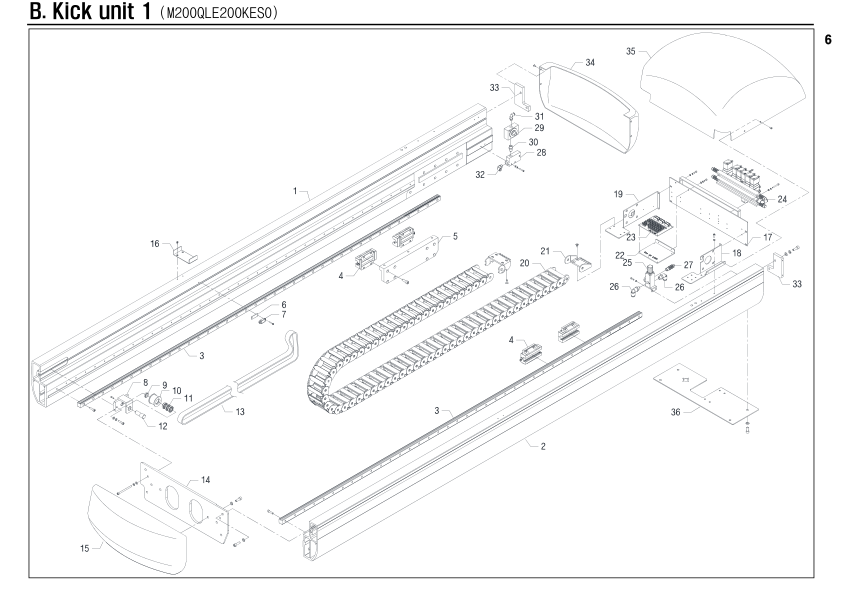

Kick unit
Unit Number: M200QLE200KES0
Robot: NEXIA-E-2000S 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| B-1 | M130HKA2001MC0 | File | 1 | |
| B-2 | M130HKA2002MC0 | File | 1 | |
| B-3 | PLMRSHS252260L | LM rail | 2 | |
| B-4 | PLMBSHS25CKZ18 | LM block | 4 | |
| B-5 | M080HFA2048ZZ0 | Plate A | 1 | |
| B-6 | M015MAB2035MC0 | Nut key | 1 | |
| B-7 | PSSMRS52SHC888 | Magnet | 1 | |
| B-8 | M130JJA2018ZZ0 | Tention block | 1 | |
| B-9 | M035HAA2035ZZ0 | Collar | 3 | |
| B-10 | M035HAA2019ZZ0 | Idle roller | 3 | |
| B-11 | PBRA6902ZZ8888 | Bearing | 9 | |
| B-12 | M130JJA2034ZZ0 | Shaft | 1 | |
| B-13 | PBLTU8M2588888 | Timing belt | 4992 | |
| B-14 | M080HFA2020ZZ0 | Pull out cover | 1 | |
| B-15 | M080HFA2021PW0 | Cover | 1 | |
| B-16 | M080HFA2036MC0 | Bracket | 1 | |
| B-17 | M080HFA2029ZZ0 | Solenoid valve boxbase C | 1 | |
| B-18 | M080HFA2023ZZ0 | Solenoid valve boxbase A | 1 | |
| B-19 | M080HFA2024ZZ0 | Solenoid valve boxbase B | 1 | |
| B-20 | PCVH4503B12588 | Cableveyor link | 60 | |
| B-21 | PCVE4503300088 | Cableveyor end bracket | 1 | |
| B-22 | M040FFA2038ZZ0 | Plate | 1 | |
| B-23 | PBDCIFVECT8888 | Board | 1 | |
| B-24 | M130JJA2100000 | Solenoid valve unit | 1 | |
| B-25 | PAXSVEX113302G | Regulator | 1 | |
| B-26 | PAXFEL12140888 | Fitting | 2 | |
| B-27 | PAXZSILENCER14 | Silincer | 1 | |
| B-28 | PAXVAV015HS888 | Vacuum pump | 1 | |
| B-29 | PAXVAF05888888 | Air filter | 1 | |
| B-30 | PAXFDOUBLEPT14 | Fitting | 1 | |
| B-31 | PAXFEL08180888 | Fitting | 1 | |
| B-32 | PAXFEL08140888 | Fitting | 1 | |
| B-33 | M080HFA2047ZZ0 | Cover_Block | 2 | |
| B-34 | M080HFA2046MD0 | B Cover | 1 | |
| B-35 | M080HFA2027MD0 | Solbox_Cover | 1 | |
| B-36 | M080HFA2022ZZ0 | Cableveyor plate | 1 | |
| B-37 | M080HFA2003MC0 | Slide base | 1 | |
| B-38 | M080HFA2014ZZ0 | Nut key | 2 | |
| B-39 | M080HFA2013ZZ0 | Nut key | 2 | |
| B-40 | M080HFA2033ZZ0 | Cover | 1 | |
| B-41 | M080HFA2015ZZ0 | Motor plate | 1 | |
| B-42 | PRESSFS9CPB048 | Reducer | 1 | |
| B-43 | PMTBMSMD042G1S | Servo motor | 1 | |
| B-44 | M080HFB2040ZZ0 | Pulley | 1 | |
| B-45 | PPLMMA19338888 | Power lock | 1 | |
| B-46 | PRGH028H888888 | Snap ring | 2 | |
| B-47 | M035HAA2034ZZ0 | Shaft | 2 | |
| B-48 | M080HFA2004MC0 | Horizontal motor bracket | 1 | |
| B-49 | PRESSFS9DPB088 | Reducer | 1 | |
| B-50 | PMTBMSMD082G1S | Servo motor | 1 | |
| B-51 | M080HFA2006ZZ0 | Timing pulley | 1 | |
| B-52 | PBRA6911ZZ8888 | Bearing | 1 | |
| B-53 | PPLMMA24428888 | Power lock | 1 | |
| B-54 | M035HAA2008ZZ0 | Collar | 2 | |
| B-55 | M080HFA2010ZZ0 | Roller | 2 | |
| B-56 | PBRA6304ZZ8888 | Bearing | 6 | |
| B-57 | PRGH052H888888 | Snap ring | 2 | |
| B-58 | M080HFA2007ZZ0 | Idle shaft | 2 | |
| B-59 | M080HFA2028MC0 | Block | 2 | |
| B-60 | M035HAA2026ZZ0 | Shaft | 2 | |
| B-61 | PBRA6000ZZ8888 | Bearing | 2 |
