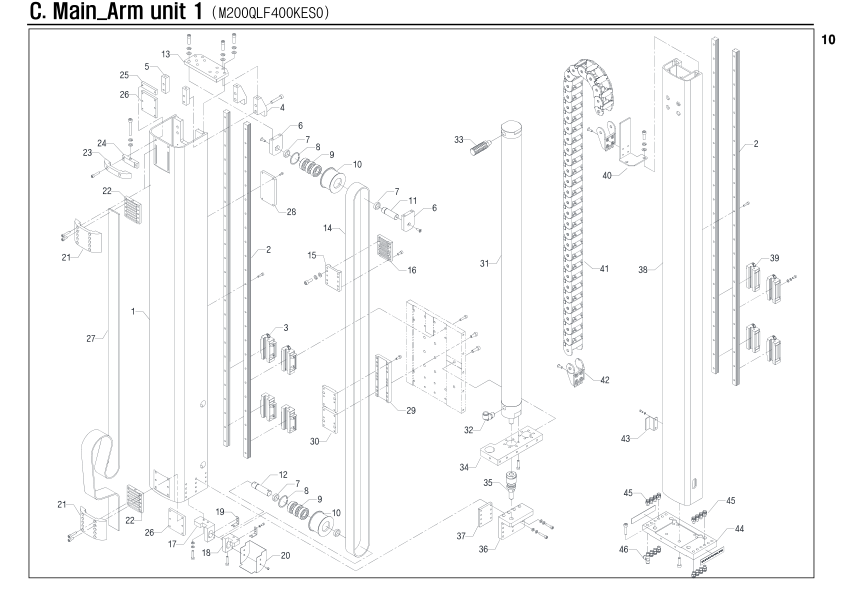

Main_Arm unit

Unit Number: M200QLF400KES0

Robot: NEXIA-E-2000S 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
C-1	M130TCA4006MC0	File	1
C-2	PLMRSHS201420L	LM rail	4
C-3	PLMBSHS20CKZ18	LM block	4
C-4	M080HFA4056ZZ0	Block	2
C-5	M080HFA4029ZZ0	Block	2
C-6	M080HFA4018ZZ0	Pulley block	2
C-7	M080HFA4038ZZ0	Collar	4
C-8	PRGH042H888888	Snap ring	2
C-9	PBRA6004ZZ8888	Bearing	6
C-10	M080HFA4021ZZ0	Idle roller	2
C-11	M080HFA4020ZZ0	Roller shaft	1
C-12	M080HFA4024ZZ0	Shaft	1
C-13	M080HFA4019ZZ0	Plate	1
C-14	PBLTA104088888	Timing belt	3230
C-15	M080HFA4017ZZ0	Gripper block	1
C-16	M080HFA4014MC0	Gripper	1
C-17	M080HFA4022ZZ0	Pulley block	1
C-18	M080HFA4023ZZ0	Pulley block	1
C-19	M060HFA4065ZZ0	Bracket	2
C-20	M080HFA4045ZZ0	Cover	1
C-21	M130MAA4021MC0	Belt gripper	2
C-22	M130MAA4020MC0	Belt gripper	2
C-23	M080HFA4011MC0	Block	1
C-24	M080HFA4012ZZ0	Tension block	1
C-25	M080HFA4013ZZ0	Nut	1
C-26	M130MAA4022ZZ0	Plate	2
C-27	PBLTA105008888	Timing belt	2040
C-28	M080HFA4048MC0	Gripper block	1
C-29	M080HFA4016ZZ0	Gripper block	1
C-30	M080HFA4010MC0	Gripper	2
C-31	PAXA3642011088	Cylinder	1
C-32	PAXFEL12380888	Fitting	1
C-33	PAXZSILENCER38	Silencer	1
C-34	M080HFA4026MC0	Block	1
C-35	PAXFKM16X15888	Ploating joint	1
C-36	M080HFA4027ZZ0	Cylinder block	1
C-37	M080HFA4028ZZ0	Nut	1
C-38	M130TCA4007MC0	File	1
C-39	PLMBSHS20VKZ18	LM block	4
C-40	M080HFA4047ZZ0	Bracket	1
C-41	PCVH4501307588	Cableveyor link	32
C-42	PCVE4501300088	Cableveyor end bracket	1
C-43	M080HFA4040ZZ0	Plate	1
C-44	M080HFA4052MC0	Plate	1
C-45	PAXFEC06180888	Fitting	15
C-46	PAXFEST0618088	Fitting	1
C-47	M080HFA4001ZZ0	Plate-A	1
C-48	M080HFA4002ZZ0	Plate-C	1
C-49	M080HFA4003ZZ0	Plate	1
C-50	M080HFA4005ZZ0	Plate-A	1
C-51	M080HFB4035ZZ0	Plate	1
C-52	M080HFA4034ZZ0	Tention shaft	1
C-53	PRESB11515PD20	Reducer	1
C-54	PMTBMSME152GCH	Servo motor	1
C-55	M130HFB2005MC0	Collar	1
C-56	M080HFA4032ZZ0	Timing pulley	1
C-57	PPLMDR13332608	Power lock	1
C-58	M080HFA4050ZZ0	Shaft	2
C-59	M080HFA4015ZZ0	Shaft	4
C-60	M080HFA4033ZZ0	Roller	3
C-61	PBRA6204ZZ8888	Bearing	9
C-62	PRGH047H888888	Snap ring	3
C-63	PRGS020S888888	Snap ring	6
C-64	M080HFA4057ZZ0	Block	1
C-65	M080FFA4030ZZ0	Block	1
C-66	PAXAIDFW32AS20	Cylinder	1
C-67	PAXFEL06180888	Fitting	1
C-68	PAXFESC0618888	Speed controller	1
C-69	PSSRHYP18S5NAF	Sensor	1
C-70	M080HFA4030ZZ0	Belt gripper	1
C-71	M080HFA4031MC0	Belt gripper	1
C-72	M080HFA4041ZZ0	Bracket	1
C-73	PSSMRS52SH8888	Magnet sensor	1
C-74	M080HFA4025ZZ0	Bracket	1
C-75	M080HFA4044ZZ0	Bracket	1
C-76	M080HFA4039MD0	Cover	1
C-77	M080HFA4042MD0	Cover	1
C-78	M080HFA4055ZZ0	Cover plate	1
