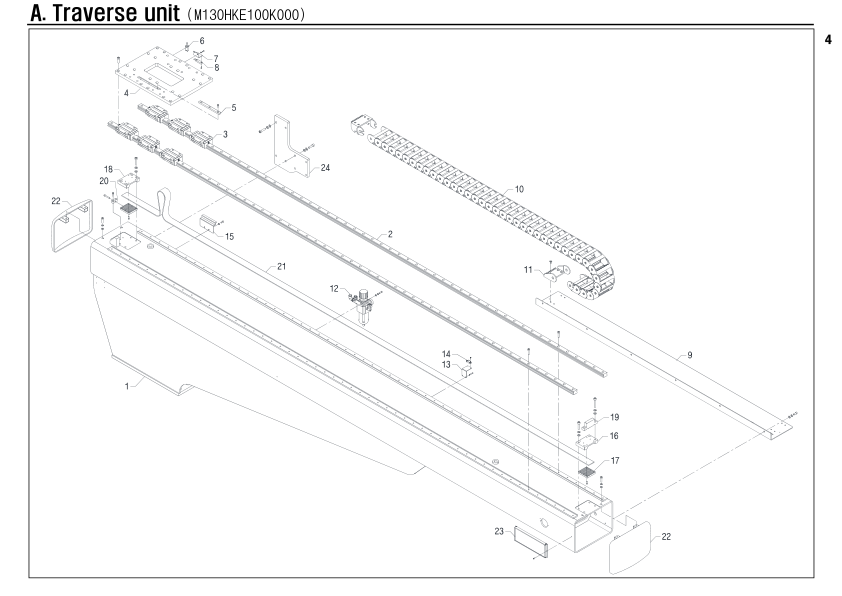

Traverse unit
Unit Number: M130HKE100K000
Robot: NEXIA-E-2000S 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| A-1 | M130HKA1001PW0 | Body | 1 | |
| A-2 | PLMRSHS354200L | LM rail | 2 | |
| A-3 | PLMBSHS35CKZ18 | LM block | 6 | |
| A-4 | M080HFA1012ZZ0 | LM base | 1 | |
| A-5 | M055MAA1013ZB0 | Key | 1 | |
| A-6 | PSSRHYP18S5NAF | Sensor | 1 | |
| A-7 | M015MAB1017MC0 | Bracket | 1 | |
| A-8 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| A-9 | M130HKA1010ZZ0 | Cableveyor plate | 1 | |
| A-10 | PCVH6252B12539 | Cableveyor link | 39 | |
| A-11 | PCVE6252300088 | Cableveyor end bracket | 1 | |
| A-12 | PAXSTAW4000AS5 | Filter regulator | 1 | |
| A-13 | M080HFA1018MC0 | Bracket | 1 | |
| A-14 | PSSMRS52SHC888 | Magnet | 1 | |
| A-15 | M080HFA1007ZZ0 | Bracket | 1 | |
| A-16 | M080HFA1005ZZ0 | Gripper block | 1 | |
| A-17 | M080HFA1002MC0 | Gripper | 2 | |
| A-18 | M080HFA1004ZZ0 | Gripper block | 1 | |
| A-19 | M080HFA1016ZZ0 | Stopper | 1 | |
| A-20 | M055MAA1004NI0 | Tension block | 1 | |
| A-21 | PBLTA1050004620 | Timing belt | 4620 | |
| A-22 | M080HFA1011PW0 | Cover | 2 | |
| A-23 | MXAKAAB1000000 | Counter | 1 | |
| A-24 | MN20TEA1021PW0 | Plate | 1 |
