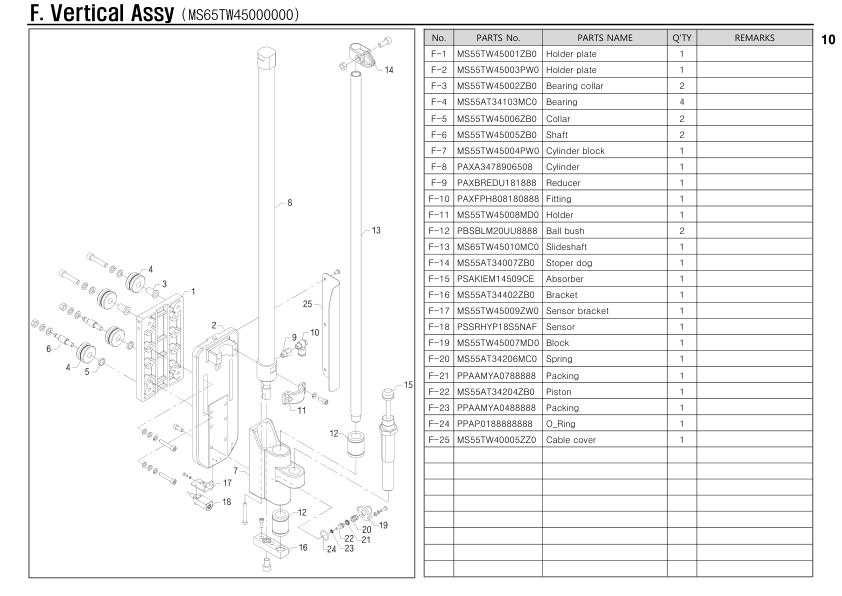

Vertical Assy
Unit Number: MS65TW45000000
Robot: TOPIV-A650 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| F-1 | MS55TW45001ZB0 | Holder plate | 1 | |
| F-2 | MS55TW45003PW0 | Holder plate | 1 | |
| F-3 | MS55TW45002ZB0 | Bearing collar | 2 | |
| F-4 | MS55AT34103MC0 | Bearing | 4 | |
| F-5 | MS55TW45006ZB0 | Collar | 2 | |
| F-6 | MS55TW45005ZB0 | Shaft | 2 | |
| F-7 | MS55TW45004PW0 | Cylinder block | 1 | |
| F-8 | PAXA3478906508 | Cylinder | 1 | |
| F-9 | PAXBREDU181888 | Reducer | 1 | |
| F-10 | PAXFPH808180888 | Fitting | 1 | |
| F-11 | MS55TW45008MD0 | Holder | 1 | |
| F-12 | PBSBLM20UU8888 | Ball bush | 2 | |
| F-13 | MS65TW45010MC0 | Slideshaft | 1 | |
| F-14 | MS55AT34007ZB0 | Stoper dog | 1 | |
| F-15 | PSAKIEM14509CE | Absorber | 1 | |
| F-16 | MS55AT34402ZB0 | Bracket | 1 | |
| F-17 | MS55TW45009ZW0 | Sensor bracket | 1 | |
| F-18 | PSSRHYP18S5NAF | Sensor | 1 | |
| F-19 | MS55TW45007MD0 | Block | 1 | |
| F-20 | MS55AT34206MC0 | Spring | 1 | |
| F-21 | PPAAMYA0788888 | Packing | 1 | |
| F-22 | MS55AT34204ZB0 | Piston | 1 | |
| F-23 | PPAAMYA0488888 | Packing | 1 | |
| F-24 | PPAP0188888888 | O-Ring | 1 | |
| F-25 | MS55TW40005ZZ0 | Cable cover | 1 |
