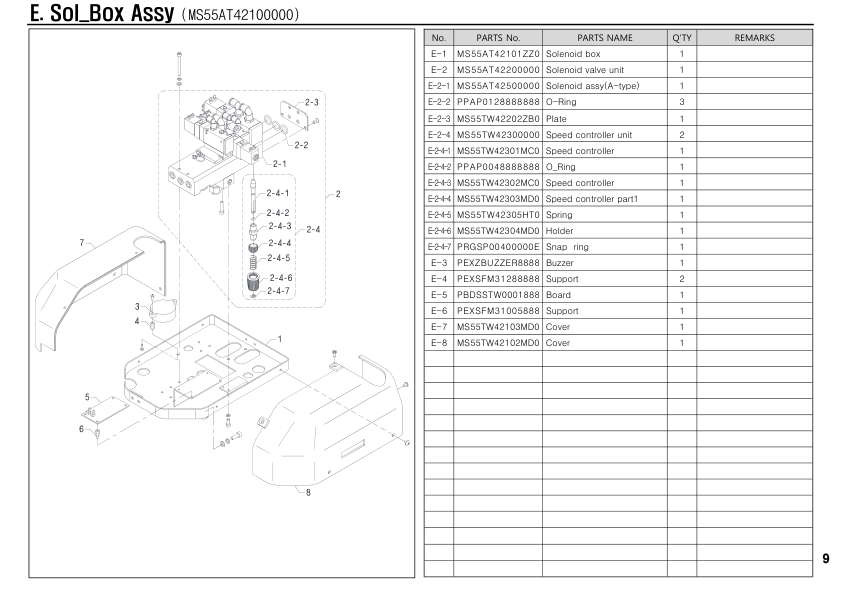

Sol_Box Assy

Unit Number: MS55AT42100000

Robot: TOPIV-A650 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
E-1	MS55AT42101ZZ0	Solenoid box	1
E-2	MS55AT42200000	Solenoid valve unit	1
E-2-1	MS55AT42500000	Solenoid assy(A-type)	1
E-2-2	PPAP0128888888	O-Ring	3
E-2-3	MS55TW42202ZB0	Plate	1
E-2-4	MS55TW42300000	Speed controller unit	2
E-2-4-1	MS55TW42301MC0	Speed controller	1
E-2-4-2	PPAP0048888888	O_Ring	1
E-2-4-3	MS55TW42302MC0	Speed controller	1
E-2-4-4	MS55TW42303MD0	Speed controller part1	1
E-2-4-5	MS55TW42305HT0	Spring	1
E-2-4-6	MS55TW42304MD0	Holder	1
E-2-4-7	PRGSP00400000E	Snap ring	1
E-3 E-4	PEXZBUZZER8888 PEXSFM31288888	Buzzer Support	1 2
E-5	PBDSSTW0001888	Board	1
E-6	PEXSFM31005888	Support	1
E-7	MS55TW42103MD0	Cover	1
E-8	MS55TW42102MD0	Cover	1
