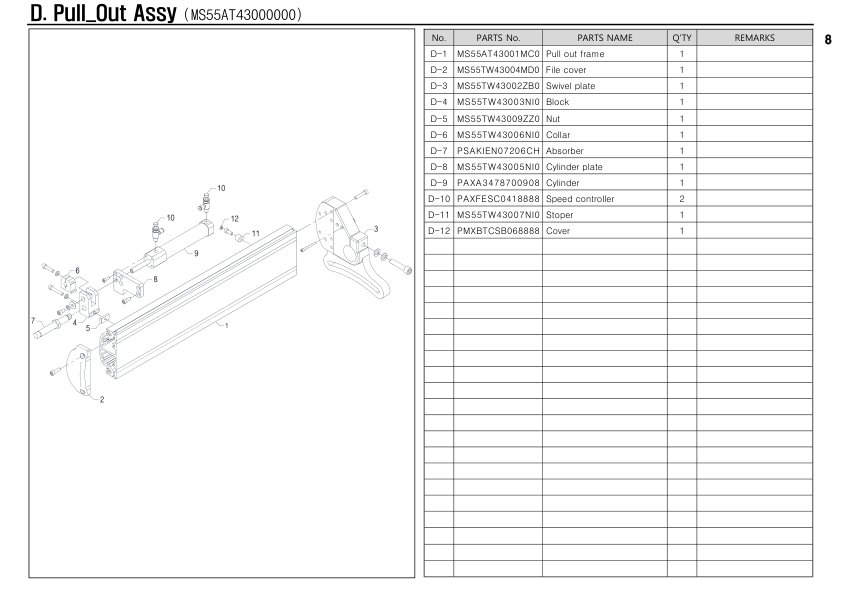

Pull_Out Assy
Unit Number: MS55AT43000000
Robot: TOPIV-A650 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| D-1 | MS55AT43001MC0 | Pull out frame | 1 | |
| D-2 | MS55TW43004MD0 | File cover | 1 | |
| D-3 | MS55TW43002ZB0 | Swivel plate | 1 | |
| D-4 | MS55TW43003NI0 | Block | 1 | |
| D-5 | MS55TW43009ZZ0 | Square nut | 1 | |
| D-6 | MS55TW43006NI0 | Collar | 1 | |
| D-7 | PSAKIEN07206CH | Absorber | 1 | |
| D-8 | MS55TW43005NI0 | Cylinder plate | 1 | |
| D-9 | PAXA3478700908 | Cylinder | 1 | |
| D-10 | PAXFESC0418888 | Speed controller | 2 | |
| D-11 | MS55TW43007NI0 | Stoper | 1 | |
| D-12 | PMXBTCSB068888 | Cover | 1 |
