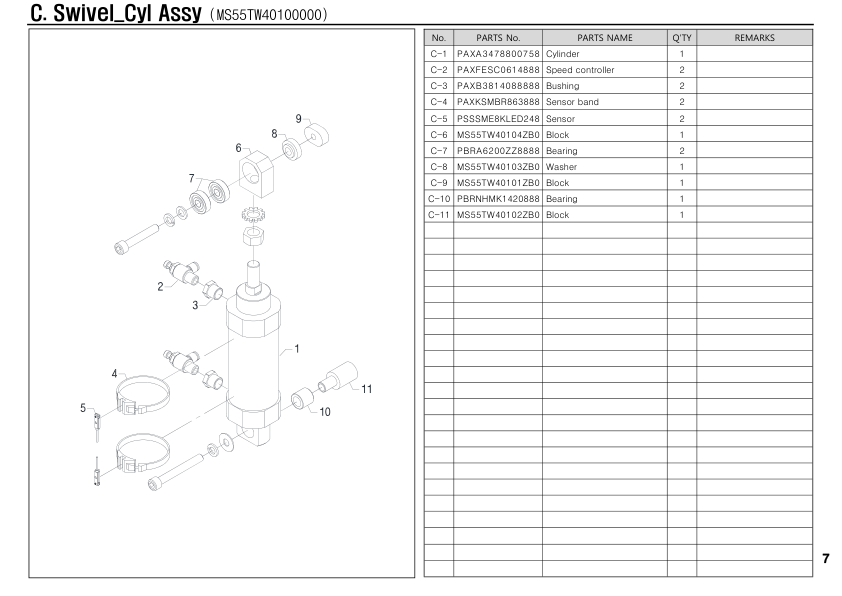

Swivel_Cyl Assy
Unit Number: MS55TW40100000
Robot: TOPIV-A650 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| C-1 | PAXA3478800758 | Cylinder | 1 | |
| C-2 | PAXFESC0614888 | Speed controller | 2 | |
| C-3 | PAXB3814088888 | Bushing | 2 | |
| C-4 | PAXKSMBR863888 | Sensor band | 2 | |
| C-5 | PSSSME8KLED248 | Sensor | 2 | |
| C-6 | MS55TW40104ZB0 | Block | 1 | |
| C-7 | PBRA6200ZZ8888 | Bearing | 2 | |
| C-8 | MS55TW40103ZB0 | Washer | 1 | |
| C-9 | MS55TW40101ZB0 | Block | 1 | |
| C-10 | PBRNHMK1420888 | Bearing | 1 | |
| C-11 | MS55TW40102ZB0 | Block | 1 |
