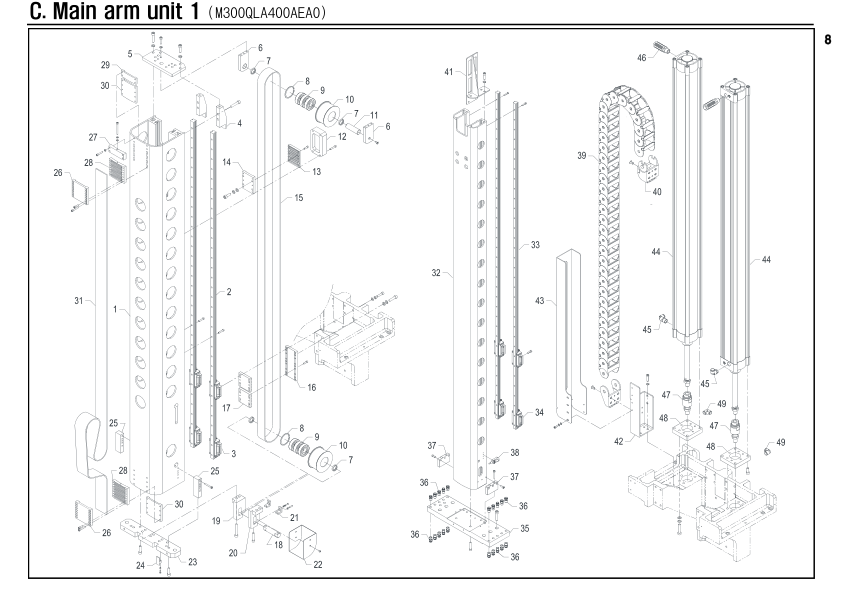

Main arm unit

Unit Number: M300QLA400AEA0

Robot: NEXIA-E-3000S 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
C-1	M300QLA4002MC0	File	1
C-2	PLMRSAH251980L	LM rail	2
C-3	PLMBSAH25EM888	LM block	4
C-4	M200HFA4031ZZ0	Block	2
C-5	M200HFA4004ZZ0	Plate	1
C-6	M200HFA4005ZZ0	Pulley block	2
C-7	M200HFA4039ZZ0	Collar	4
C-8	PRGH062H888888	Snap ring	5
C-9	PBRA6305ZZ8888	Bearing	18
C-10	M200HFA4007ZZ0	Idle roller	2
C-11	M200HFA4006ZZ0	Roller shaft	1
C-12	M200HFA4048MC0	Block	1
C-13	M200HFA4014MC0	Belt gripper	1
C-14	M200HFA4013ZZ0	Belt gripper	1
C-15	PBLTA105008888	Timing belt	4620
C-16	M130MAA4012ZZ0	Belt gripper	1
C-17	M130MAA4014MC0	Belt Gripper	2
C-18	M200HFA4040ZZXA	Roller shaft	1
C-19	M200HFA4010ZZXA	Block	1
C-20	M200HFA4011ZZXA	Block	1
C-21	M130HFA4065ZZXA	Bracket	2
C-22	M200HFA4034ZZ0	Cover	1
C-23	M200HFA4008ZZ1	Plate	1
C-24	M130HFA4040ZZ0	Plate	1
C-25	M250JFS4027ZZ0	Block	2
C-26	M200HFA4021ZZ0	Belt gripper	2
C-27	M200HFA4024ZZ0	Block	1
C-28	M200HFA4020MC0	Belt gripper	2
C-29	M200HFA4023ZZ0	Plate	1
C-30	M200HFA4022ZZ0	Plate	2
C-31	PBLTA107508888	Timing belt	2800
C-32	M300QLA4003MC0	File	1
C-33	PLMRSAH201980L	LM rail	2
C-34	PLMBSAH20EM888	LM block	4
C-35	M300QLA4052ZZ0	Plate	1
C-36	PAXFEC08140888	Fitting	20
C-37	M250QFS4053ZZ0	Block	2
C-38	PSSRHYP18S5NAF	Sensor	1
C-39	PCVH6251B12588	Cableveyor link	34
C-40	PCVE6251300088	Cableveyor end bracket	1
C-41	M200HFA4029ZZXA	Bracket	1
C-42	M200HFA4028ZZ0	Cableveyor bracket	1
C-43	M250JFS4046ZZ0	Plate	1
C-44	PAXADNC1001550	Cylinder	2
C-45	PAXFEL12120888	Fitting	2
C-46	PAXZSILENCER12	Silincer	2
C-47	PAXFKM20X15888	Floating joing	2
C-48	M200HFA4032ZZ0	Block	2
C-49	PAXFAUL1288888	Fitting	2
C-50	M200HFA4001MCXA	Base	1
C-51	M300JFA4015ZZXA	Block	1
C-52	M300JFA4016ZZXA	Block	1
C-53	M250QFS4017ZZ0	Motor block	1
C-54	M250QFS4018ZZ0	Motor block	1
C-55	PBRA6916ZZ8888	Bearing	1
C-56	PPLMMA40628888	Power lock	1
C-57	M200HFA4018ZZXA	Timing pulley	1
C-58	PRESAB14152PD30	Reducer	1
C-59	PMTBMSME302GCH	Servo motor	1
C-60	M130MAA4030ZZ0	Guide shaft	1
C-61	PBRA6000ZZ8888	Bearing	1
C-62	PRGS010S888888	Snap ring	1
C-63	M200HFA4041ZZ0	Shaft	3
C-64	M200HFA4044ZZ0	Roller	3
C-65	M200HFA4042ZZXA	Collar	3
C-66	M300JFA4022ZZ0	Shaft	4
C-67	M200HFA4036ZZXA	Cover	1
C-68	M200HFA4030ZZ0	Block	1
C-69	PAXAIDF32AS25T	Cylinder	1
C-70	PAXFEL06180888	Fitting	1
C-71	M200HFA4045ZZ0	Joint	1
C-72	M250HFA4038ZZ0	Cover	1
C-73	PAXFPMM0888888	Fitting	15
C-74	M200HFA4027ZZ0	Cableveyor bracket	1
C-75	M200HFA4035ZZ0	Cover	1
C-76	M200HFA4053ZZ0	Block	1
C-77	M200HFA4025ZZ0	Cover	1
C-78	M200HFA4037ZZ0	Cover	1
