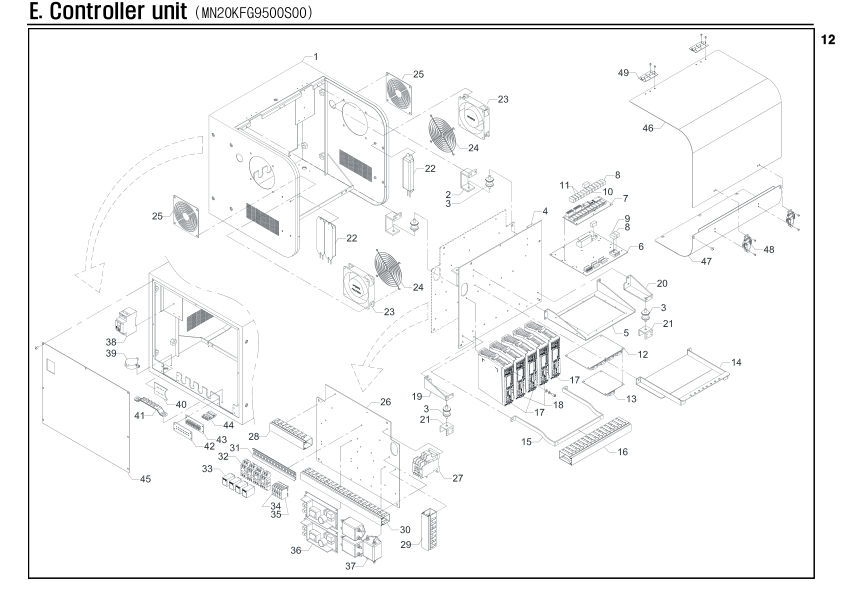

Controller unit

Unit Number: MN20KFG9500S00

Robot: ZEST-300D 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
E-1	MN20KFB9002ZZ0	Body	1
E-2	M020HFA9004ZZ0	Controller bracket	2
E-3	PMXK25M6888888	Antivibration gels	4
E-4	M020KFG9003ZZ0	Plate	1
E-5	MN20KFA9004ZZ0	Plate	1
E-6	PBDDSC88888888	Board	1
E-7	PBDDIL88888888	Board	1
E-8	PRL1174PFDUS24	Relay	12
E-9	PRL2114PUS2488	Relay	1
E-10	PRL2014PUS2488	Relay	1
E-11	PRL2214PUS2488	Relay	2
E-12	PBDDMOTION8888	Board	1
E-13	PBDDVECT1X8888	Board	1
E-14	MN20KFA9028ZZ1	Plate	1
E-15	MN20KFA9009ZZ0	Controller bracket	1
E-16	MN20KFA9026MC0	Duct-30	1
E-17	PMTXDA22411888	S ervo drive	3
E-18	PMTXDA21211888	S ervo drive	2
E-19	M020KFE9005ZZ0	Controller bracket	1
E-20	M020KFE9006ZZ0	Controller bracket	1
E-21	M020HFA9007ZZ0	Controller bracket	2
E-22	PEXRS017W50K88	Regenerative resistor	3
E-23	PEXFSJ1238HA28	Fan	2
E-24	PEXFS105105888	Fan cover	2
E-25	PEXFSJ12COVER8	Fan cover	2
E-26	MN20KFG9010ZZ0	Plate	1
E-27	PNSEGMC1288888	Contactor	1
E-28	MN20KFA9029MC0	Duct-30	1
E-29	MN20KFA9027MC0	Duct-30	1
E-30	MN20KFA9025MC0	Duct-30	1
E-31	M020KFA9020MC0	Terminal channel	1
E-32	PRLKLY28888888	Relay socket	4
E-33	PRLALY2N1DC248	Relay	4
E-34	PTLD0600015288	Terminal	5
E-35	PTLD0600015888	Separator	1
E-36	PSMASMPS000188	SMPS	2
E-37	PFTEDITES1T010	Noise filter	3
E-38	PNSC32KGRC1588	Circuit breaker	1
E-39	ES55TW4610060E	Buzzer cable	1
E-40	M020HFA9032ZZ0	Cover	1
E-41	PEXELEBAR14588	Earth Bar	1
E-42	M020HFA9023MC0	Plate	1
E-43	PBDCLEDVECT888	Board	1
E-44	E020PFA8040060	Cable	1
E-45	MN20KFA9012ZZ0	Cover	1
E-46	MN20KFB9013ZZ0	Cover	1
E-47	MN20KFB9014ZZ0	Cover	1
E-48	PMXBY117888888	Hook	2
E-49	PMXBYHS1560888	Hinge	2
