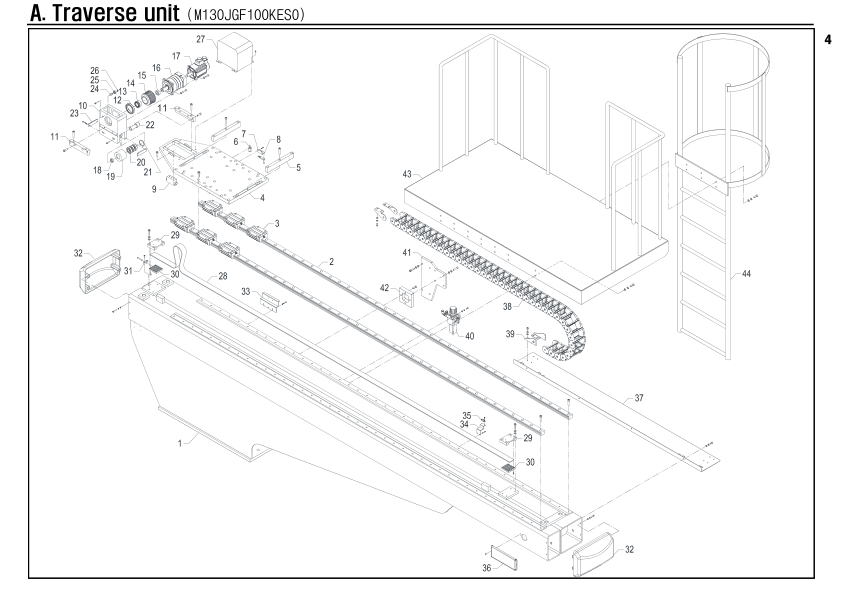

Traverse unit
Unit Number: M130JGF100KES0
Robot: NEXIA-2000S 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| A-1 | M130HGB1001PW0 | Body | 1 | |
| A-2 | PLMRLHS454245L | LM rail | 2 | |
| A-3 | PLMBSHS45CKZ18 | LM block | 6 | |
| A-4 | M130HFA1003ZZ0 | Slide base | 1 | |
| A-5 | M130MAA2018ZZ0 | Guide block | 2 | |
| A-6 | PSSRHYP18S5NAF | Sensor | 1 | |
| A-7 | M015MAB1017MC0 | Bracket | 1 | |
| A-8 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| A-9 | M130HFA1008ZZ0 | Stopper | 1 | |
| A-10 | M130HFB2004MC0 | Motor block | 1 | |
| A-11 | M130HFA1013ZZ0 | Block | 2 | |
| A-12 | PBRA6913ZZ8888 | Bearing | 1 | |
| A-13 | PPLMMA32508888 | Power lock | 1 | |
| A-14 | M130MAA4018ZZ0 | Timing pulley | 1 | |
| A-15 | M130HFB2005MC0 | Collar | 1 | |
| A-16 | PRESB11515PD20 | Reducer | 1 | |
| A-17 | PMTBMSME152GCG | Servo motor | 1 | |
| A-18 | M130MAA4042ZZ0 | Collar | 2 | |
| A-19 | M130MAA4044ZZ0 | Roller | 2 | |
| A-20 | PBRA6205ZZ8888 | Bearing | 6 | |
| A-21 | PRGH052H888888 | Snap ring | 2 | |
| A-22 | M130HFA2005ZZ0 | Idle shaft | 2 | |
| A-23 | M130HFA2031MC0 | Block | 2 | |
| A-24 | M130MAA4030ZZ0 | Guide shaft | 1 | |
| A-25 | PBRA6000ZZ8888 | Bearing | 1 | |
| A-26 | PRGS010S888888 | Snap ring | 1 | |
| A-27 | M130HFA1020ZZ0 | Cover | 1 | |
| A-28 | PBLTA105008888 | Timing belt | 4580 | |
| A-29 | M080HFA1004ZZ0 | Gripper block | 2 | |
| A-30 | M080HFA1002MC0 | Gripper | 2 | |
| A-31 | M055MAA1004NI0 | Tension block | 1 | |
| A-32 | M130HFA1006PW0 | Cover | 2 | |
| A-33 | M200HFA1021ZZ0 | Bracket | 1 | |
| A-34 | M200HFA1022MC0 | Bracket | 1 | |
| A-35 | PSSMRS52SHC888 | Magnet | 1 | |
| A-36 | MXAKAAB1000000 | Counter | 1 | |
| A-37 | M130HGA1010ZZ0 | Cableveyor plate | 1 | |
| A-38 | PCVH070NB10037 | Cableveyor link | 37 | |
| A-39 | PCVE070NB10088 | Cableveyor end bracket | 1 | |
| A-40 | PAXSTAW4000AS5 | Filter regulator | 1 | |
| A-41 | M020HFA1021PW0 | Plate | 1 | |
| A-42 | M130HFA1013PW0 | Spacer | 1 | |
| A-43 | M200JJE1025PW0 | Guide rail | 1 | |
| A-44 | M200JJE1012PW0 | Ladder | 1 |
