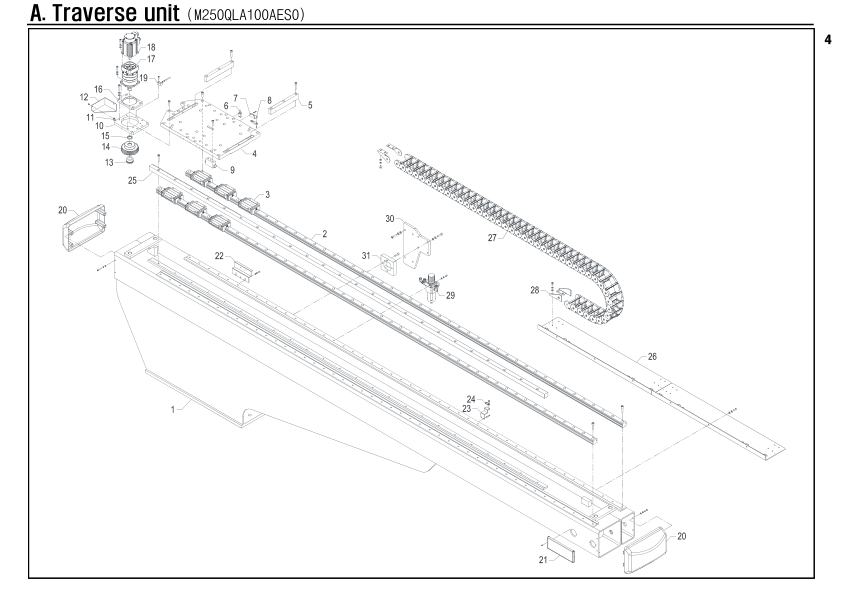

Traverse unit
Unit Number: M250QLA100AES0
Robot: NEXIA-E-2500S 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| A-1 | M250QLA1001PW0 | Body | 1 | |
| A-2 | PLMRSAH454770L | LM rail | 2 | |
| A-3 | PLMBSAH45EM888 | LM block | 6 | |
| A-4 | M250QLA1003ZZ0 | Slide base | 1 | |
| A-5 | M130MAA2018ZZ0 | Guide block | 2 | |
| A-6 | PSSRHYP18S5NAF | Sensor | 1 | |
| A-7 | M015MAB1017MC0 | Bracket | 1 | |
| A-8 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| A-9 | M130HFA1008ZZ0 | Stopper | 1 | |
| A-10 | M250QLA1007ZZ0 | Plate | 1 | |
| A-11 | PAXFEL06180888 | Fitting | 1 | |
| A-12 | M250QLA1012ZZ0 | Cover | 1 | |
| A-13 | PPLMMA32508888 | Power lock | 1 | |
| A-14 | M200ULS1008ZZ0 | Helical gear | 1 | |
| A-15 | M130HFB2005MC2 | Collar | 1 | |
| A-16 | M200ULS1010ZZXA | Plate | 1 | |
| A-17 | PRESB11515PD20 | Reducer | 1 | |
| A-18 | PMTBMSME152GCG | Servo motor | 1 | |
| A-19 | M200JPB1012ZZ0 | PLATE | 1 | |
| A-20 | M130HFA1006PW0 | Cover | 2 | |
| A-21 | MXAKAAB1000000 | Counter | 1 | |
| A-22 | M200HFA1021ZZ0 | Bracket | 1 | |
| A-23 | M200HFA1022MC0 | Bracket | 1 | |
| A-24 | PSSMRS52SHC888 | Magnet | 1 | |
| A-25 | M200ULB1050ZZ0 | Helical_Rack | 1 | |
| A-26 | M250QLA1010ZZ0 | Cableveyor plate | 2 | |
| A-27 | PCVH070NB10088 | Cableveyor link | 43 | |
| A-28 | PCVE070NB10088 | Cableveyor end bracket | 1 | |
| A-29 | PAXSTAW4000AS5 | Filter regulator | 1 | |
| A-30 | M020HFA1021PW0 | Plate | 1 | |
| A-31 | M130HFA1013PW0 | Spacer | 1 |
