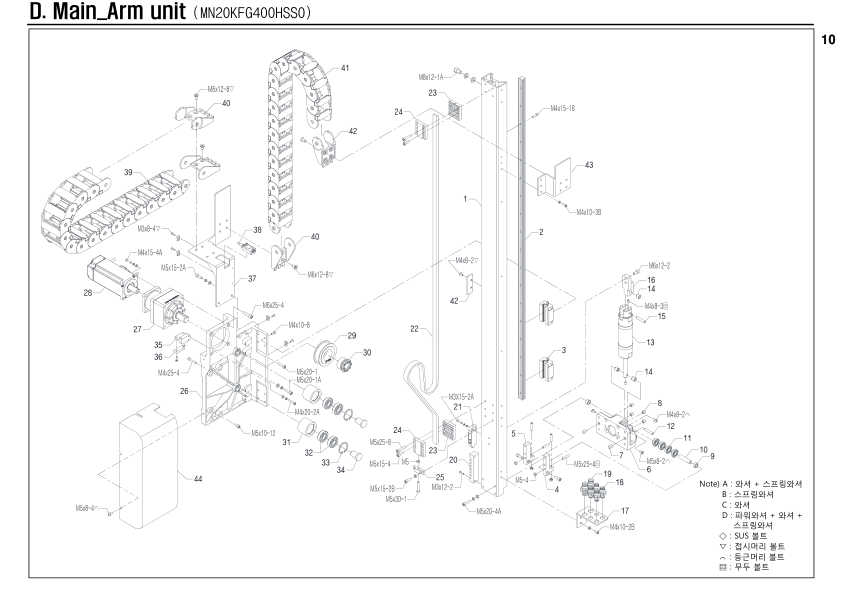

Main_Arm unit
Unit Number: MN20BEF400T001
Robot: ZEST-200D ๐
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| D-1 | MN20KFG4002MC0 | File | 1 | |
| D-2 | PMLREGR15R1070 | LM rail | 1 | STAR EGR15-R1070(20/30) |
| D-3 | PLMBQEH15CA888 | LM block | 2 | HIWIN QEH15CA |
| D-4 | MN20DAA5003ZB0 | Plate fix block | 1 | |
| D-5 | MN20DAA5004ZB0 | Plate fix block | 1 | |
| D-6 | MN20KFG4003MC0 | Plate | 1 | |
| D-7 | M035HAA5012ZZ0 | Pin | 2 | |
| D-8 | MN20KFG4047ZZ0 | Pin | 4 | |
| D-9 | MN20KFG4006ZZ0 | Collar | 2 | |
| D-10 | MN20KFG4007ZZ0 | Pin | 1 | |
| D-11 | PBRA6900ZZ8888 | Bearing | 4 | 6900ZZ |
| D-12 | PMXPSFJ6328888 | Shaft | 1 | MISUMI PSFJ6-32-FC6-A13 |
| D-13 | PAXA0082320588 | Cylinder | 1 | A6061 ๋ฐฑ์A/D |
| D-14 | PBRNFJ69ZZ8888 | Roller bearing | 3 | FJ-69 |
| D-15 | M035HAA5009MC0 | Pin | 1 | |
| D-16 | MN20KFG4043ZZ0 | Bracket | 1 | |
| D-17 | MN20KFG4046ZZ0 | Bracket | 1 | |
| D-18 | PAXFEPC0404088 | Fitting | 4 | NITTAMOORE EPC4 |
| D-19 | PAXFPMM0688888 | Fitting | 2 | SANG_A PMM-06 |
| D-20 | PTLA07P8888888 | Terminal | 1 | 7P๋จ์๋ |
| D-21 | PAXVPS6102VNAM | Sensor | 1 | MPS-V9M-NCA |
| D-22 | PBLTU8M1588888 | Timing belt | 1440 | P8M-15-1440L |
| D-23 | MN20KFG4033MC0 | Belt gripper | 2 | |
| D-24 | MN20KFG4016ZZ0 | Gripper block | 2 | |
| D-25 | MN20KFG4044ZZ0 | Tension block | 1 | |
| D-26 | MN20KFG4001MC0 | LM bracket | 1 | |
| D-27 | PRESSF5CPB0488 | Reducer | 1 | VRSF-5C-MSMD04 |
| D-28 | PMTBMA401A2TN6 | Servo motor | 1 | MA401A2TN06(400W-B) SANKYO |
| D-29 | MN08KFA4012ZZ0 | Timing pulley | 1 | |
| D-30 | PPLMMA19338888 | Power lock | 1 | MA19-33 |
| D-31 | M015MAB3011ZZ0 | Roller | 2 | |
| D-32 | PBRA6002ZZ8888 | Bearing | 4 | 6002ZZ |
| D-33 | PRGH032H888888 | Snap ring | 2 | H32 |
| D-34 | MN20KFG3035ZZ0 | Bearing holder | 2 | |
| D-35 | MN20KFG4041ZZ0 | Bracket | 1 | |
| D-36 | PSSMRS1SH88888 | Sensor | 1 | |
| D-37 | MN20KFG4034ZZ0 | Cableveyor fixed bracket | 1 | |
| D-38 | PSSRHYP18S5NAF | Sensor | 1 | HYP-18S5NAF |
| D-39 | PCVH4502307588 | Cableveyor link | 16 | HSP0450-2BN-95R-16L |
| D-40 | PCVE4502300088 | Cableveyor end bracket | 1 | HSP0450-2BN-END |
| D-41 | PCVH4501B07588 | Cableveyor link | 17 | HSP0450-1BN-75R-17L |
| D-42 | PCVE4501300088 | Cableveyor end bracket | 1 | HSP0450-1BN-END |
| D-43 | MN20KFG4023ZZ0 | Cableveyor bracket | 1 | |
| D-44 | MN20KFG4039ZZ0 | Bracket | 1 | |
| D-45 | MN20KFG4042ZZ0 | Cover | 1 |
