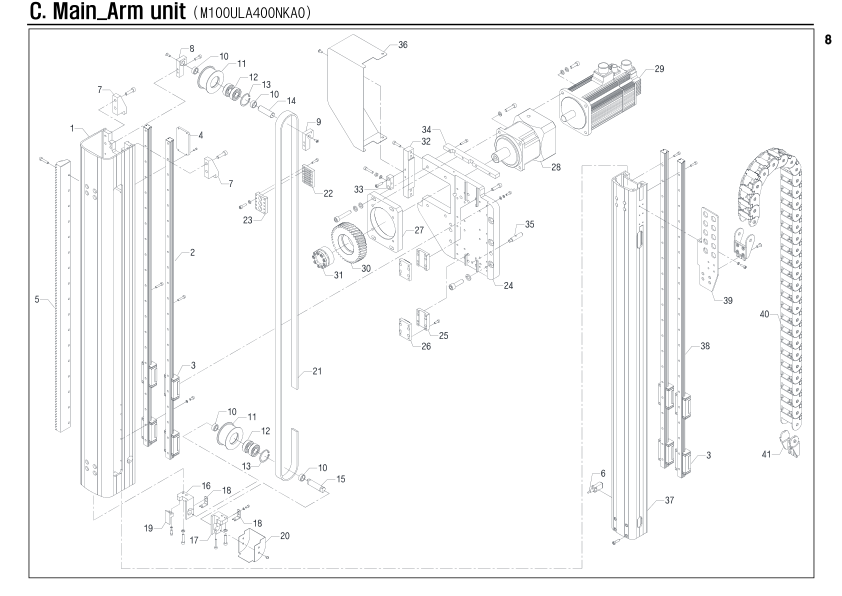

Main_Arm unit

Unit Number: M100ULA400NKA0

Robot: NEXIA-1000SW(KEBA) 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
C-1	M100ULA4006MC0	File	1
C-2	PLMRSAH201230L	LM rail	2
C-3	PLMBSAH20AN888	LM block	8
C-4	M060HFA4048ZZ0	Gripper block	1
C-5	M100ULA4020MC0	Helical rack	1
C-6	PSSRHYP18S5NAF	Sensor	1
C-7	M080ULA4056ZZ0	Block	2
C-8	M060HFA4020ZZ0	Bearing block	1
C-9	M060HFA4019ZZ0	Bearing block	1
C-10	M060HFA4036ZZ0	Collar	4
C-11	M060HFA4025ZZ0	Roller	2
C-12	PBRA6203ZZ8888	Bearing	4
C-13	PRGH040H888888	Snap ring	2
C-14	M060HFA4021ZZ0	Shaft	1
C-15	M060HFA4024ZZ0	Shaft	1
C-16	M080ULA4011ZZ0	Pulley block	1
C-17	M060HFA4023ZZ0	Pulley block	1
C-18	M060HFA4065ZZ0	Bracket	2
C-19	M250ULA4040ZZ0	Plate	1
C-20	M060HFA4045ZZ0	Cover	1
C-21	PBLTU8M2588888	Timing belt	2752
C-22	M080ULA4014MC0	Gripper	1
C-23	M080ULA4017ZZ0	Gripper block	1
C-24	M130VLS4001ZZ0	Plate C	1
C-25	M080ULA4012ZZ0	Belt gripper	2
C-26	M080ULA4046MC0	Gripper	2
C-27	M130VLS4017ZZ0	Plate	1
C-28	PRESAB15102KG20	Reducer	1
C-29	PMTBEMJ20APA24	Servo motor	1
C-30	M130VLS4018ZZ0	Helical gear	1
C-31	PPLMDR132A3260	Power lock	1
C-32	M130VLS4002ZZ0	Plate	1
C-33	M250ULA4013ZZ0	Block	1
C-34	M130VLS4022ZZ0	Block	1
C-35	M080ULA4025ZZ0	Bar	1
C-36	M130VLS4036ZZ0	Cover	1
C-37	M080ULS4007MC0	File	1
C-38	PLMRSAH201220L	LM rail	2
C-39	M130VLS4047ZZ0	Cableveyor Bracket	1
C-40	PCVH4501B09588	Cableveyor link	30
C-41	PCVE4501300088	Cableveyor end bracket	1
