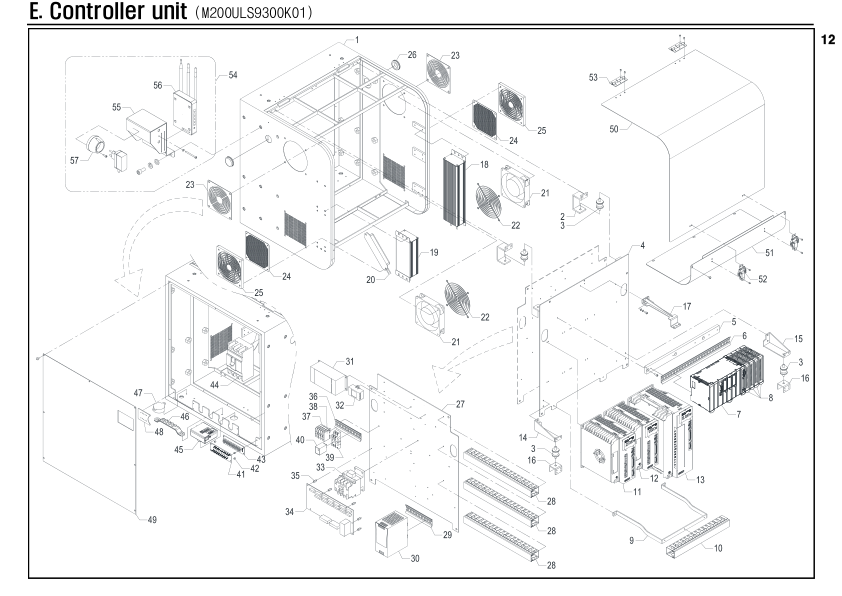

Controller unit

Unit Number: M200ULS9300K01

Robot: EPIK-E-2500SW 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
E-1	M200ULS9002ZZXA	Box	1
E-2	M020HFA9004ZZ0	Controller bracket	2
E-3	PMXK25M6888888	Antivibration gels	4
E-4	M200ULS9003ZZ1	Plate	1
E-5	M080JPE9020ZZ0	Base	1
E-6	M020KKA9020MC1	Terminal channel	1
E-7	PBDKBCPUCP232Z	CPU set(Central processor module)	1
E-8	PBDIOMODDM276A	I/O modules	4
E-9	M030SBA9009ZZ0	Controller bracket	1
E-10	M030SBA9026MC0	Duct-30	1
E-11	PMTXPNE20A8888	Servo drive	1
E-12	PMTXPNE15A8888	Servo drive	1
E-13	PMTXPNE50A8888	Servo drive	1
E-14	M020KFE9005ZZ0	Controller bracket	1
E-15	M020KFE9006ZZ0	Controller bracket	1
E-16	M020HFA9007ZZ0	Controller bracket	2
E-17	M080JPE9015ZZ0	Controller bracket	1
E-18	PEXRS800W10K88	Regenerative resistor	1
E-19	PEXRS300W25K88	Regenerative resistor	1
E-20	PEXRS040W30K88	Regenerative resistor	1
E-21	PEXFSJ1238HA28	Fan	2
E-22	PEXFS105105888	Fan cover	2
E-23	PEXFSJ12COVER8	Fan cover	2
E-24	PEXFFILTER120S	Fan filter	2
E-25	PEXFFILTER102F	Fan filter	2
E-26	PMXCAPRUBPAK30	Cap	2
E-27	M200ULS9010ZZ1	Plate	1	PRO-ECO-240W-24V-10A
E-28	M020KKA9025MC2	Duct-30	3	동일기연,ES1-T10
E-29	M020KKA9021MC1	Terminal channel	1	LS산전,동광계전 MC-32b
E-30	PSMPPRO1202405	Power supply	1
E-31	PFTEWYFT20T1A8	Noise filter	1
E-32	PFTEWYFS03TM88	Noise filter	1	KACON,KLY2
E-33	PNSEGMC3288888	Contactor	1
E-34	PBDINTKEBAV201	Board	1
E-35	PEXSFM31005888	Support	7
E-36	M020KKA9026MC0	Terminal channel	1
E-37	PTLD0600015288	Terminal	5
E-38	PTLD0600015888	Separator	1
E-39	PRLKLY28888888	Relay socket	1
E-40	PRLALY2N1DC248	Relay	1
E-41	M020KKA9023MC0	Plate	1
E-42	PEXSFM30588888	Support	4
E-43	PBDCLEDKEBA888	Board	1
E-44	PNSCABS33B2088	Circuit breake	1
E-45	PEXJTBOXJB001A	Ketop handheld terminals	1
E-46	PEXELEBAR14588	Earth Bar	1
E-47	ES55TW4610060E	Buzzer cable	1
E-48	M020KKA9032ZZ0	Cover	1
E-49	M200ULS9012ZZ1	Cover	1
E-50	M200ULS9013ZZ1	Cover	1
E-51	M030SBB9014ZZ1	Cover	1
E-52	PMXBY117888888	Hook	2
E-53	PMXBYHS1560888	Hinge	2
E-54	MXCTKB70000000	Board	1
E-55	M020KFG7003ZZ1	Cover	1
E-56	PNN704BCM88888	Access point	1
E-57	PN1HCON8888888	Concent	1
