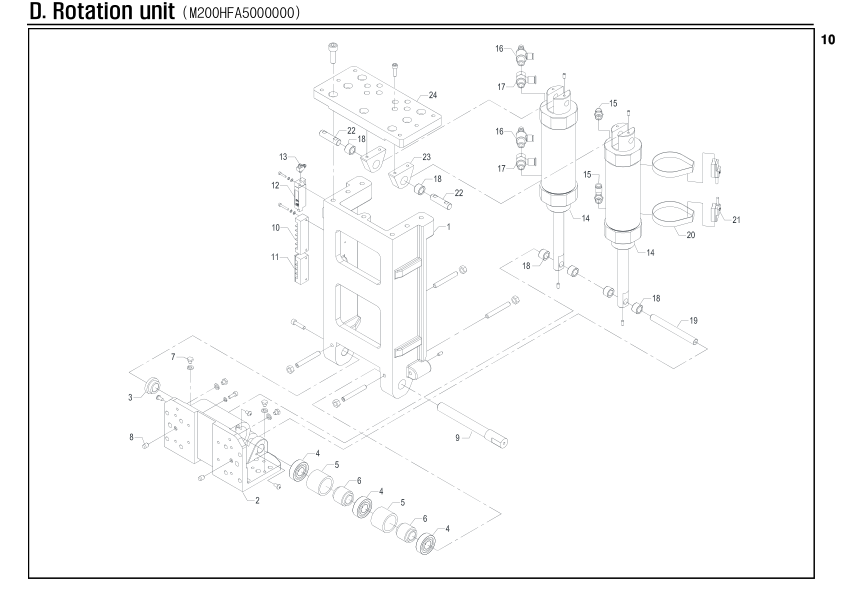

Rotation unit
Unit Number: M200HFA5000000
Robot: EPIK-E-2500SW 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| D-1 | M200HFA5002PW0 | Block | 1 | |
| D-2 | M200HFA5003ZZ0 | Plate | 1 | |
| D-3 | M130HFA5006ZZ0 | Collar | 1 | |
| D-4 | PBRA6203ZZ8888 | Bearing | 3 | |
| D-5 | M200HFA5010ZZ0 | Collar | 2 | |
| D-6 | M200HFA5011ZZ0 | Collar | 2 | |
| D-7 | M040HFA5025ZZ0 | Bolt | 4 | |
| D-8 | M035HAA5012ZZ0 | Pin | 2 | |
| D-9 | M200HFA5004ZZ0 | Rotate pin | 1 | |
| D-10 | PTLA06P8888888 | Terminal | 1 | |
| D-11 | PTLA04P8888888 | Terminal | 1 | |
| D-12 | PAXVPS6102VNAM | Sensor | 1 | |
| D-13 | PAXFBUVLM56888 | Nipple | 1 | |
| D-14 | PAXA3593301188 | Cylinder | 2 | |
| D-15 | PAXFEL08140888 | Fitting | 2 | |
| D-16 | PAXFESC0814088 | Speed controller | 2 | |
| D-17 | PAXFPHF0814888 | Fitting | 2 | |
| D-18 | PBRNFJH1212ZZ8 | Roller bearing | 6 | |
| D-19 | M200HFA5009ZZ0 | Linear shaft | 1 | |
| D-20 | PSSO80BAND8888 | Sensor band | 2 | |
| D-21 | PSSOROSW888888 | Sensor | 2 | |
| D-22 | PMXPSFJ1247888 | Linear shaft | 2 | |
| D-23 | M200HFA5012ZZ0 | Joint | 2 | |
| D-24 | M200HFA5001ZZ0 | Base | 1 |
