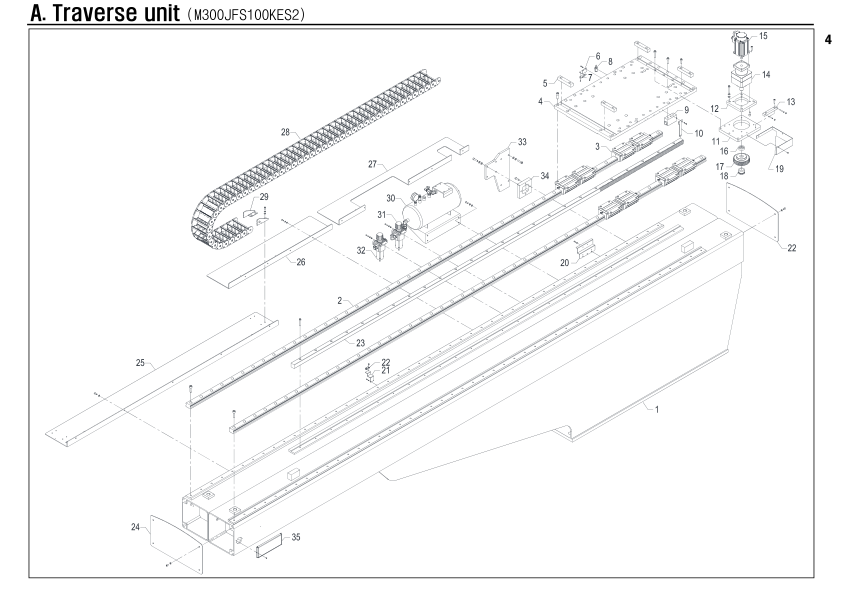

Traverse unit
Unit Number: M300JFS100KES2
Robot: NEXIA-3000S 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| A-1 | M300JFS1001PW2 | Frame | 1 | |
| A-2 | PLMRSHS555460L | LM rail | 2 | |
| A-3 | PLMBSHS55CKZ18 | LM block | 8 | |
| A-4 | M300JFA1003ZZ0 | Slide base | 1 | |
| A-5 | M300JFA2002ZZ0 | Block | 4 | |
| A-6 | M200HFA1018MC0 | Bracket | 1 | |
| A-7 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| A-8 | PSSRHYP18S5NAF | Sensor | 1 | |
| A-9 | M200HFA1008ZZ0 | Stopper | 1 | |
| A-10 | M300JFS1053ZZ0 | Arrow plate | 1 | |
| A-11 | M300JFA1007ZZ0 | Plate | 1 | |
| A-12 | M300JFA1004ZZ0 | Plate | 1 | |
| A-13 | M200TLA1012ZZ0 | Plate | 1 | |
| A-14 | PRESSF15EPD208 | Reducer | 1 | |
| A-15 | PMTBMSME202GCG | Servo motor | 1 | |
| A-16 | M300JFA1005ZZ0 | Plate | 1 | |
| A-17 | M300JFA1008ZZ0 | Helical gear | 1 | |
| A-18 | PPLMMA32508888 | Power lock | 1 | |
| A-19 | M300JFA1010ZZ0 | Cover | 1 | |
| A-20 | M200HFA1021ZZ0 | Bracket | 1 | |
| A-21 | M200HFA1022MC0 | Bracket | 1 | |
| A-22 | PSSMRS52SHC888 | Magnet | 1 | |
| A-23 | M300JFS1050ZZ0 | Helical rack | 1 | |
| A-24 | M300JFA1011ZZ0 | Cover | 2 | |
| A-25 | M200GGA1007ZZ0 | Cableveyor plate | 1 | |
| A-26 | M300JFS1052ZZ0 | Cableveyor plate | 1 | |
| A-27 | M300JFS1051ZZ0 | Cableveyor plate | 1 | |
| A-28 | PCVH070NB15088 | Cableveyor link | 48 | |
| A-29 | PCVE070NB15088 | Cableveyor end bracket | 1 | |
| A-30 | M250EJE1100000 | Air tank | 1 | |
| A-31 | PAXSTAW4000AS8 | Filter regulator | 1 | |
| A-32 | PAXSTAW4000A10 | Filter regulator | 1 | |
| A-33 | M020HFA1021PW0 | Plate | 1 | |
| A-34 | M130HFA1013PW0 | Spacer | 1 | |
| A-35 | MXAKAAB1000000 | Counter | 1 |
