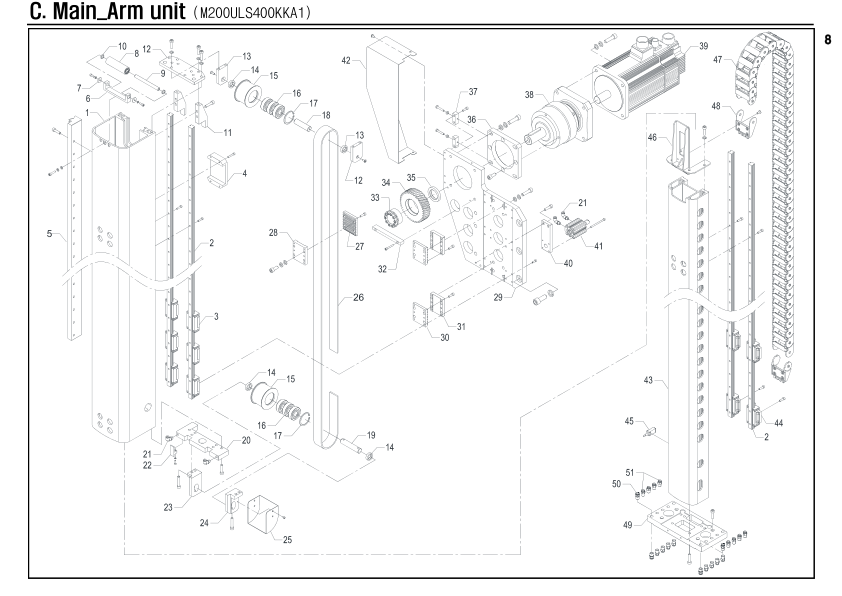

Main_Arm unit

Unit Number: M200ULS400KKA1

Robot: EPIK-E-2500SW 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
C-1	M200ULS4002MCXA	File	1
C-2	PLMRSHS201780L	LM rail	4
C-3	PLMBSHS20VKZ18	LM block	6
C-4	M130HFA4048MC0	Gripper block	1
C-5	M200ULS4020ZZ0	Helical rack	1
C-6	M200ULS4056ZZ0	Roller block	1
C-7	M080HFB6013ZZ0	Collar	2
C-8	PBRORLA3012100	Roller	1
C-9	M200ULS4057ZZ0	Pin	1
C-10	MS55TW45006ZB0	Collar	2
C-11	M130HFA4031ZZ0	Block	2
C-12	M200ULA4004ZZ0	Plate	1
C-13	M130MAA4005ZZ0	Pulley block	2
C-14	M130HFA4039ZZ0	Collar	4
C-15	M130HFA4007ZZ0	Idle roller	2
C-16	PBRA6304ZZ8888	Bearing	6
C-17	PRGH052H888888	Snap ring	2
C-18	M130HFA4006ZZ0	Roller shaft	1
C-19	M130HFA4026ZZ0	Roller shaft	1
C-20	M200ULA4008ZZ0	Plate	1
C-21	PAXFEL06180888	Fitting	4
C-22	M130HFA4040ZZ0	Plate	1
C-23	M130MAA4010ZZ0	Block	1
C-24	M130MAA4011ZZ0	Block	1
C-25	M130MAA4033ZZ0	Pulley cover	1
C-26	PBLTU8M4088882	Timing belt	3912
C-27	M200ULA4015MC0	Gripper	1
C-28	M200ULA4013ZZ0	Belt gripper	1
C-29	M200ULS4001MC1	Plate	1
C-30	M200ULA4014MC0	Gripper	2
C-31	M200ULA4012ZZ0	Belt Gripper	2
C-32	M200ULA4022ZZ0	Block	1
C-33	PPLMMA40628888	Power lock	1
C-34	M200ULA4018ZZ0	Helical gear	1
C-35	M200ULA4042ZZ0	Plate	1
C-36	M200ULS4017ZZ0	Plate	1
C-37	M250ULA4013ZZ0	Block	2
C-38	PRESAE15102KG50	Reducer	1
C-39	PMTBEMJ50APA24	Servo motor	1
C-40	M200ULA4030ZZ0	Block	1
C-41	PAXAIDFW32AS25	Cylinder	1
C-42	M200ULA4036ZZ0	Cover	1
C-43	M200ULS4003MCXA	File	1
C-44	PLMBSHS20CKZ18	LM block	4
C-45	PSSRHYP18S5NAF	Sensor	1
C-46	M200ULS4029ZZ0	Bracket	1
C-47	PCVH4502309588	Cableveyor link	44
C-48	PCVE4502300088	Cableveyor end bracket	1
C-49	M200ULS4026ZZXA	Plate	1
C-50	PAXFEC08140888	Fitting	4
C-51	PAXFEC06140888	Fitting	16
