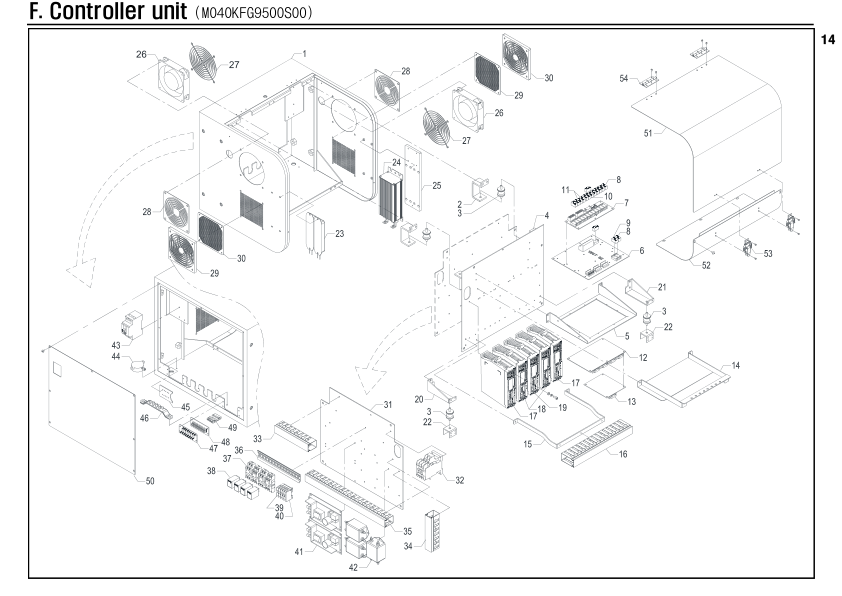

Controller unit

Unit Number: M040KFG9500S00

Robot: ZEST-600D 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
F-1	MN20KFB9002ZZ0	Body	1
F-2	M020HFA9004ZZ0	Controller bracket	2
F-3	PMXK25M6888888	Antivibration gels	4
F-4	M020KFG9003ZZ0	Plate	1
F-5	MN20KFA9004ZZ0	Plate	1
F-6	PBDDSC88888888	Board	1
F-7	PBDDIL88888888	Board	1
F-8	PRL1174PFDUS242	Relay	12
F-9	PRL2114PUS2488	Relay	1
F-10	PRL2014PUS2488	Relay	1
F-11	PRL2214PUS2488	Relay	2
F-12	PBDDMOTION8888	Board	1
F-13	PBDDVECT1X8888	Board	1
F-14	MN20KFA9028ZZ1	Plate	1
F-15	MN20KFA9009ZZ0	Controller bracket	1
F-16	MN20KFA9026MC0	Duct-30	1
F-17	PMTXDA22411888	S ervo drive	2
F-18	PMTXDA21211888	S ervo drive	2
F-19	PMTXDA23811888	S ervo drive	1
F-20	M020KFE9005ZZ0	Controller bracket	1
F-21	M020KFE9006ZZ0	Controller bracket	1
F-22	M020HFA9007ZZ0	Controller bracket	2
F-23	PEXRS017W50K88	Regenerative resistor	2
F-24	PEXRS300W25K88	Regenerative resistor	1
F-25	M020KKA9033ZZ0	Plate	1
F-26	PEXFSJ1238HA28	Fan	2
F-27	PEXFS105105888	Fan cover	2
F-28	PEXFSJ12COVER8	Fan cover	2
F-29	PEXFFILTER120S	Fan filter	2
F-30	PEXFFILTER102F	Fan filter	2
F-31	MN20KFG9010ZZ0	Plate	1
F-32	PNSEGMC2288888	Contactor	1
F-33	MN20KFA9029MC0	Duct-30	1
F-34	MN20KFA9027MC0	Duct-30	1
F-35	MN20KFA9025MC0	Duct-30	1
F-36	M020KFA9020MC0	Terminal channel	1
F-37	PRLKLY28888888	Relay socket	4
F-38	PRLALY2N1DC248	Relay	4
F-39	PTLD0600015288	Terminal	5
F-40	PTLD0600015888	Separator	1
F-41	PSMASMPS000188	SMPS	2
F-42	PFTEDITES1T010	Noise filter	3
F-43	PNSC32KGRC1588	Circuit breaker	1
F-44	ES55TW4610060E	Buzzer cable	1
F-45	M020HFA9032ZZ0	Cover	1
F-46	PEXELEBAR14588	Earth Bar	1
F-47	M020HFA9023MC0	Plate	1
F-48	PBDCLEDVECT888	Board	1
F-49	E020PFA8040060	Cable	1
F-50	MN20KFA9012ZZ0	Cover	1
F-51	MN20KFB9013ZZ0	Cover	1
F-52	MN20KFB9014ZZ0	Cover	1
F-53	PMXBY117888888	Hook	2
F-54	PMXBYHS1560888	Hinge	2
