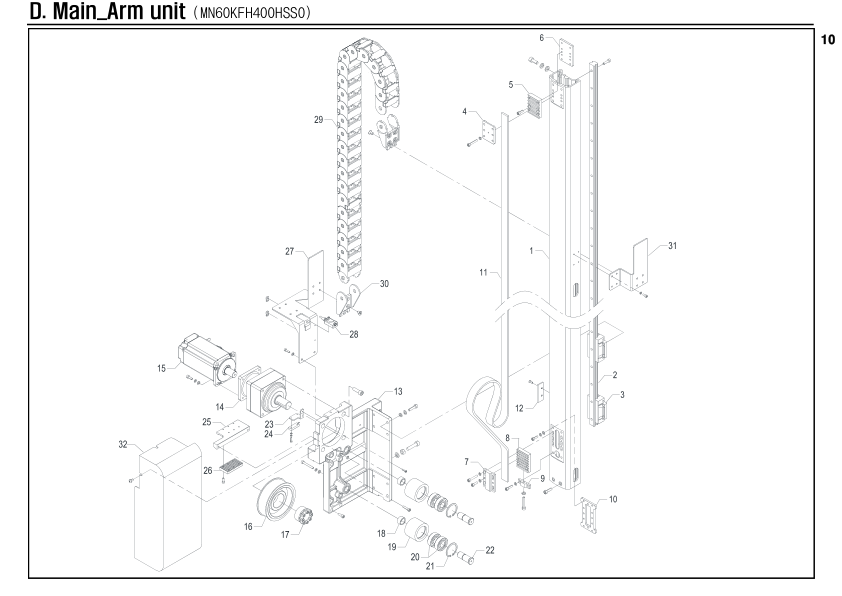

Main_Arm unit
Unit Number: MN60KFH400HSS0
Robot: ZEST-600D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| D-1 | MN60KFH4007MC0 | File | 1 | |
| D-2 | PMLRHGR20R1720 | LM rail | 1 | |
| D-3 | PLMBQHW20CC888 | LM block | 2 | |
| D-4 | M035HAA4017ZZ0 | Gripper block | 1 | |
| D-5 | M035HAA4014MC0 | Belt gripper | 1 | |
| D-6 | M035HAA4010ZZ0 | Gripper nut | 1 | |
| D-7 | MN60KFH4015ZZ0 | Gripper block | 1 | |
| D-8 | MN60KFH4005MC0 | Belt gripper | 1 | |
| D-9 | MN60KFH4044ZZ0 | Tension block | 1 | |
| D-10 | MN60KFH4010ZZ0 | Gripper nut | 1 | |
| D-11 | PBLTU8M2588888 | Timing belt | 2240 | |
| D-12 | MN20KFG4039ZZ0 | Bracket | 1 | |
| D-13 | MN60KFH4001MC0 | Plate | 1 | |
| D-14 | PRESSFS9DPB088 | Reducer | 1 | |
| D-15 | PMTBMA751A2TN6 | Servo motor | 1 | |
| D-16 | MN60KFH4012ZZ0 | Timing pulley | 1 | |
| D-17 | PPLMMA24428888 | Power lock | 1 | |
| D-18 | MN60KFH4036ZZ0 | Collar | 2 | |
| D-19 | M035HAA4011ZZ0 | Roller | 2 | |
| D-20 | PBRA6203ZZ8888 | Bearing | 4 | |
| D-21 | PRGH040H888888 | Snap ring | 2 | |
| D-22 | M080HRE4009ZZ0 | Shaft | 2 | |
| D-23 | M040KJG4040ZZ0 | Bracket | 1 | |
| D-24 | PSSMRS1SH88888 | Sensor | 1 | |
| D-25 | MN60KFH4032ZZ0 | Belt plate | 1 | |
| D-26 | MN20KFG2031MC0 | Belt gripper | 1 | |
| D-27 | MN60KFH4034ZZ0 | Cableveyor fixed bracket | 1 | |
| D-28 | PSSRHYP18S5NAF | Sensor | 1 | |
| D-29 | PCVH4501B07588 | Cableveyor link | 24 | |
| D-30 | PCVE4501300088 | Cableveyor end bracket | 1 | |
| D-31 | MN60KFH4023ZZ0 | Bracket | 1 | |
| D-32 | MN60KFH4042ZZ0 | Cover | 1 |
